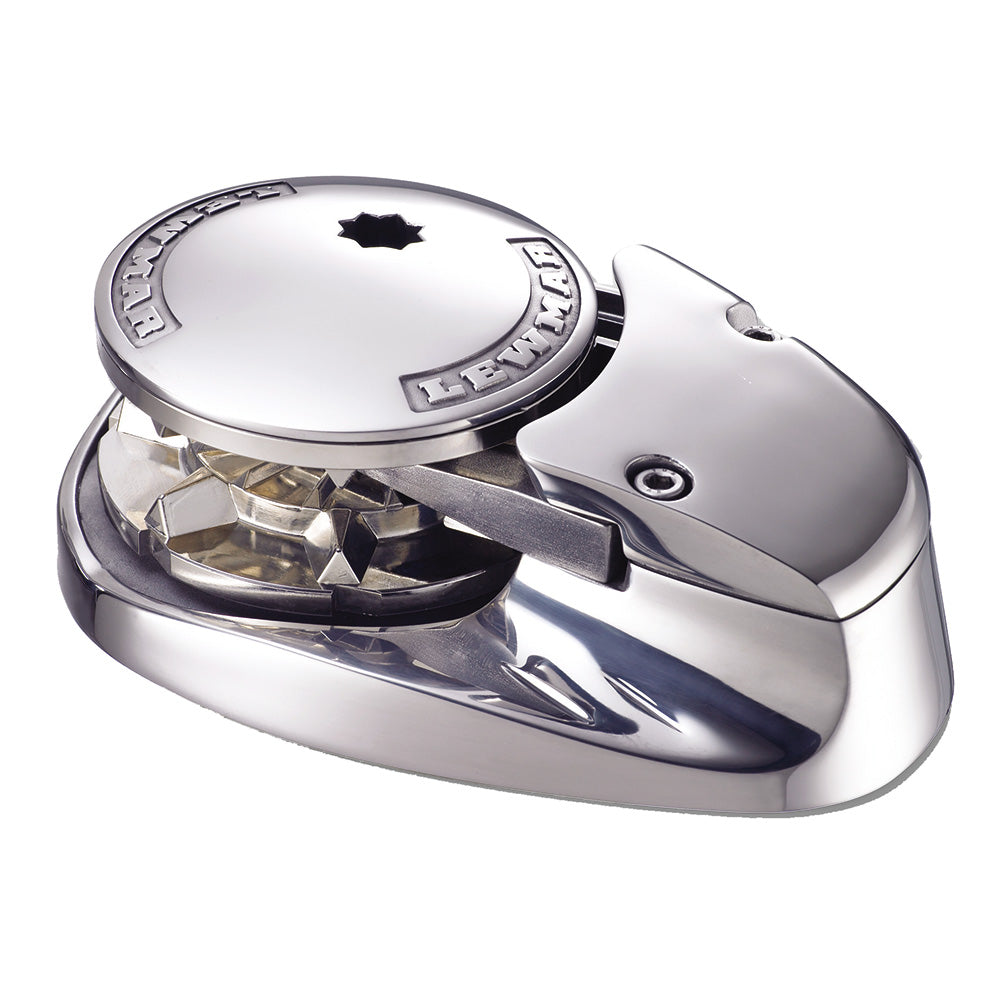

Lewmar V700 Vertical Windlass Kit - 12V

The V700 Vertical Windlass Kit - 12V is engineered for marine enthusiasts seeking both durability and aesthetic appeal. Crafted with 100% 316 stainless steel, its sleek flush-mount design seamlessly integrates into your vessel, keeping the motor discreetly housed below deck. Whether you're anchoring in calm waters or navigating challenging currents, the V700 delivers reliable performance with the simplicity of a button press.

Key Features

• Compatible with rope, chain, or combination rodes for versatile anchoring needs
• Advanced motor protection ensures longevity and safeguards against overloads
• Fail-safe anchor lock feature provides added security during anchoring
• Effortless installation process saves time and reduces installation costs
• Rapid line speed for quick and efficient anchor deployment and retrieval
• Manual recovery option available for added control and backup functionality
• Durable, impact-resistant cover protects internal components from harsh marine environments

Technical Specifications

Parameter	Details
Material	316 Stainless Steel
Maximum Pull	700 lbs
Maximum Line Speed	82 feet per minute
Maximum Chain Size	1/4 inch
Maximum Rope Size	1/2 inch
Power	12 V DC
Maximum Boat Length	35 feet
Mounting Position	Vertical
Weight	14 lbs

What's Included

• V700 Vertical Windlass Kit
• Control Switch
• Dual Direction Contactor/Solenoid
• Circuit Breaker
• Comprehensive Instruction Manual

Additional Specifications

Specification	Details
Chain Diameter	0.25 inches
Freefall Capability	Yes
Rope Diameter	0.5 inches
Installation Orientation	Vertical
Box Dimensions	8" H x 11" W x 12" L
Package Weight	20 lbs
UPC	743683302930

Note: Sold as an individual unit.

Download the Owner's Manual (PDF)
