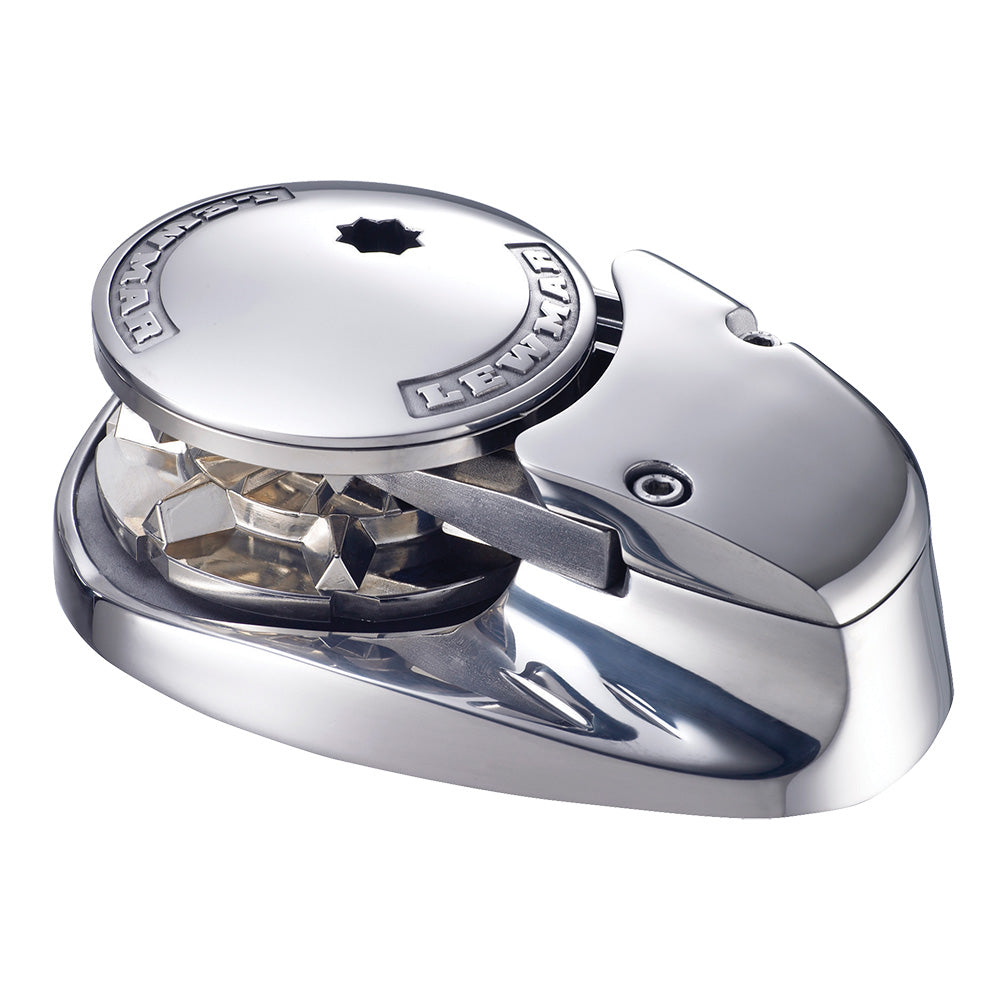

Lewmar V700 Vertical Windlass - 12V

The V700 Vertical Windlass is the perfect addition to any marine vessel, combining exceptional durability with an elegant flush-mount design. Crafted from 100% 316 stainless steel, this windlass not only withstands the harshest marine environments but also seamlessly integrates into your boat's aesthetic. Operate effortlessly with just the push of a button, and enjoy the added security of built-in motor protection and an anchor lock feature that ensures your anchor stays firmly in place.

Key Features

• Versatile Compatibility: Suitable for use with rope, chain, or a combination of rodes, providing flexibility to meet your anchoring needs.
• Motor Protection: Integrated motor protection system guards against overloads and potential damage, ensuring longevity and reliability.
• Fail-Safe Anchor Lock: Keeps your anchor secure during adverse conditions, offering peace of mind while mooring.
• Easy Installation: Designed for straightforward mounting, making the setup process quick and hassle-free.
• Fast Line Speed: Achieve rapid deployment and retrieval of your anchor with a maximum line speed of 82 feet per minute.
• Manual Recovery Option: Provides an alternative method to retrieve your anchor in case of power failure, ensuring uninterrupted functionality.
• Impact-Resistant Cover: Protects the windlass components from physical damage and environmental wear, enhancing durability.
• Gypsy Compatibility: Equipped with a gypsy that accepts 1/4-inch chains, allowing for secure anchoring.

Technical Specifications

Material	316 Stainless Steel
Maximum Pull	700 lbs
Maximum Line Speed	82 feet per minute
Maximum Chain Size	1/4 inch
Maximum Rope Size	1/2 inch
Power	12 V DC
Maximum Boat Length	35 feet
Mounting Position	Vertical
Weight	14 lbs

Additional Specifications

Chain Diameter	0.25 inches
Freefall	Yes
Rope Diameter	0.5 inches
Orientation	Vertical
Box Dimensions	6" H x 8" W x 15" L
Box Weight	20 lbs
UPC	743683303036

What's Included

• V700 Vertical Windlass
• Instruction Manual

Note: Sold individually. Does not include contactor or circuit breaker. Windlass only.

Download Owner's Manual (PDF)
