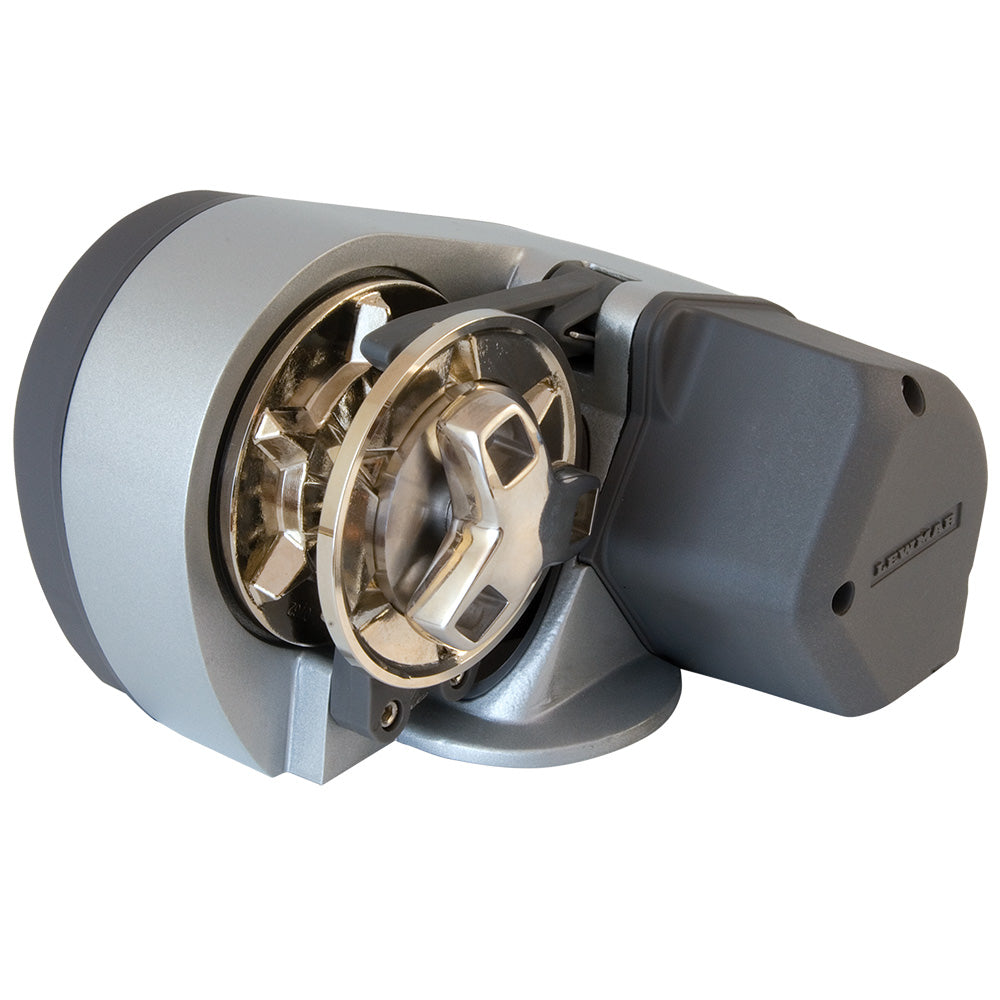

Lewmar Pro-Sport 550G Horizontal Windlass Kit - 12V

Pro-Sport 550G Horizontal Windlass Kit - 12V

Lewmar’s Pro-Sport windlass is designed as an economical package for rope and chain applications, without compromise on quality or performance. Pro-Sport is designed around a highly efficient spur gearbox, using smaller, more powerful permanent magnet motors.

Its rugged aluminum center case and durable composite side covers make Pro-Sport the perfect choice.  Complete with push-button control, anchoring has never been easier.

Features:

• Low power consumption / current draw
• Dual direction powered operation
• Convenient above-deck installation
• Manual freefall
• DIY ready

Technical Specifications:

• Chain Size - 1/4" G4 or BBB
• Rope Size - 1/2" 3-strand or 8-plait
• Motor Voltage - 12 Volt DC
• Motor Power - 150 Watt
• Maximum pulling power - 550lb (250kg)
• Maximum Working Load - 137lb (62.12kg)
• For boats up to 28' (9M)

In the Box:

• Windlass
• Base gasket
• Mounting hardware
• Circuit breaker
• Contactor
• Rocker switch
• Instruction manual

*Sold as an Individual

Owner's Manual (pdf)
