Lenco 101XD Extreme Duty Actuator - 12V - 2 1/4" Stroke - 3/8" Hardware

The 101 XD Actuator is engineered for the demanding needs of marine and boating applications. Operating on 12 volts, this electric actuator provides a swift and reliable response, making it perfect for managing HD, XD, High Performance, and Super Strong tabs on your vessel. With a robust construction and advanced features, it's designed to withstand the harsh marine environment while delivering exceptional performance.

Specifications

Voltage	12 Volt

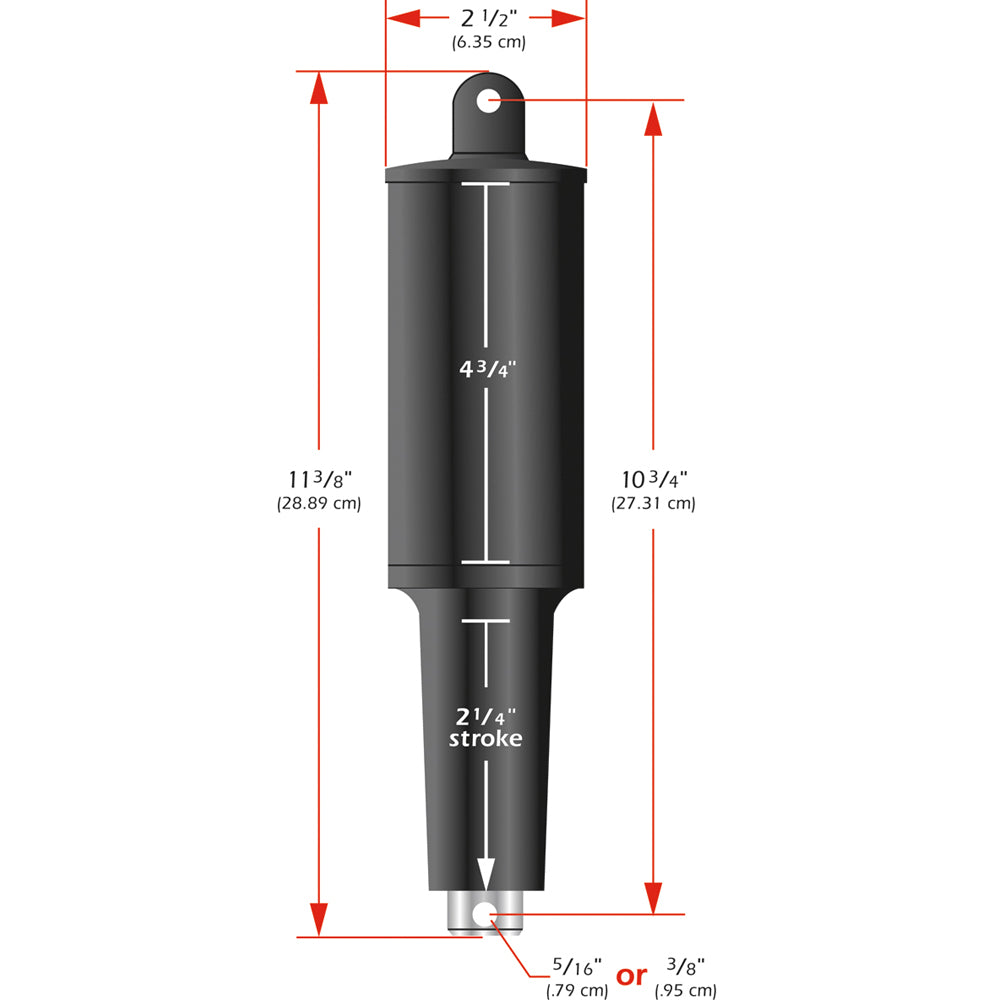

Stroke Length	2-1/4 inches (2.25)
Overall Length	113/8 inches (tip to tip)
Material	High-impact, glass fiber filled, ultraviolet-resistant nylon with 316 super buff stainless steel tubing.
Mounting Hardware	3/8" included
Cable Length	6 feet

Key Features

• Enhanced Sealing: Newly implemented Anti Extrusion Ring (AXR) seal stabilization system ensures long-lasting performance.
• Reinforced Design: Stronger top cap and mounting clevis design for secure attachment to your vessel.
• Pressure-Tight Screws: Improved Torx screws provide a reliable, pressure-tight seal, essential for marine applications.
• Integrated Wiper Seal: Located at the actuator base to prevent contaminants from entering.
• Brass Thrust Bearing: Molded-in brass thrust bearing design enhances durability and performance.
• Durable Motor Housing: Thicker and stronger walls protect the motor from the harsh marine environment.
• Reliable Seals: Improved O-Ring design ensures a more consistent seal, reducing maintenance needs.
• Over-Molded Cable: Provides a stronger, tighter seal to prevent water ingress and ensure reliable operation.
• Secure Mounting: Upper mounting bracket equipped with a gland seal for added protection against water and debris.

Additional Features

• Ballscrew Design: Lenco’s patented ballscrew system offers enhanced reliability and power, outperforming typical hydraulic systems.
• High-Torque Motor: Capable of pushing up to 500 pounds, ensuring smooth and efficient operation of marine controls.
• Waterproof Connections: Uses "Plug & Play" Deutsch connectors to eliminate the risk of water intrusion, ensuring safety and longevity.

Important Information

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Return Policy: This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Resources

Quick Guide (PDF)
