Lenco 101 Standard Actuator - 24V - 2-1/4" Stroke

The 101 Actuator- 24 Volt- 2-1/4 Stroke with Mounting Hardware is a robust and reliable solution tailored for marine and boating applications. Engineered for instant response, this electric actuator ensures smooth and powerful operation, making it an essential component for various boat control systems.

Product Overview

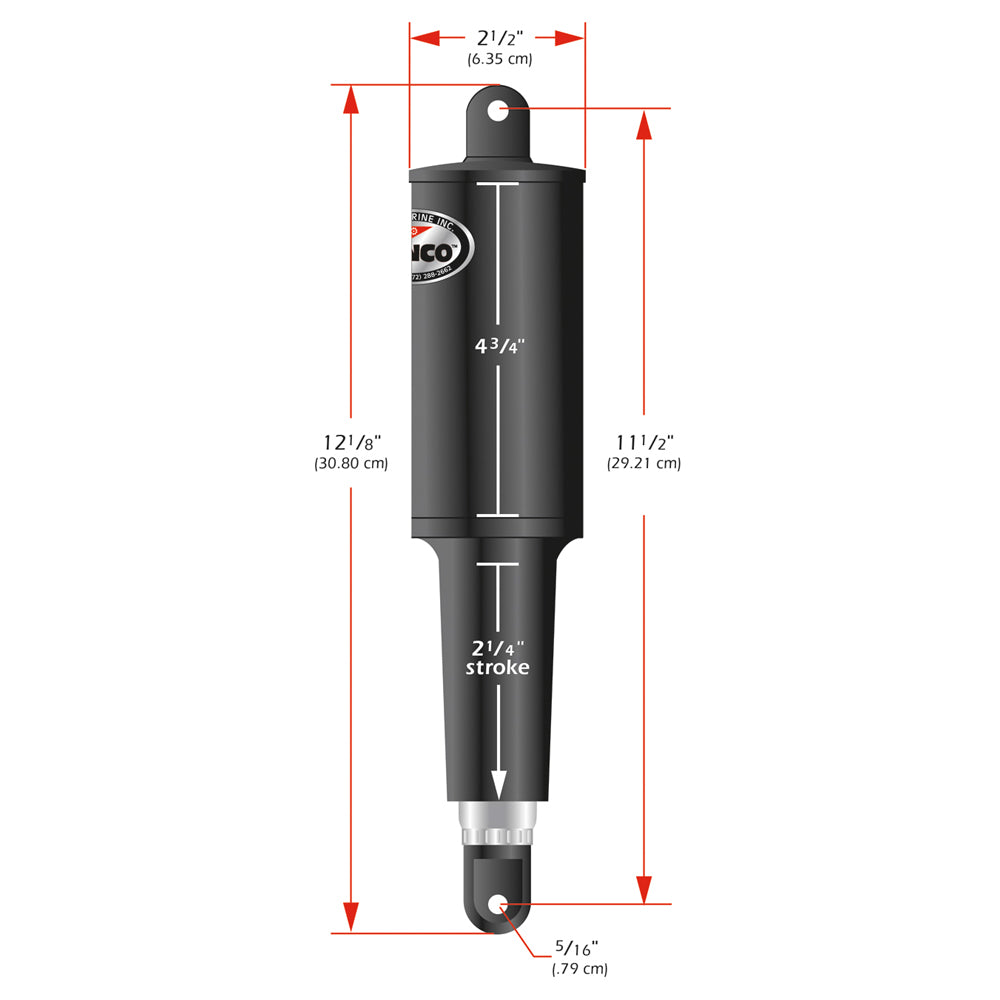

The 101 Actuator is compatible with all Standard, Edge Mount, and Standard Performance kits. With a 2.25-inch stroke and an overall length of 12.5 inches (tip to top), it delivers precise control in tight marine environments. Constructed from high-impact glass fiber-filled, ultraviolet-resistant nylon and reinforced with 316 super buff stainless steel tubing, this actuator is built to withstand harsh marine conditions.

Specifications

Voltage	24 Volt
Stroke	2.25 inches
Overall Length	12.5 inches (tip to top)
Mounting Hardware	5/16" mounting hardware included
Cable Length	6 feet
Material	High-impact glass fiber-filled, UV-resistant nylon with 316 super buff stainless steel tubing

Key Features

• Enhanced Durability: Newly implemented Anti Extrusion Ring (AXR) seal stabilization system.
• Robust Design: Stronger top cap and mounting clevis design for added stability.
• Reliable Sealing: Improved pressure-tight Torx screws and integrated wiper seal at actuator base.
• High Performance: Lenco's ballscrew design offers double the power and reliability compared to typical hydraulics.
• Powerful Motor: High-torque actuator motor capable of pushing up to 500 pounds.
• Waterproof Connections: "Plug & Play" Deutsch connectors prevent water intrusion.
• Superior Construction: Molded-in brass thrust bearing design and thicker motor housing walls.
• Consistent Sealing: Improved O-Ring design and over-molded cable for a stronger, tighter seal.
• Secure Mounting: Upper mounting bracket with gland seal for enhanced installation security.

Additional Features

• Operates efficiently on a 24 Volt system.
• Comes with 5/16" mounting hardware for easy installation.
• Includes a 6-foot cable to provide flexibility in setup.

Safety Information

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Return Policy

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Quick Guide

Download the Quick Guide (PDF)
