Lectrotab XKA Stainless Steel Trim Tab w/ALC-1 Control - 12 x 24

The XKA Stainless Steel Trim Tab with ALC-1 Control is your ultimate solution for enhancing boat stability and performance. Designed for boats ranging from 28' to 48', this 12" x 24" trim tab combines robust construction with advanced control features to ensure a smooth and efficient boating experience.

Unmatched Durability and Precision

Crafted from 12 gauge, 304 stainless steel, the Lectrotab trim tab boasts a continuous rolled and pinned hinge, eliminating the need for welding and providing exceptional strength and reliability. This design ensures that the trim tabs withstand harsh marine environments without compromising functionality.

Advanced Actuation System

The precision-engineered actuator operates silently, offering a non-hydraulic and maintenance-free solution. The corrosion-resistant housing keeps all components protected, ensuring accurate tab positioning and maximum lift force. Installation is straightforward, as the actuator assembly is self-contained and requires no additional components inside the boat.

Automatic Leveling Control (ALC)

Enhance your boating experience with the Automatic Leveling Control, which automatically adjusts the trim tabs to maintain a level boat. The ALC system not only corrects roll from side to side but also manages pitch from fore to aft, contributing to a more comfortable ride and improved fuel efficiency.

Key Features

• Continuous rolled and pinned hinge for added strength without welding
• Protected upper ram seal against damage from fouling or barnacle growth
• Internal pressure equalization system for reliable performance
• Integrated brake system prevents unwanted tab movement during operation
• Quiet and efficient actuator operation
• Actuators capable of exerting up to 1000 lbs of force
• Non-metallic external structure resistant to corrosion and UV damage

Technical Specifications

Specification	Details
Trim Tab Size (L x W)	12" x 24" (30 x 61 cm)
Suitable Boat Length	28' to 48' (8.5 to 14.5 m)
Material	12 gauge, 304 Stainless Steel
Actuator Voltage	12 V DC
Actuator Stroke Length	2.25" (57 mm)
Actuator Cable Length	23' (7 m)
Actuator Vertical Height	11.875" (302 mm)
Control Dimensions (W x H)	3.15" x 3.07" (80 x 77 mm)
Control Mounting Hole Cutout	2" (50 mm)
Control Operating Voltage	12 or 24 V
Actuator Type	Electro-Mechanical
Construction	Stainless Steel
Box Dimensions	2"H x 4"W x 6"L
Weight	31.55 lbs

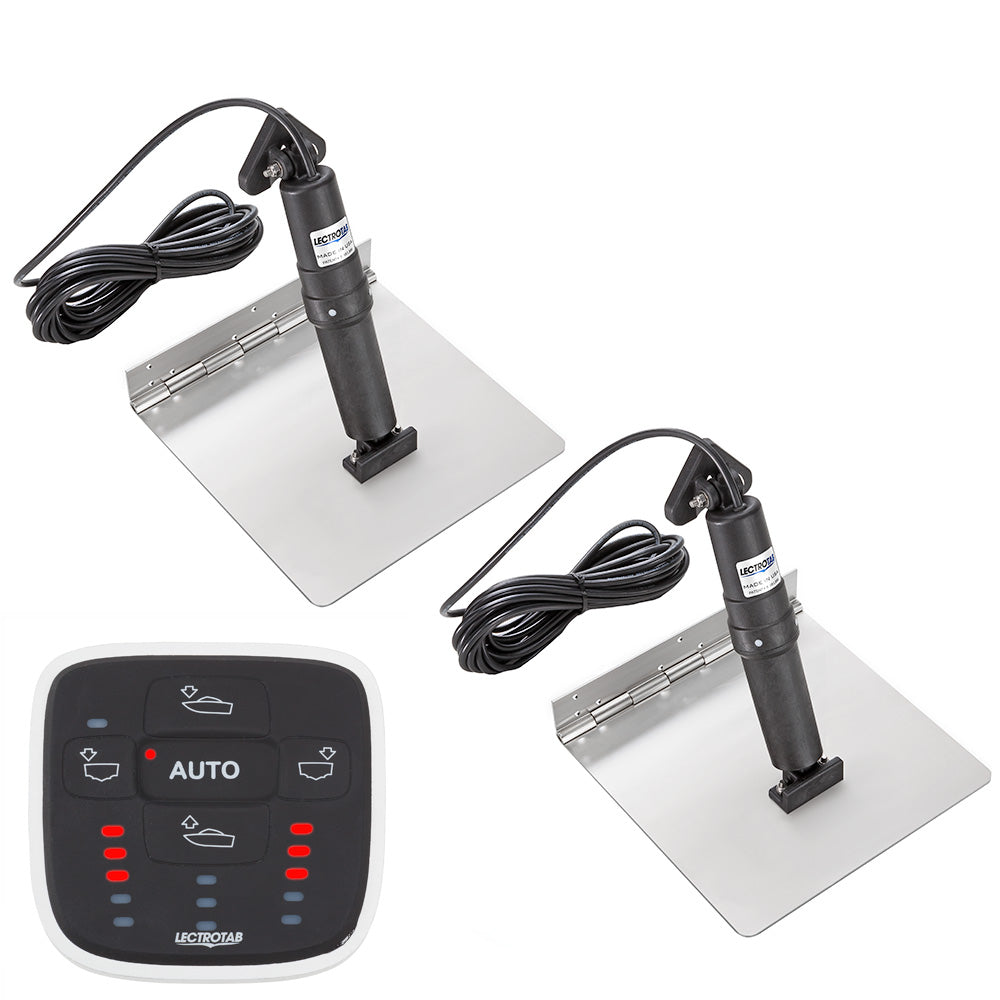

Package Includes

• 1 x Automatic Leveling Control
• 2 x Stainless Steel Trim Tabs
• 2 x Actuators with 23' (7 m) Cables
• Instruction Manual

*Sold as a Kit

Additional Resources

• Owner's Manual (PDF)
• Brochure (PDF)
