Lectrotab XKA Stainless Steel Trim Tab Kit w/Rocker Switch - 9 x 9

The XKA Stainless Steel Trim Tab Kit with Rocker Switch is engineered for marine enthusiasts seeking unparalleled strength, reliability, and ease of installation. Designed specifically for boats between 14' to 19', this 9" x 9" trim tab kit enhances your vessel's performance with precision and durability.

Superior Construction and Design

The Lectrotab stainless steel trim tabs are crafted from 12 gauge, 304 stainless steel, ensuring maximum resistance to corrosion and environmental wear. Featuring a continuous rolled and pinned hinge, the design eliminates the need for welding, providing unmatched strength and longevity. The upper ram seal location is protected from damage caused by fouled rams or barnacle growth, while the internal pressure equalization system maintains smooth operation under varying conditions.

Advanced Actuator System

Equipped with a precision-engineered electro-mechanical actuator, this trim tab kit ensures quiet, maintenance-free operation without the complexities of hydraulic systems. The actuator is fully load tested to deliver up to 1000 lbs of force, providing maximum lift and accurate tab positioning. Encased in a non-metallic, permanently sealed housing, the actuator remains corrosion-free and requires no installation inside the boat.

User-Friendly Rocker Switch

Lectrotab's innovative flat rocker switch offers enhanced sealing to prevent water ingress and a recessed design to avoid breakage. The switch features an "instant stop" circuit, ensuring safe and precise control by preventing actuator over-run when released. Available with either a standard or low-profile transom mounting bracket, the rocker switch operates effectively at both 12V and 24V.

Key Features

• Continuous rolled and pinned hinge for added strength, eliminating the need for welding
• Protected upper ram seal location, resistant to fouling and barnacle growth
• Internal pressure equalization system for smooth operation
• Integrated brake system to prevent unwanted tab movement during underway or reverse operation
• Quiet, maintenance-free operation with electro-mechanical actuators
• Actuators fully load tested to push up to 1000 lbs of force
• Non-metallic external structure resistant to corrosion and UV degradation

Technical Specifications

Specification	Details
Trim Tab Size (L x W)	9" x 9" (23 x 23 cm)
Suitable Boat Length	14' to 19' (4 to 6 M)
Trim Tab Material	12 gauge, 304 Stainless Steel
Actuator Type	Electro-Mechanical
Actuator DC Voltage	12 V
Actuator Operating Voltage	12 or 24 V
Actuator Stroke Length	2.25" (57 mm)
Actuator Cable Length	23' (7 M)
Actuator Vertical Height	11.875" (302 mm)
Rocker Switch Dimensions (W x H)	3.125" x 3.25" (79.4 x 82.5 mm)
Rocker Switch Mounting Hole Cutout (H x W)	2.25" x 2" (57.5 x 50 mm)

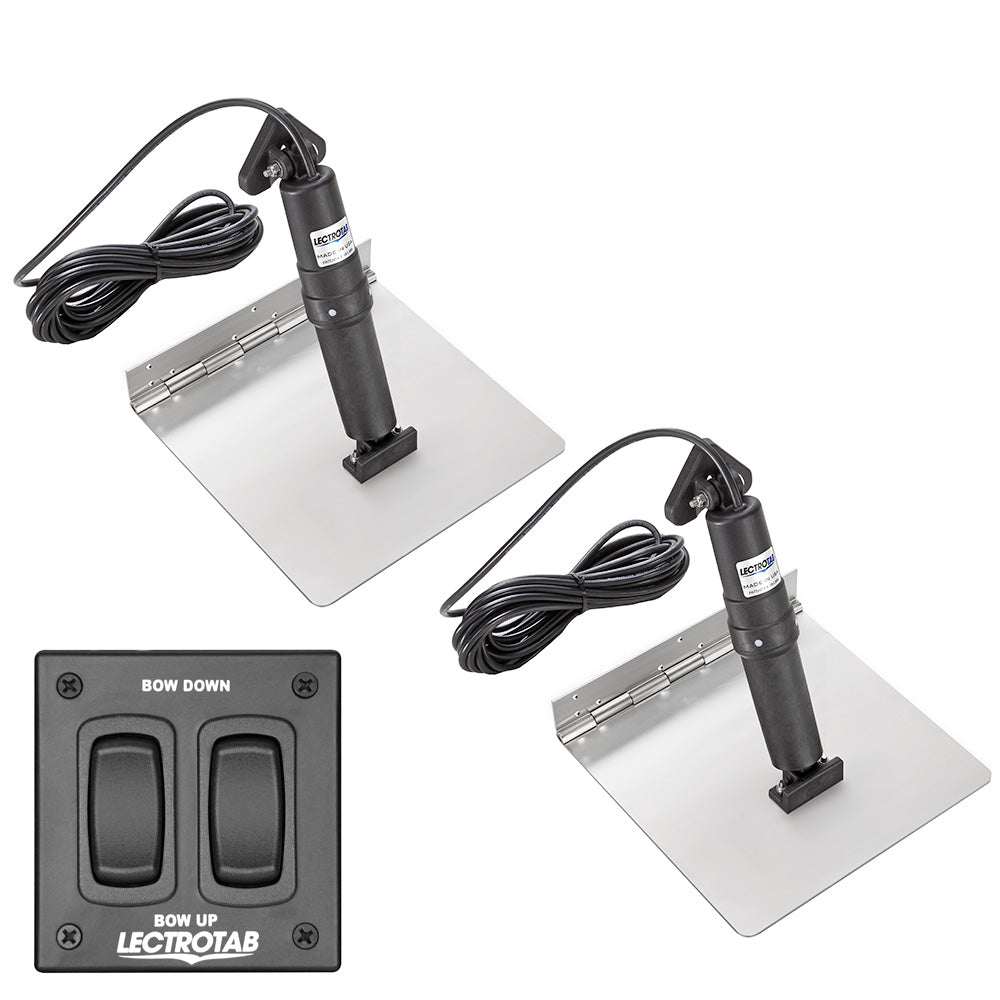

Package Contents

• One (1) Flat Rocker Switch
• Two (2) Stainless Steel Trim Tabs
• Two (2) Actuators with 23' (7 M) Cables
• Instruction Manual

*Sold as a Kit

Additional Specifications

• Construction: Stainless Steel
• Box Dimensions: 4" H x 5" W x 6" L
• Weight: 15.45 lbs

Owner's Manual (PDF)

Brochure (PDF)
