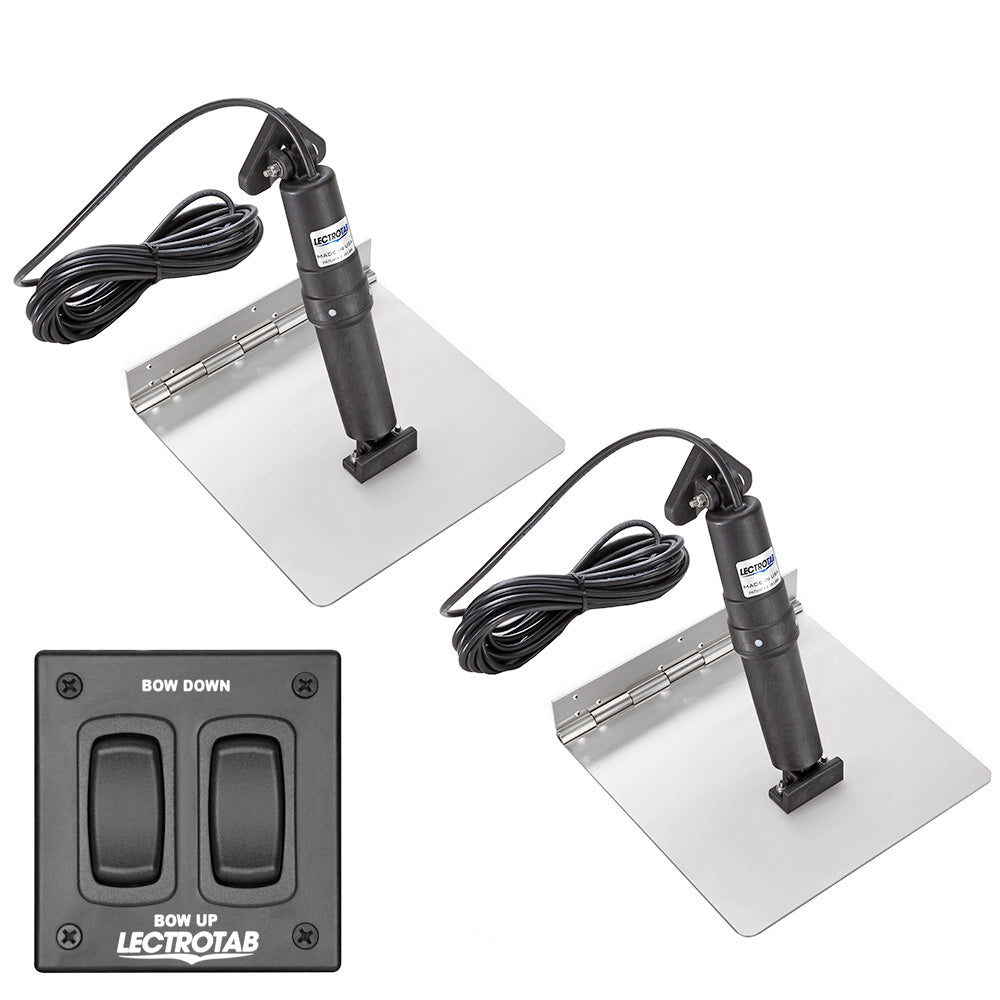

Lectrotab XKA Stainless Steel Trim Tab Kit w/Rocker Switch - 9 x 18

Experience unparalleled strength and reliability with the XKA Stainless Steel Trim Tab Kit with Rocker Switch. Specifically engineered for marine and boating enthusiasts, this kit ensures precise control, maximum lift force, and effortless installation, all while maintaining a corrosion-resistant and maintenance-free design.

Features

• Continuous rolled and pinned hinge provides added strength and eliminates the need for welding
• Upper ram seal location is protected from damage caused by fouled ram or barnacle growth
• Internal pressure equalization system enhances durability and performance
• Integrated brake system prevents unwanted tab movement during navigation or reversing
• Quiet operation ensures a smooth and peaceful boating experience
• Actuators are fully load tested to push up to 1000 lbs of force
• Non-metallic external structure is corrosion-proof and resistant to sun and water damage
• Precision-engineered actuator offers quiet operation with a non-hydraulic, maintenance-free design
• Completely self-contained unit simplifies installation with no need for internal boat components
• Rocker switch features improved sealing to prevent water entry and a recessed design to prevent breakage
• “Instant stop” circuit in the rocker switch prevents actuator over-run when switches are released

Technical Specifications

Specification	Details
Trim Tab Size (L x W)	9" x 18" (23 x 46 cm)
Boat Length Compatibility	21' to 30' (6.5 to 9 m)
Trim Tab Material	12 gauge, 304 Stainless Steel
Actuator DC Voltage	12 V
Actuator Stroke Length	2.25" (57 mm)
Actuator Cable Length	23' (7 m)
Actuator Vertical Height	11.875" (302 mm)
Rocker Switch Dimensions (W x H)	3.125" x 3.25" (79.4 x 82.5 mm)
Rocker Switch Mounting Hole Cutout (H x W)	2.25" x 2" (57.5 x 50 mm)
Rocker Switch Operating Voltage	12 or 24 V

What's in the Box

• One (1) Flat Rocker Switch
• Two (2) Stainless Steel Trim Tabs
• Two (2) Actuators with 23' (7 m) Cables
• Instruction Manual

*Sold as a Kit

Additional Specifications

• Actuator Type: Electro-Mechanical
• Construction: Stainless Steel
• Box Dimensions: 4" H x 5" W x 6" L
• Weight: 22.15 lbs

Additional Resources

Owner's Manual (PDF)
Brochure (PDF)
