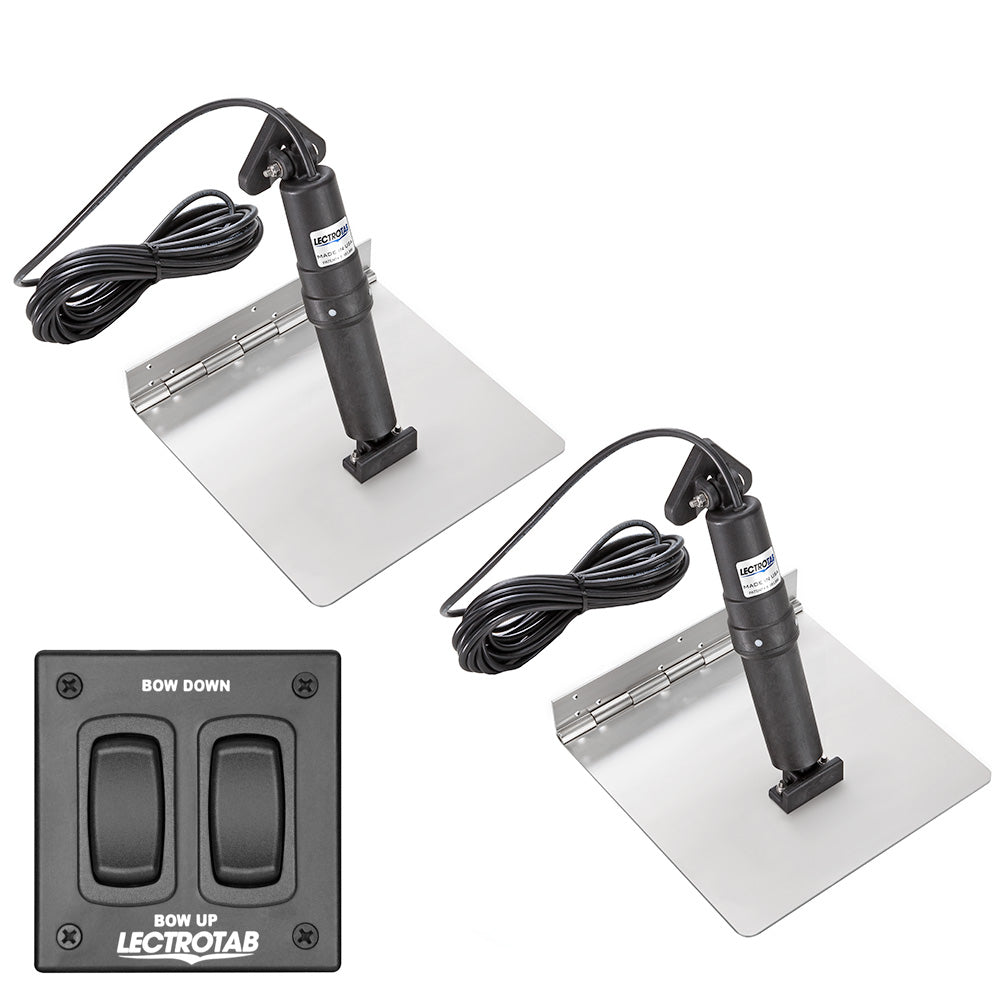

Lectrotab XKA Stainless Steel Trim Tab Kit w/Rocker Switch - 9 x 12

The XKA Stainless Steel Trim Tab Kit with Rocker Switch is engineered to deliver superior performance and reliability for boats ranging from 16' to 25'. Crafted from high-quality 304 stainless steel, this kit ensures corrosion resistance and longevity, making it an essential upgrade for marine enthusiasts seeking optimal trim control.

Exceptional Build Quality

The Lectrotab stainless steel trim tab features a continuous rolled and pinned hinge, eliminating the need for welding and providing unmatched strength. This robust construction ensures durability even in harsh marine environments, while the non-metallic external structure prevents corrosion and resists deterioration from sun and water exposure.

Advanced Actuation System

Equipped with a precision-engineered electro-mechanical actuator, the trim tab kit guarantees quiet operation and a maintenance-free design. The actuator is fully load tested to push up to 1000 lbs of force, offering maximum lift and precise tab positioning. Encased in a non-metallic, permanently sealed housing, the actuator assembly is self-contained for easy installation without the need for internal boat components.

Innovative Rocker Switch

Lectrotab's flat rocker switch is designed for marine use, featuring enhanced sealing to prevent water ingress and a recessed design to avoid damage. The switch includes an "instant stop" circuit that halts actuator movement immediately upon release, preventing over-run and ensuring safe operation.

Key Features

• Continuous rolled and pinned hinge for added strength and no welding requirement
• Protected upper ram seal location, immune to damage from fouled rams or barnacle growth
• Internal pressure equalization system for balanced operation
• Built-in brake system to prevent unwanted tab movement during navigation
• Quiet and smooth operation
• Fully load tested actuators pushing up to 1000 lbs of force
• Non-metallic exterior resistant to corrosion and environmental damage

Technical Specifications

Parameter	Specification
Trim Tab Size (L x W)	9" x 12" (23 x 30 cm)
Suitable Boat Length	16' to 25' (5 to 7.5 M)
Trim Tab Material	12 gauge, 304 Stainless Steel
Actuator DC Voltage	12 V
Actuator Stroke Length	2.25" (57 mm)
Actuator Cable Length	23' (7 M)
Actuator Vertical Height	11.875" (302 mm)
Rocker Switch Dimensions (W x H)	3.125" x 3.25" (79.4 x 82.5 mm)
Rocker Switch Mounting Hole Cutout (H x W)	2.25" x 2" (57.5 x 50 mm)
Rocker Switch Operating Voltage	12 or 24 V

What’s Included

• One (1) Flat Rocker Switch
• Two (2) Stainless Steel Trim Tabs
• Two (2) Actuators with 23' (7 M) Cables
• Instruction Manual

*Sold as a Kit

Additional Specifications

• Actuator Type: Electro-Mechanical
• Construction: Stainless Steel
• Box Dimensions: 4"H x 5"W x 6"L
• Weight: 17.25 lbs

Resources

Owner's Manual (PDF)

Brochure (PDF)
