Lectrotab  |  SKU: LOS-96266

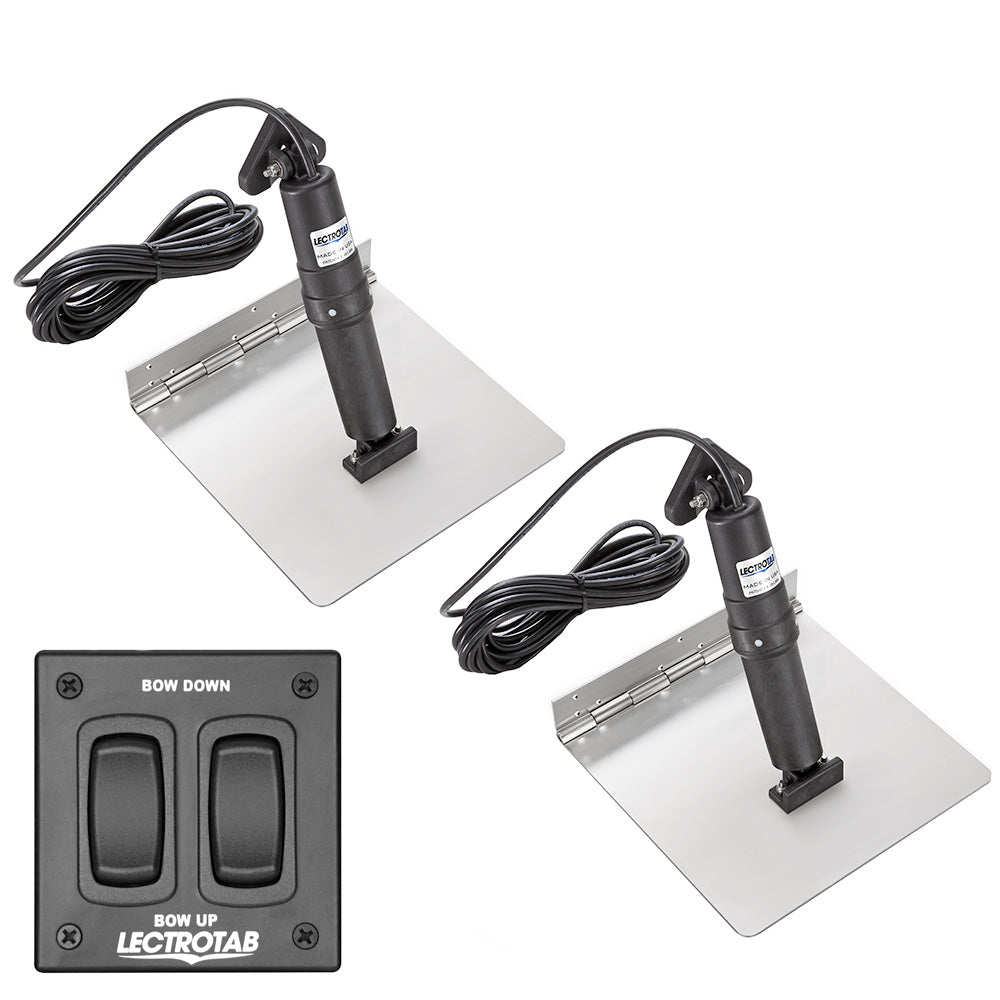

Lectrotab XKA Stainless Steel Trim Tab Kit w/Rocker Switch - 12 x 9

$772.65 USD $909.00

Product Description

The XKA Stainless Steel Trim Tab Kit with Rocker Switch is expertly designed for boating enthusiasts who demand superior performance and reliability. Crafted from high-quality stainless steel and featuring precision-engineered components, this trim tab kit enhances your vessel's stability and maneuverability in all marine conditions.

Exceptional Durability and Innovative Design

Constructed with 12 gauge, 304 stainless steel, the XKA Trim Tab Kit offers unmatched strength and resistance to corrosion. The continuous rolled and pinned hinge design eliminates the need for welding, ensuring a robust and long-lasting solution for your marine vessel.

High-Performance Actuation

The precision-engineered electro-mechanical actuator delivers quiet and efficient operation without the maintenance requirements of hydraulic systems. Capable of pushing up to 1000 lbs of force, the actuator ensures maximum lift and precise tab positioning, enhancing overall boat performance.

Easy Installation and Maintenance-Free Operation

This kit comes as a self-contained unit housed in a non-metallic, permanently sealed casing, simplifying installation with no internal boat components required. The non-hydraulic design eliminates the risk of oil leaks, keeping your marine environment clean and safe.

Advanced Control with Flat Rocker Switch

The newly designed flat rocker switch features improved sealing to prevent water ingress and a recessed rocker to enhance durability. It includes an "instant stop" circuit that prevents actuator over-run, providing precise control over your trim tabs.

Key Features

  • Continuous rolled and pinned hinge for added strength without welding
  • Protected upper ram seal location resistant to fouling and barnacle growth
  • Internal pressure equalization system for reliable performance
  • Integrated brake system to prevent unwanted tab movement during navigation
  • Quiet and smooth operation
  • Actuators capable of pushing up to 1000 lbs of force
  • Non-metallic external structure resistant to corrosion and UV degradation

Technical Specifications

Attribute Details
Trim Tab Size (L x W) 12" x 9" (30 x 23 cm)
Compatible Boat Length 18' to 29' (5.5 to 8.5 m)
Trim Tab Material 12 gauge, 304 Stainless Steel
Actuator Type Electro-Mechanical
Actuator DC Voltage 12 V
Actuator Stroke Length 2.25" (57 mm)
Actuator Cable Length 23' (7 m)
Actuator Vertical Height 11.875" (302 mm)
Rocker Switch Dimensions (W x H) 3.125" x 3.25" (79.4 x 82.5 mm)
Rocker Switch Mounting Hole Cutout (H x W) 2.25" x 2" (57.5 x 50 mm)
Rocker Switch Operating Voltage 12 or 24 V
Construction Material Stainless Steel
Box Dimensions 4" H x 5" W x 6" L
Weight 17.05 lbs

What's Included

  • One (1) Flat Rocker Switch
  • Two (2) Stainless Steel Trim Tabs
  • Two (2) Actuators with 23' (7 m) Cables
  • Instruction Manual

Note: *Sold as a Kit
