Lectrotab XKA Stainless Steel Trim Tab Kit w/Rocker Switch - 12 x 24

Upgrade your boat’s performance and reliability with the XKA Stainless Steel Trim Tab Kit featuring a durable rocker switch. Designed specifically for vessels between 28' and 48', this 12" x 24" trim tab kit ensures precise control and maximum lift force, all while maintaining a maintenance-free and corrosion-resistant build.

Exceptional Build Quality

The Lectrotab trim tabs are crafted from high-grade 304 stainless steel, offering unmatched strength and longevity. The continuous rolled and pinned hinge design eliminates the need for welding, providing added durability and ease of installation. Whether your boat faces harsh marine environments or constant use, these trim tabs stand up to the challenge.

Advanced Actuation System

Equipped with a precision-engineered electro-mechanical actuator, the kit ensures quiet operation and reliable performance without the complications of hydraulic systems. The actuator assembly is housed in a non-metallic, sealed casing, preventing corrosion and eliminating the risk of oil leaks. With actuation forces tested to push up to 1000 lbs, you can trust in consistent and powerful tab movement.

Innovative Rocker Switch

The included flat rocker switch is designed for marine use, featuring enhanced sealing to prevent water ingress and a recessed mechanism to avoid accidental breakage. It also offers an instant stop circuit, ensuring the actuator halts immediately when the switch is released, preventing over-run and providing precise control.

Key Features

• Stainless Steel Construction: 12 gauge, 304 stainless steel ensures durability and resistance to corrosion.
• Maintenance-Free Design: Non-hydraulic system with no oil to leak.
• Quiet Operation: Electro-mechanical actuators operate smoothly and silently.
• High Lift Force: Actuators push up to 1000 lbs of force for optimal trim control.
• Corrosion Resistant: Non-metallic external structure prevents rust and deterioration.
• Integrated Brake System: Prevents unwanted tab movement when underway or reversing.
• Easy Installation: Self-contained unit with standard or low profile transom mounting brackets.

Technical Specifications

Specification	Details
Trim Tab Size (L x W)	12" x 24" (30 x 61 cm)
Suitable Boat Length	28' to 48' (8.5 to 14.5 M)
Trim Tab Material	12 gauge, 304 Stainless Steel
Actuator Type	Electro-Mechanical
Actuator DC Voltage	12 V
Actuator Stroke Length	2.25" (57 mm)
Actuator Cable Length	23' (7 M)
Actuator Vertical Height	11.875" (302 mm)
Rocker Switch Dimensions (W x H)	3.125" x 3.25" (79.4 x 82.5 mm)
Rocker Switch Mounting Hole Cutout (H x W)	2.25" x 2" (57.5 x 50 mm)
Rocker Switch Operating Voltage	12 or 24 V
Box Dimensions	4"H x 5"W x 6"L
Weight	31.55 lbs

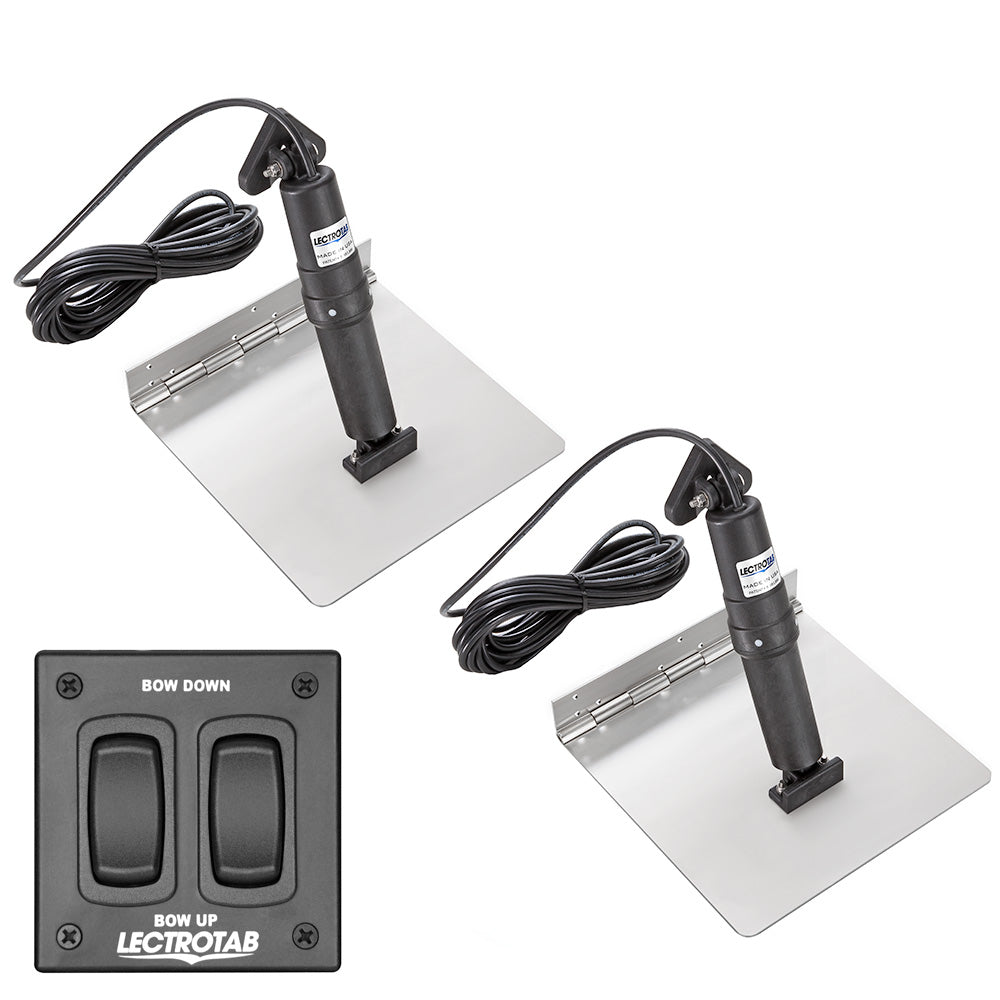

Package Includes

• One (1) Flat Rocker Switch
• Two (2) Stainless Steel Trim Tabs
• Two (2) Actuators with 23' (7 M) Cables
• Instruction Manual

Sold as a Kit

Additional Specifications

• Actuator Type: Electro-Mechanical
• Construction: Stainless Steel
• Box Dimensions: 4"H x 5"W x 6"L
• Weight: 31.55 lbs

Resources

Owner's Manual (PDF)

Brochure (PDF)
