Lectrotab XKA Stainless Steel Trim Tab Kit w/Rocker Switch - 12 x 18

The XKA Stainless Steel Trim Tab Kit with Rocker Switch is engineered for marine enthusiasts seeking superior performance and durability. Designed specifically for boats ranging from 20' to 40', this kit ensures precise trim adjustments, enhancing your vessel's handling and efficiency on the water.

Unmatched Strength and Reliability

Crafted from high-grade 304 stainless steel, the Lectrotab trim tabs feature a continuous rolled and pinned hinge, eliminating the need for welding and providing exceptional strength. This robust construction ensures longevity and resilience, even in the harshest marine environments.

Advanced Actuator System

The precision-engineered actuator delivers quiet, maintenance-free operation without the complications of hydraulic systems. The corrosion-resistant, non-metallic housing keeps all components sealed and protected, allowing for easy installation without any need to mount parts inside the boat.

Eco-Friendly and Leak-Free

Unlike traditional hydraulic trim tabs, our Electro-Mechanical actuators eliminate the risk of oil leaks, promoting a cleaner and more environmentally friendly boating experience. Choose between standard or low-profile transom mounting brackets to suit your boat's configuration.

Enhanced Control with Flat Rocker Switch

Lectrotab’s innovative flat rocker switch is designed for optimal performance in marine settings. It features improved sealing to prevent water ingress and a recessed rocker to minimize breakage. The switch also includes an "instant stop" circuit, ensuring the actuator halts immediately to prevent over-run and maintain precise tab positioning.

Key Features

• Continuous Rolled and Pinned Hinge: Provides added strength and eliminates the need for welding.
• Protected Ram Seal: Upper ram seal location is immune to damage from fouled ram or barnacle growth.
• Pressure Equalization: Utilizes an internal pressure equalization system for smooth operation.
• Brake System: Internal brake prevents unwanted tab movement while underway or reversing.
• Quiet Operation: Designed for minimal noise during use.
• High Load Capacity: Actuators are fully load tested to push up to 1000 lbs of force.
• Corrosion-Resistant: Non-metallic external structure resists corrosion and withstands sun and water exposure.

Technical Specifications

Specification	Details
Trim Tab Size (L x W)	12" x 18" (30 x 46 cm)
Suitable Boat Length	20' to 40' (6 to 12 m)
Trim Tab Material	12 gauge, 304 Stainless Steel
Actuator DC Voltage	12 V
Actuator Stroke Length	2.25" (57 mm)
Actuator Cable Length	23' (7 m)
Actuator Vertical Height	11.875" (302 mm)
Rocker Switch Dimensions (W x H)	3.125" x 3.25" (79.4 x 82.5 mm)
Rocker Switch Mounting Hole Cutout (H x W)	2.25" x 2" (57.5 x 50 mm)
Rocker Switch Operating Voltage	12 or 24 V
Actuator Type	Electro-Mechanical
Construction	Stainless Steel
Box Dimensions	4"H x 5"W x 6"L
Weight	27.05 lbs

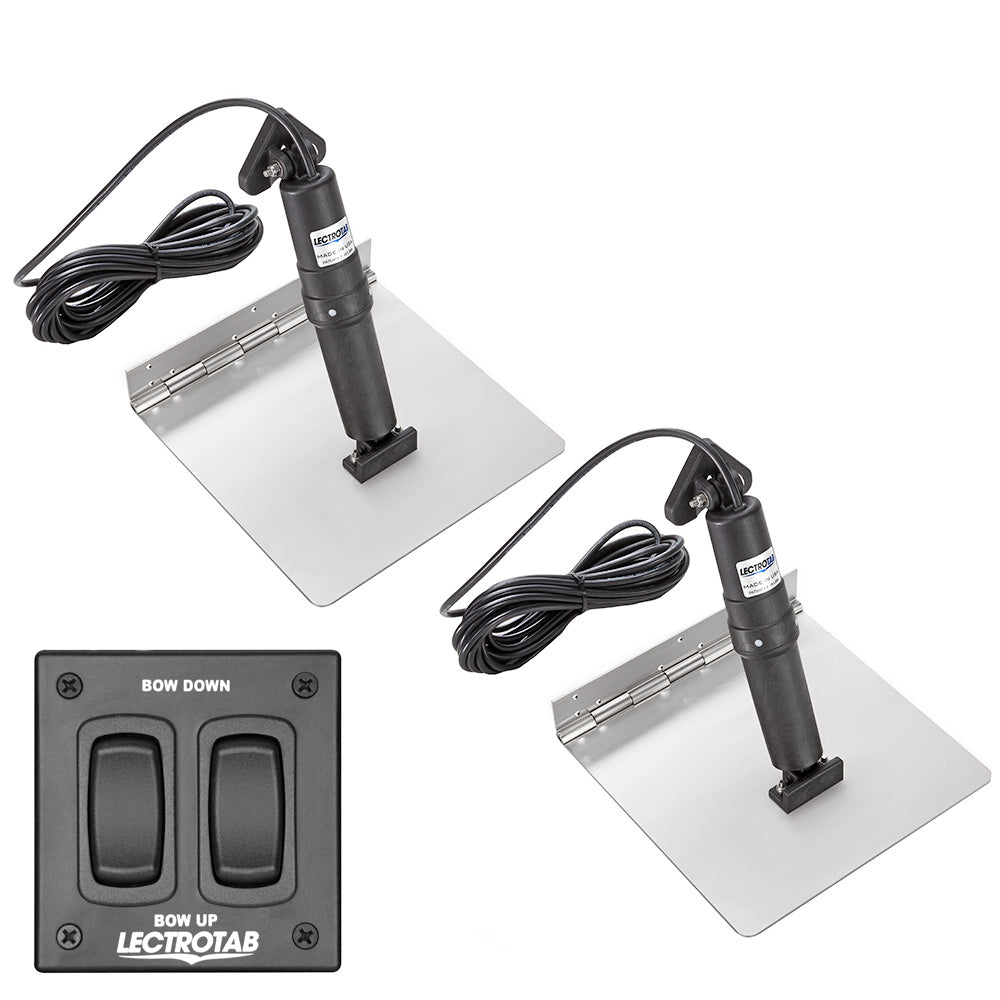

What's Included

• One (1) Flat Rocker Switch
• Two (2) Stainless Steel Trim Tabs
• Two (2) Actuators with 23' (7 m) Cables
• Instruction Manual

*Sold as a Kit

Additional Resources

• Owner's Manual (PDF)
• Brochure (PDF)
