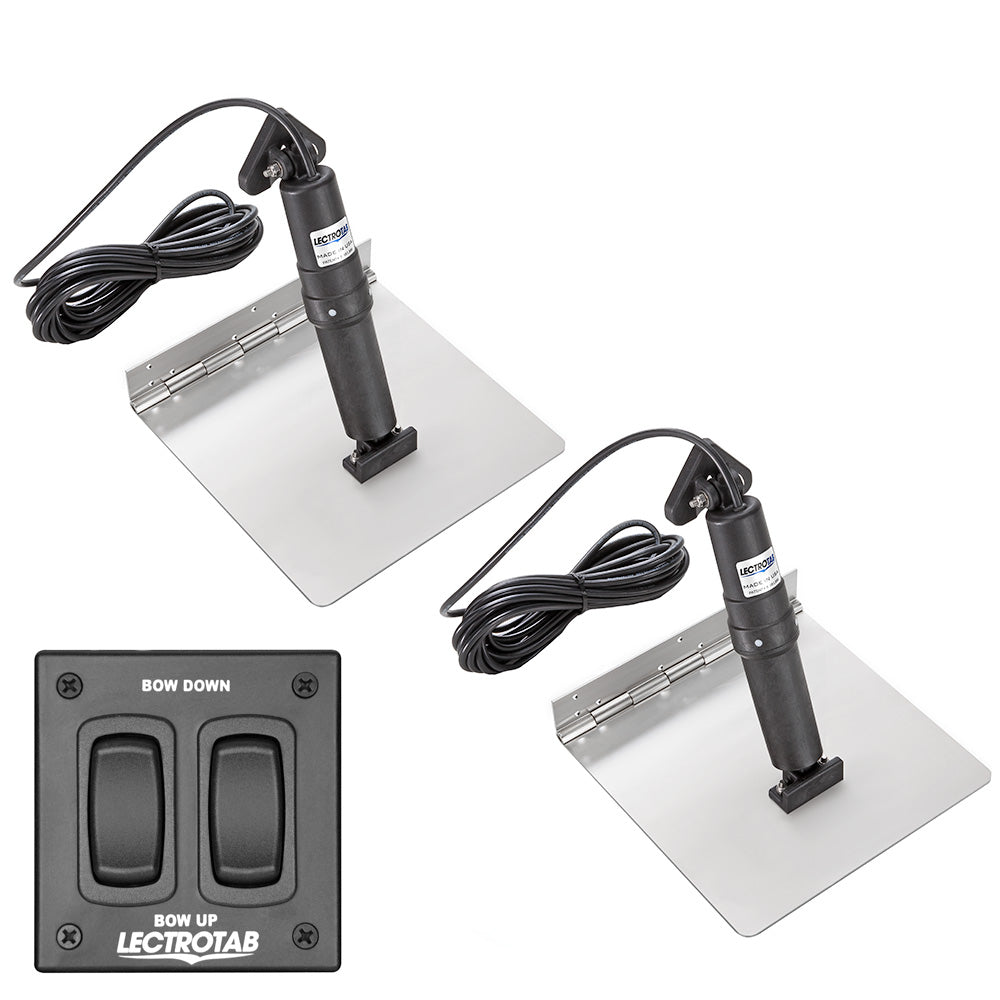

Lectrotab XKA Stainless Steel Trim Tab Kit w/Rocker Switch - 12 x 12

Enhance your boat's performance and reliability with the XKA Stainless Steel Trim Tab Kit with Rocker Switch. Designed for superior strength and easy installation, this trim tab kit is perfect for boats ranging from 18 to 32 feet, ensuring optimal trim and handling on the water.

Product Overview

The XKA Stainless Steel Trim Tab Kit features a robust design with continuous rolled and pinned hinges, eliminating the need for welding and providing unmatched durability. Crafted from 12 gauge, 304 stainless steel, these trim tabs are built to withstand harsh marine environments, resisting corrosion and fouling from ram or barnacle growth.

Equipped with precision-engineered electro-mechanical actuators, this kit delivers quiet, maintenance-free operation without the risks associated with hydraulic systems. The non-metallic, permanently sealed housing ensures corrosion resistance and simplifies installation by keeping all components outside the boat. The kit includes a new flat rocker switch with enhanced sealing to prevent water ingress and a recessed design to avoid damage, featuring an instant stop circuit to prevent actuator over-run.

Key Features

• Durable Construction: Continuous rolled and pinned hinges provide added strength and eliminate the need for welding.
• Corrosion Resistant: Made from 12 gauge, 304 stainless steel, ensuring long-lasting performance in marine environments.
• Fouling Protection: Upper ram seal location is protected from damage due to fouled ram or barnacle growth.
• Pressure Equalization: Internal pressure equalization system enhances reliability and performance.
• Internal Brake System: Prevents unwanted tab movement while underway or reversing.
• Quiet Operation: Actuators operate smoothly and silently, enhancing the boating experience.
• High Force Actuators: Fully load tested actuators capable of pushing up to 1000 lbs of force.
• Corrosion-Free Housing: Non-metallic external structure resists corrosion and does not deteriorate under sun or water exposure.
• Easy Installation: Actuator assembly is self-contained and mounted externally, requiring no internal boat installation.
• Leak-Free Design: Unlike hydraulic trim tabs, this kit has no oil to leak, ensuring cleaner and safer operation.

Technical Specifications

Specification	Details
Trim Tab Size (L x W)	12" x 12" (30 x 30 cm)
Boat Length	18' to 32' (5.5 to 9.5 m)
Trim Tab Material	12 gauge, 304 Stainless Steel
Actuator Type	Electro-Mechanical
Actuator DC Voltage	12 V
Actuator Stroke Length	2.25" (57 mm)
Actuator Cable Length	23' (7 m)
Actuator Vertical Height	11.875" (302 mm)
Rocker Switch Dimensions (W x H)	3.125" x 3.25" (79.4 x 82.5 mm)
Rocker Switch Mounting Hole Cutout (H x W)	2.25" x 2" (57.5 x 50 mm)
Rocker Switch Operating Voltage	12 or 24 V
Box Dimensions	4"H x 5"W x 6"L
Weight	19.25 lbs

What’s Included

• One (1) Flat Rocker Switch
• Two (2) Stainless Steel Trim Tabs
• Two (2) Actuators with 23' (7 m) Cables
• Instruction Manual

Note: Sold as a Kit.

Installation & Maintenance

The XKA Stainless Steel Trim Tab Kit is designed for straightforward installation with all components housed externally, eliminating the need for internal boat modifications. The non-metallic actuator housing is easy to mount using the included standard or low profile transom mounting bracket, ensuring a secure fit. Maintenance is minimal due to the non-hydraulic, sealed design, providing a hassle-free experience and long-term reliability on the water.

Additional Resources

For more detailed information, please refer to the following resources:

• Owner's Manual (PDF)
• Brochure (PDF)
