Lectrotab XKA Stainless Steel Trim Tab Kit w/One-Touch Control - 9 x 9

Enhance your boat's performance and reliability with the XKA Stainless Steel Trim Tab Kit with One-Touch Control. Designed for marine enthusiasts who demand durability and precision, this trim tab kit ensures smooth and efficient operation on the water.

Superior Construction for Lasting Performance

The Lectrotab stainless steel trim tab kit is engineered to deliver unmatched strength and longevity. Crafted from high-quality 12 gauge, 304 stainless steel, each trim tab features a continuous rolled and pinned hinge, eliminating the need for welding and ensuring robust performance in harsh marine environments.

Advanced Actuation System

Equipped with a precision-engineered electro-mechanical actuator, this kit offers quiet operation and a maintenance-free design. The actuator delivers a powerful 1000 lbs of force, ensuring accurate tab positioning and maximum lift force. Packaged in a non-metallic, permanently sealed housing, the actuator prevents corrosion and requires no installation inside the boat.

One-Touch Control for Ease of Use

Lectrotab's innovative one-touch leveling LED control system puts complete control of your trim tabs at your fingertips. Whether you're adjusting the trim while underway or backing down, the internal brake system prevents unwanted movement, providing a smooth and hassle-free experience.

Key Features

• Continuous Rolled and Pinned Hinge: Adds strength and eliminates the need for welding.
• Protected Upper Ram Seal: Safeguards against damage from fouled ram or barnacle growth.
• Internal Pressure Equalization System: Ensures consistent performance.
• Internal Brake System: Prevents unwanted tab movement during operation.
• Quiet Operation: Maintains a serene boating environment.
• High-Force Actuators: Each actuator is fully load tested to push 1000 lbs of force.
• Corrosion-Resistant Structure: Non-metallic external components resist corrosion and UV degradation.

Technical Specifications

Specification	Details
Trim Tab Size (L x W)	9" x 9" (23 x 23 cm)
Suitable Boat Length	14' to 19' (4 to 6 M)
Trim Tab Material	12 gauge, 304 Stainless Steel
Actuator DC Voltage	12 V
Actuator Stroke Length	2.25" (57 mm)
Actuator Cable Length	23' (7 M)
Actuator Vertical Height	11.875" (302 mm)
Rocker Switch Dimensions (W x H)	3" x 3" (77 x 77 mm)
Rocker Switch Mounting Hole Cutout (H x W)	2.25" x 2.5" (57 to 64 mm)
Rocker Switch Operating Voltage	12 or 24 V
Actuator Type	Electro-Mechanical
Construction	Stainless Steel
Box Dimensions	2"H x 5"W x 6"L
Weight	15.35 lbs

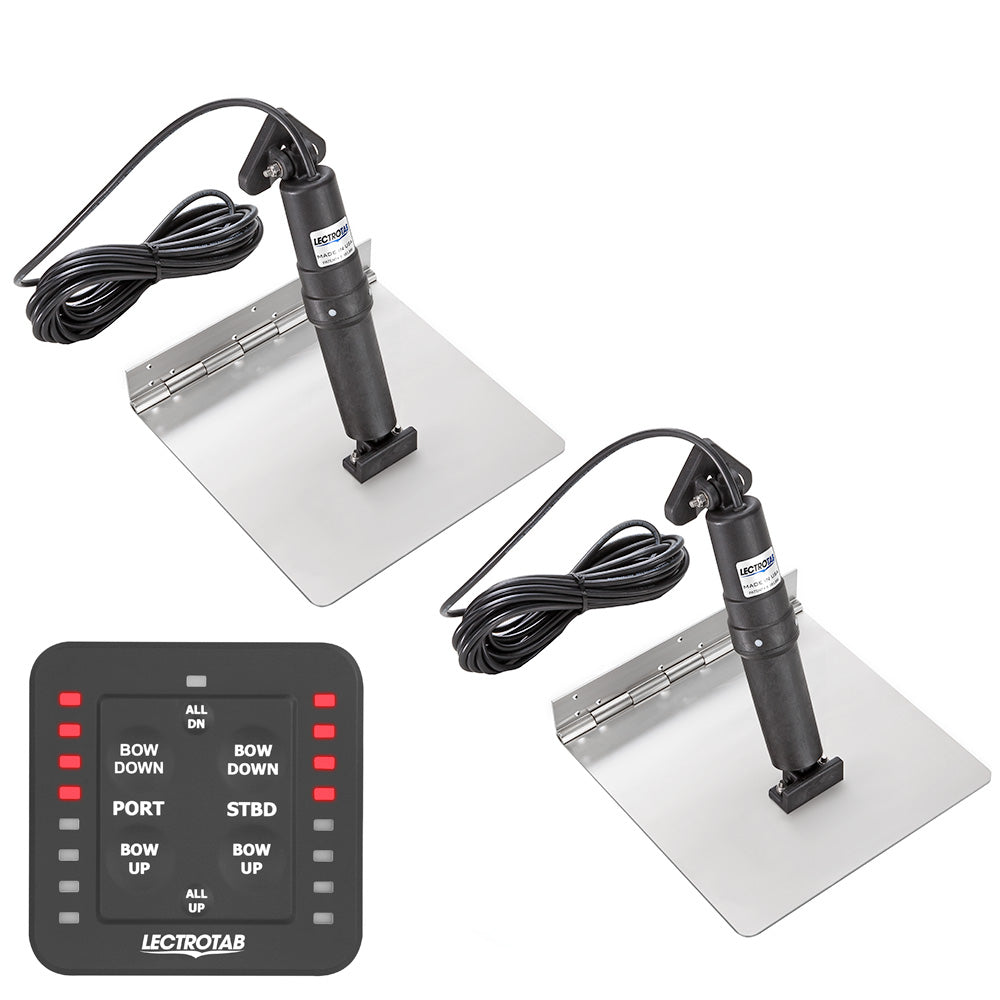

What's Included

• One (1) One-Touch Control
• Two (2) Stainless Steel Trim Tabs
• Two (2) Actuators with 23' (7 M) Cables
• Instruction Manual

*Sold as a Kit

Additional Resources

For more information, refer to the following documents:

• Owner's Manual (PDF)
• Brochure (PDF)
