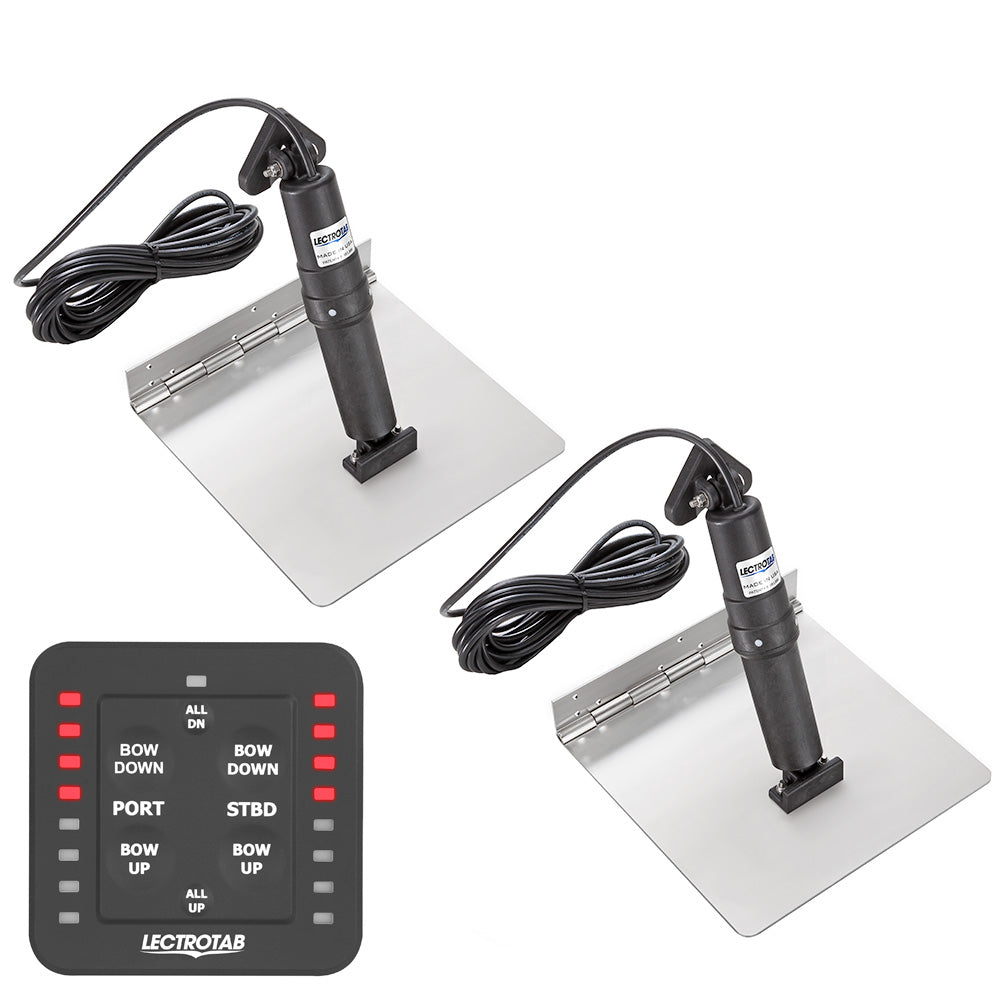

Lectrotab XKA Stainless Steel Trim Tab Kit w/One-Touch Control - 9 x 24

Enhance your boating experience with the XKA Stainless Steel Trim Tab Kit, featuring One-Touch Control and robust 9" x 24" stainless steel tabs. Engineered for superior strength and effortless operation, this kit ensures your trim tabs perform reliably in any marine environment.

Superior Construction and Durability

The Lectrotab stainless steel trim tabs are crafted with a continuous rolled and pinned hinge, eliminating the need for welding and providing unparalleled strength. Made from 12 gauge, 304 stainless steel, these tabs resist corrosion and withstand harsh marine conditions.

Precision-Engineered Actuators

Our precision-engineered actuators combine quiet operation with a non-hydraulic, maintenance-free design. The corrosion-resistant, non-metallic housing ensures the unit remains sealed, preventing any oil leaks and eliminating the need for internal boat installation. Actuators are fully load tested to push up to 1000 lbs of force, providing maximum lift and accurate tab positioning.

Easy Installation and Control

The XKA Trim Tab Kit includes either a standard or low-profile transom mounting bracket, making installation straightforward. The one-touch leveling LED control allows you to manage your trim tabs effortlessly from your fingertips, enhancing your boating control and convenience.

Key Features

• Continuous rolled and pinned hinge for added strength without welding
• Protected upper ram seal, immune to fouling or barnacle growth
• Internal pressure equalization system for optimal performance
• Integrated brake system to prevent unwanted tab movement during maneuvering
• Quiet and smooth operation
• Actuators capable of exerting 1000 lbs of force
• Non-metallic external structure resists corrosion and UV degradation

Technical Specifications

Property	Specification
Trim Tab Size (L x W)	9" x 24" (23 x 61 cm)
Suitable Boat Length	24' to 37' (7 to 11 m)
Material	12 gauge, 304 Stainless Steel
Actuator DC Voltage	12 V
Actuator Stroke Length	2.25" (57 mm)
Actuator Cable Length	23' (7 m)
Actuator Vertical Height	11.875" (302 mm)
Rocker Switch Dimensions (W x H)	3" x 3" (77 x 77 mm)
Rocker Switch Mounting Hole Cutout (H x W)	2.25" x 2.5" (57 x 64 mm)
Rocker Switch Operating Voltage	12 or 24 V

What’s Included

• One (1) One-Touch Control
• Two (2) Stainless Steel Trim Tabs
• Two (2) Actuators with 23' (7 m) Cables
• Instruction Manual

Note: Sold as a Kit

Additional Specifications

• Actuator Type: Electro-Mechanical
• Construction: Stainless Steel
• Box Dimensions: 2"H x 5"W x 6"L
• Weight: 27.35 lbs

Learn More

Owner's Manual (PDF)
Brochure (PDF)
