Lectrotab  |  SKU: LOS-96272

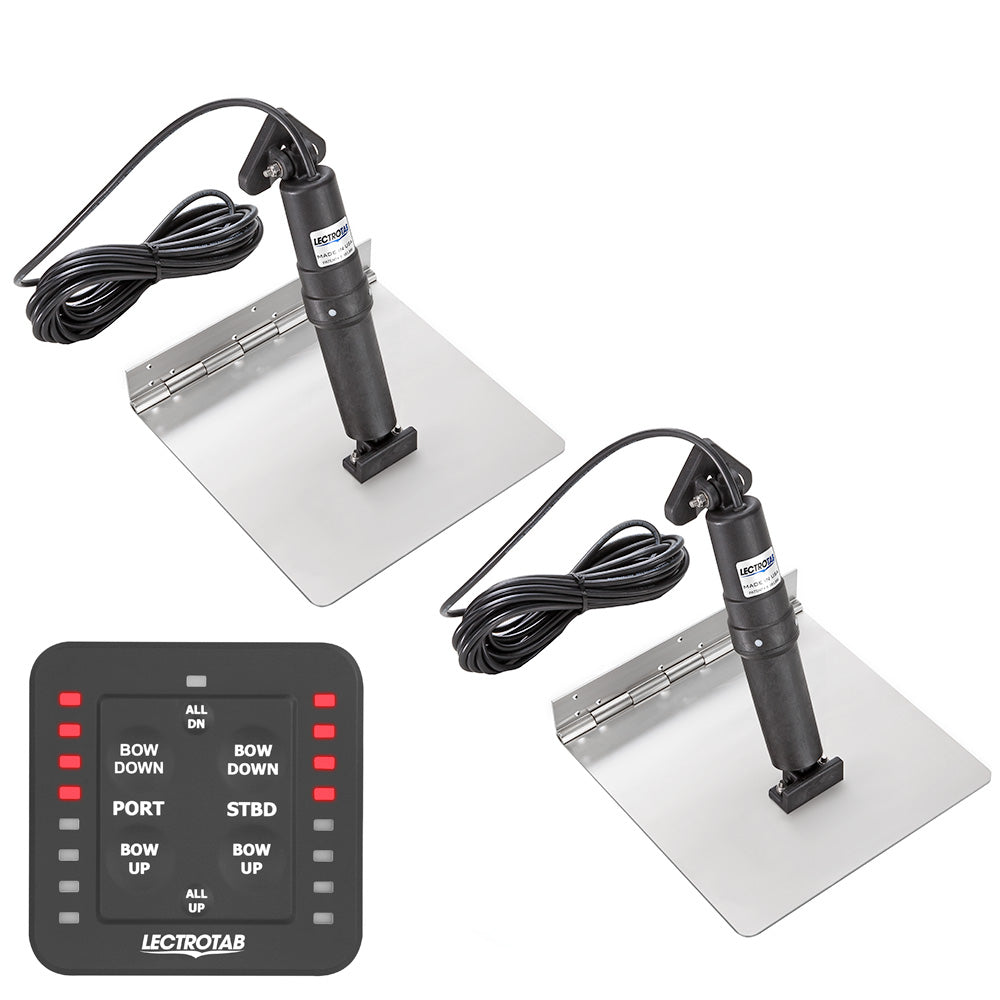

Lectrotab XKA Stainless Steel Trim Tab Kit w/One-Touch Control - 9 x 18

$1,186.60 USD $1,396.00

Product Description

The XKA Stainless Steel Trim Tab Kit with One-Touch Control delivers exceptional performance and durability for your boat. Designed for easy installation and maintenance-free operation, this trim tab kit enhances your vessel's handling, stability, and overall marine experience.

Product Features

  • Durable Construction: Crafted from 12 gauge 304 stainless steel, the continuous rolled and pinned hinge ensures unmatched strength while eliminating the need for welding.
  • Corrosion-Resistant: The non-metallic external structure resists corrosion and prevents deterioration from sun exposure and underwater conditions.
  • Quiet Operation: Precision-engineered actuators provide smooth and silent trim adjustments without the noise associated with hydraulic systems.
  • Powerful Actuators: Each actuator is fully load tested to deliver up to 1000 lbs of force, ensuring maximum lift and precise tab positioning.
  • Secure Hinge Placement: Upper ram seals are protected from damage caused by fouling ram or barnacle growth, enhancing longevity.
  • Safety Features: The internal brake system prevents unintended tab movements during navigation or when reversing.
  • Easy Control: Lectrotab's one-touch leveling LED control allows for seamless trim tab adjustments at your fingertips.

Technical Specifications

Trim Tab Size (L x W) 9" x 18" (23 x 46 cm)
Suitable Boat Length 21' to 30' (6.5 to 9 M)
Trim Tab Material 12 gauge, 304 Stainless Steel
Actuator Voltage 12 V DC
Actuator Stroke Length 2.25" (57 mm)
Actuator Cable Length 23' (7 M)
Actuator Vertical Height 11.875" (302 mm)
Rocker Switch Dimensions (W x H) 3" x 3" (77 x 77 mm)
Rocker Switch Mounting Hole Cutout (H x W) 2.25" x 2.5" (57 x 64 mm)
Rocker Switch Operating Voltage 12 or 24 V

Package Contents

  • One (1) One-Touch Control Unit
  • Two (2) Stainless Steel Trim Tabs
  • Two (2) Actuators with 23' (7 M) Cables
  • Instruction Manual

Note: Sold as a kit.

Additional Specifications

  • Actuator Type: Electro-Mechanical
  • Construction: Stainless Steel
  • Box Dimensions: 2"H x 5"W x 6"L
  • Weight: 22.05 lbs
