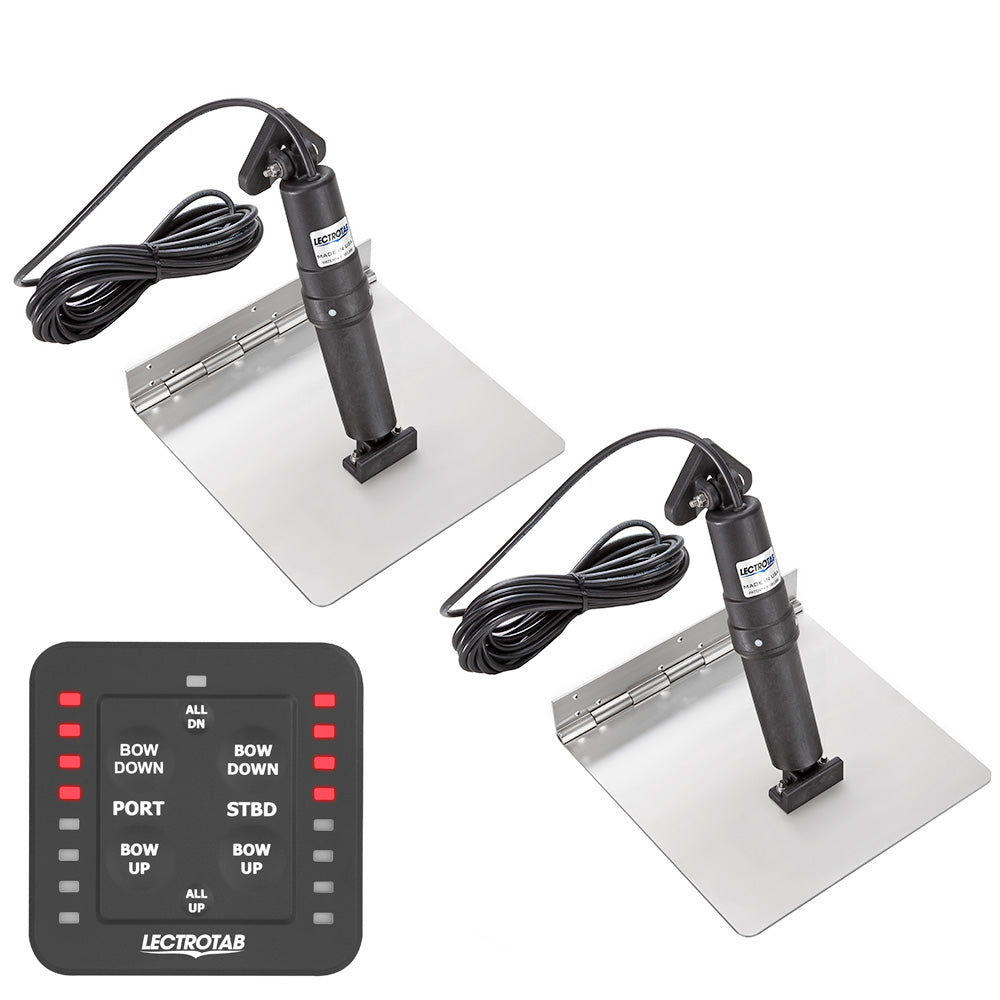

Lectrotab XKA Stainless Steel Trim Tab Kit w/One-Touch Control - 9 x 12

The XKA Stainless Steel Trim Tab Kit with One-Touch Control is engineered for boat enthusiasts seeking superior performance and reliability. Crafted from high-quality stainless steel, this trim tab kit offers effortless installation, precise control, and maintenance-free operation, ensuring your boat handles smoothly in any condition.

Key Features

• Robust Construction: Continuous rolled and pinned hinge design provides exceptional strength without the need for welding.
• Durable Actuator: Precision-engineered actuator ensures quiet operation and reliable performance with up to 1000 lbs of force.
• Corrosion Resistant: Non-metallic external structure prevents corrosion and withstands exposure to sun and water.
• Maintenance-Free: No hydraulic systems or oil leaks, offering a clean and hassle-free experience.
• Easy Installation: Self-contained actuator assembly with standard or low profile transom mounting brackets.
• Advanced Control: One-touch leveling LED control for effortless trim tab adjustments.
• Safety Features: Internal brake system prevents unwanted tab movement during navigation.
• Enhanced Durability: Upper ram seal protected from damage caused by fouled rams or barnacle growth.

Technical Specifications

Specification	Details
Trim Tab Size (L x W)	9" x 12" (23 x 30 cm)
Suitable Boat Length	16' to 25' (5 to 7.5 M)
Trim Tab Material	12 gauge, 304 Stainless Steel
Actuator DC Voltage	12 V
Actuator Stroke Length	2.25" (57 mm)
Actuator Cable Length	23' (7 M)
Actuator Vertical Height	11.875" (302 mm)
Rocker Switch Dimensions (W x H)	3" x 3" (77 x 77 mm)
Rocker Switch Mounting Hole Cutout (H x W)	2.25" x 2.5" (57 to 64 mm)
Rocker Switch Operating Voltage	12 or 24 V

What's Included

• One (1) One-Touch Control
• Two (2) Stainless Steel Trim Tabs
• Two (2) Actuators with 23' (7 M) Cables
• Instruction Manual

Sold as a Kit

Additional Specifications

• Actuator Type: Electro-Mechanical
• Construction: Stainless Steel
• Box Dimensions: 2"H x 5"W x 6"L
• Weight: 17.15 lbs

Resources

Owner's Manual (PDF)

Brochure (PDF)
