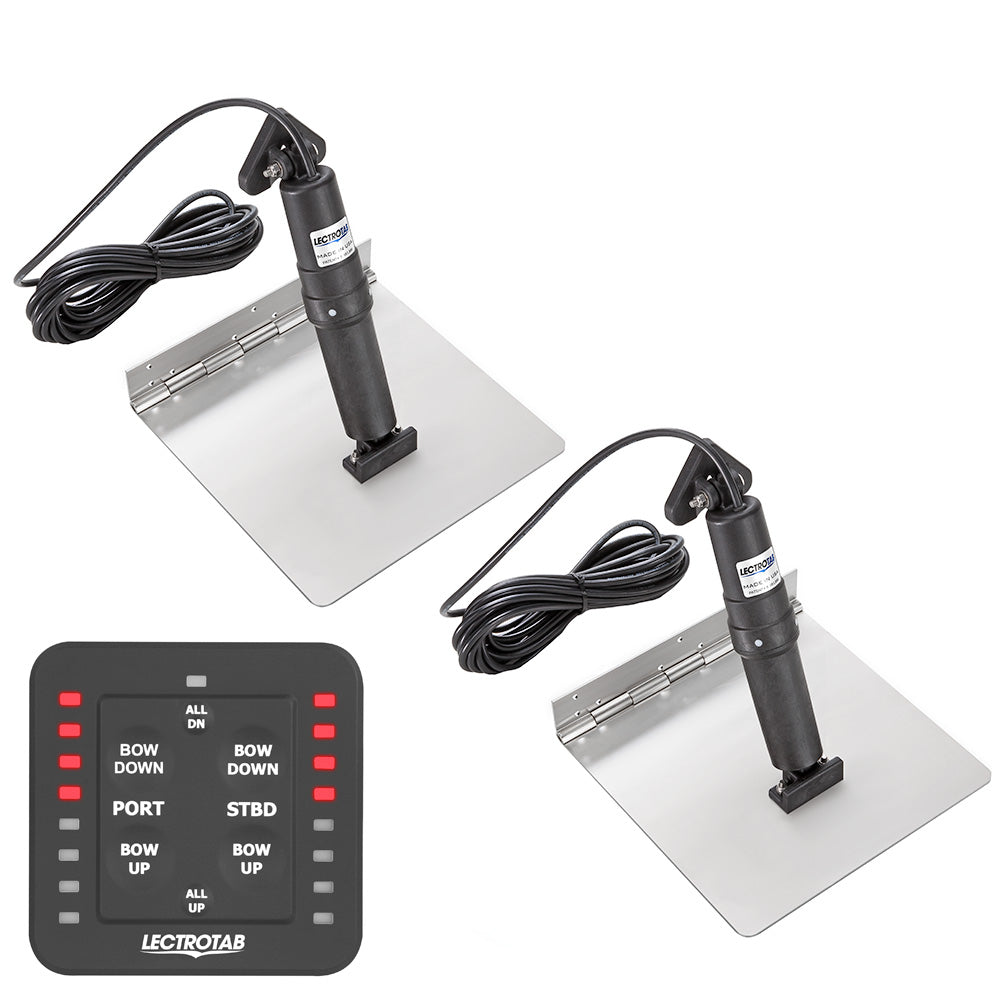

Lectrotab XKA Stainless Steel Trim Tab Kit w/One-Touch Control - 12 x 9

The XKA Stainless Steel Trim Tab Kit with One-Touch Control is engineered for boat owners seeking superior performance and reliability. Crafted from high-quality stainless steel, this trim tab kit ensures durability and precise control, enhancing your boating experience with effortless operation and maintenance-free design.

Key Features

• Robust Construction: Continuous rolled and pinned hinge design provides exceptional strength without the need for welding.
• Corrosion-Resistant: Made from 12 gauge, 304 stainless steel, ensuring longevity in harsh marine environments.
• Maintenance-Free Operation: Non-hydraulic system eliminates oil leaks and reduces upkeep.
• Quiet and Efficient: Precision-engineered actuator ensures silent operation with maximum lift force.
• Accurate Positioning: Internal brake system maintains tab position during maneuvers and at rest.
• Easy Installation: Self-contained actuator assembly in a non-metallic sealed housing requires no internal boat installation.
• High Load Capacity: Actuators are fully load tested to handle up to 1000 lbs of force.
• One-Touch Control: LED-enabled rocker switch allows effortless trim tab adjustments at your fingertips.

Technical Specifications

Specification	Details
Trim Tab Size (L x W)	12" x 9" (30 x 23 cm)
Suitable Boat Length	18' to 29' (5.5 to 8.5 M)
Trim Tab Material	12 gauge, 304 Stainless Steel
Actuator Type	Electro-Mechanical
Actuator DC Voltage	12 V
Actuator Stroke Length	2.25" (57 mm)
Actuator Cable Length	23' (7 M)
Actuator Vertical Height	11.875" (302 mm)
Rocker Switch Dimensions (W x H)	3" x 3" (77 x 77 mm)
Rocker Switch Mounting Hole Cutout (H x W)	2.25" x 2.5" (57 to 64 mm)
Rocker Switch Operating Voltage	12 or 24 V
Construction	Stainless Steel
Box Dimensions	2"H x 5"W x 6"L
Weight	16.95 lbs

What's Included

• One (1) One-Touch Control unit
• Two (2) Stainless Steel Trim Tabs
• Two (2) Actuators with 23' (7 M) Cables
• Comprehensive Instruction Manual

*Sold as a Kit

Additional Resources

• Owner's Manual (PDF)
• Brochure (PDF)
