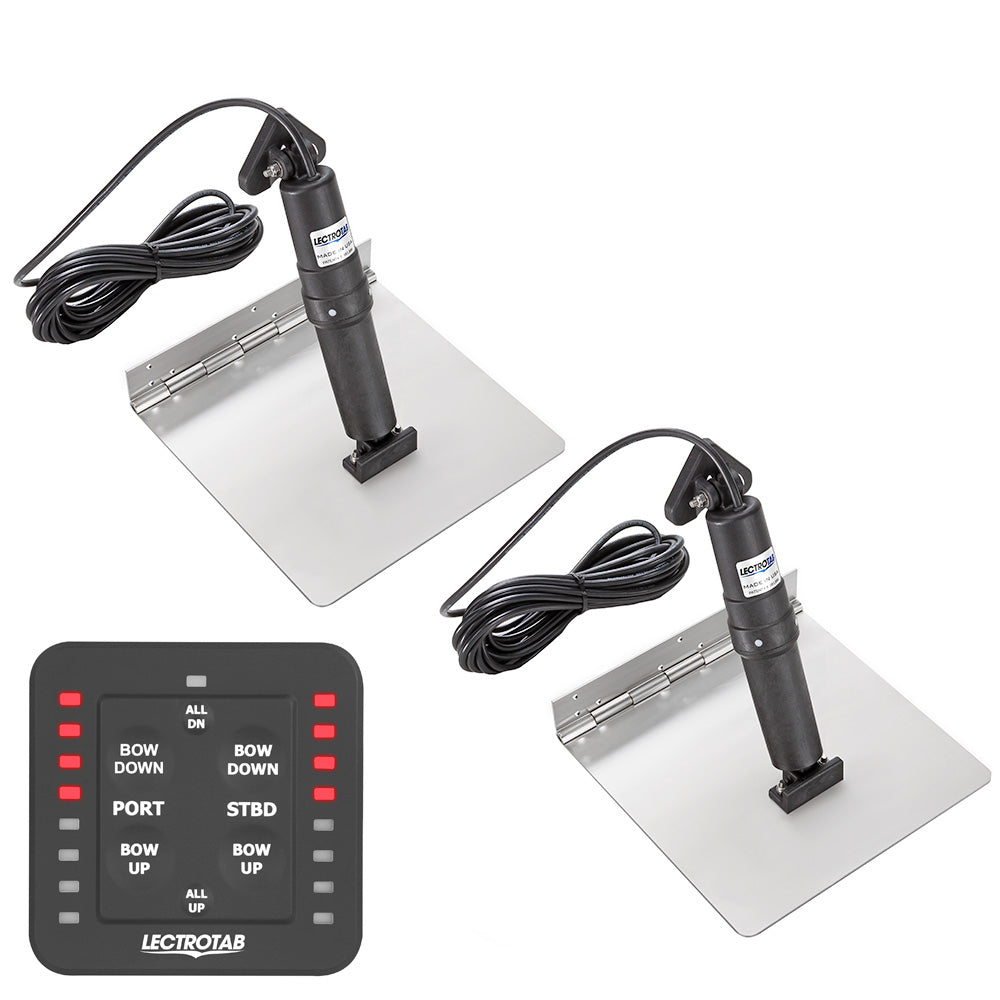

Lectrotab XKA Stainless Steel Trim Tab Kit w/One-Touch Control - 12 x 24

The XKA Stainless Steel Trim Tab Kit with One-Touch Control delivers superior performance and reliability for your boat. Engineered with high-grade stainless steel and innovative design features, this trim tab kit ensures optimal boat handling, enhanced lift force, and effortless control, making it an essential upgrade for vessels between 28' and 48'.

Product Features

• Robust Construction: Continuous rolled and pinned hinges provide exceptional strength while eliminating the need for welding, ensuring long-lasting durability.
• Corrosion Resistance: Made from 12 gauge, 304 stainless steel, the trim tabs resist corrosion and withstand harsh marine environments.
• Maintenance-Free Design: The non-hydraulic, sealed actuator housing requires no maintenance and prevents oil leaks, offering a hassle-free experience.
• Quiet Operation: Precision-engineered actuators ensure smooth and silent movement, enhancing your boating experience.
• High Lift Force: Actuators are fully load tested to push up to 1000 lbs of force, providing maximum lift and precise tab positioning.
• Integrated Control: Lectrotab’s one-touch leveling LED control system places complete control of your trim tabs at your fingertips.
• Easy Installation: The kit is self-contained with a non-metallic, permanently sealed housing, allowing for straightforward installation without the need for internal boat components.
• Advanced Protection: Features an internal brake system to prevent unwanted tab movement during towing or reversing and protects upper ram seals from damage due to fouling or barnacle growth.

Technical Specifications

Specification	Details
Trim Tab Size (L x W)	12" x 24" (30 x 61 cm)
Suitable Boat Length	28' to 48' (8.5 to 14.5 M)
Trim Tab Material	12 gauge, 304 Stainless Steel
Actuator Type	Electro-Mechanical
Actuator DC Voltage	12 V
Actuator Stroke Length	2.25" (57 mm)
Actuator Cable Length	23' (7 M)
Actuator Vertical Height	11.875" (302 mm)
Rocker Switch Dimensions (W x H)	3" x 3" (77 x 77 mm)
Rocker Switch Mounting Hole Cutout (H x W)	2.25" x 2.5" (57 to 64 mm)
Rocker Switch Operating Voltage	12 or 24 V
Box Dimensions	2"H x 5"W x 6"L
Weight	31.45 lbs

What's Included

• One (1) One-Touch Control
• Two (2) Stainless Steel Trim Tabs
• Two (2) Actuators with 23' (7 M) Cables
• Instruction Manual

*Sold as a Kit

Additional Specifications

• Construction: Stainless Steel
• Actuator Type: Electro-Mechanical

Resources

• Owner's Manual (PDF)
• Brochure (PDF)
