Lectrotab XKA Stainless Steel Trim Tab Kit w/One-Touch Control - 12 x 18

The XKA Stainless Steel Trim Tab Kit with One-Touch Control is engineered for marine enthusiasts seeking unparalleled strength and seamless performance. Designed specifically for boats ranging from 20 to 40 feet, this kit ensures precise tab positioning and effortless installation, enhancing your vessel's handling and stability on the water.

Product Features

• Robust Construction: Crafted from 12 gauge, 304 stainless steel, the continuous rolled and pinned hinge design provides exceptional strength and eliminates the need for welding.
• Maintenance-Free Operation: The non-hydraulic, maintenance-free design ensures quiet operation and long-term reliability without the risk of oil leaks.
• Advanced Actuator: The precision-engineered electro-mechanical actuator delivers up to 1000 lbs of force, ensuring maximum lift and accurate tab positioning.
• Corrosion Resistant: The non-metallic external structure is impervious to corrosion and will not deteriorate under sun exposure or underwater conditions.
• Easy Installation: The actuator assembly is housed in a permanently sealed, non-metallic casing, allowing for straightforward installation without internal boat modifications.
• One-Touch Control: Manage your trim tabs effortlessly with Lectrotab's LED-equipped one-touch leveling control, keeping complete control at your fingertips.
• Durable Seals: Upper ram seals are protected from damage caused by fouled rams or barnacle growth, ensuring longevity and consistent performance.
• Safety Features: An internal brake system prevents unwanted tab movement during navigation or reverse maneuvers.
• Pressure Equalization: The internal pressure equalization system enhances the durability and efficiency of the trim tabs.

Technical Specifications

Specification	Details
Trim Tab Size (L x W)	12" x 18" (30 x 46 cm)
Compatible Boat Length	20' to 40' (6 to 12 m)
Trim Tab Material	12 gauge, 304 Stainless Steel
Actuator Type	Electro-Mechanical
Actuator DC Voltage	12 V
Actuator Stroke Length	2.25" (57 mm)
Actuator Cable Length	23' (7 m)
Actuator Vertical Height	11.875" (302 mm)
Rocker Switch Dimensions (W x H)	3" x 3" (77 x 77 mm)
Rocker Switch Mounting Hole Cutout (H x W)	2.25" x 2.5" (57 x 64 mm)
Rocker Switch Operating Voltage	12 or 24 V
Box Dimensions	2"H x 5"W x 6"L
Weight	26.95 lbs

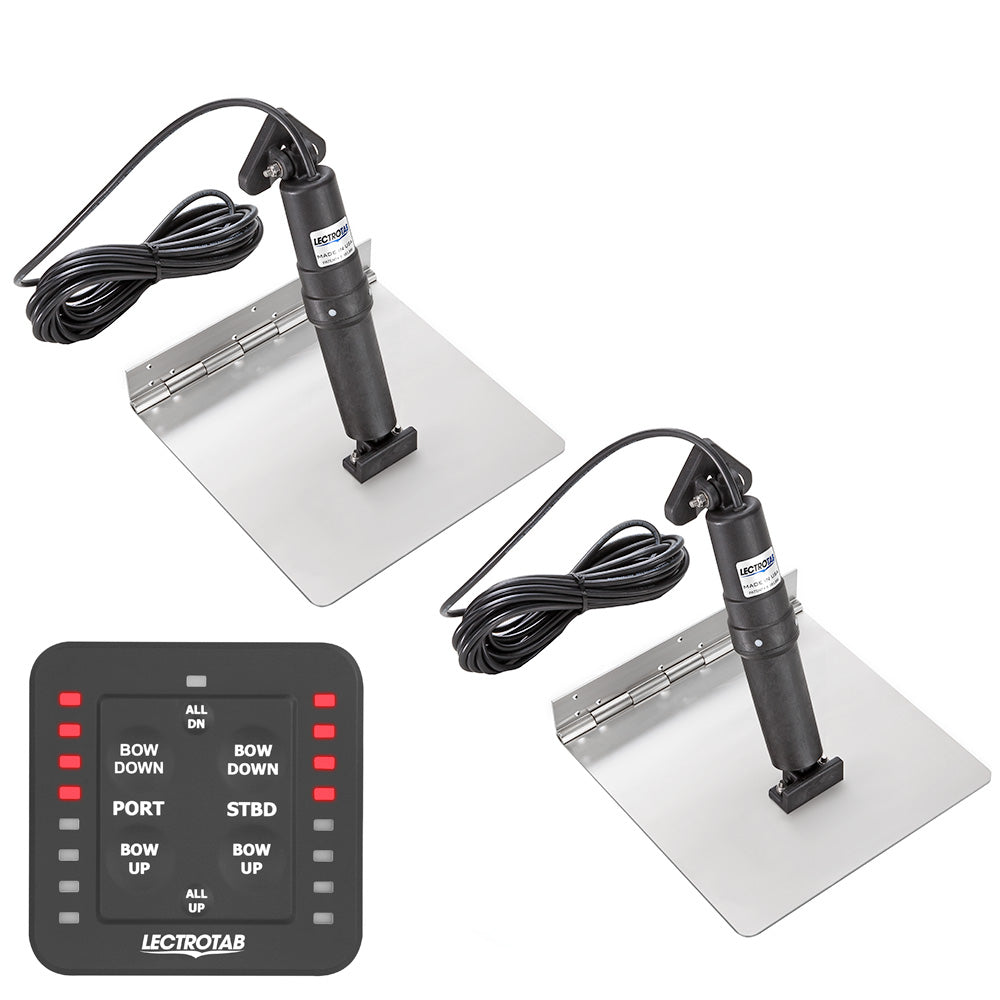

What's Included

• One (1) One-Touch Control Unit
• Two (2) Stainless Steel Trim Tabs
• Two (2) Actuators with 23' (7 m) Cables
• Comprehensive Instruction Manual

Please note: This product is sold as a complete kit.

Additional Specifications

• Internal Brake System: Prevents unwanted movement of trim tabs during navigation.
• Pressure Equalization: Enhances durability and operational efficiency.

Resources

• Owner's Manual (PDF)
• Brochure (PDF)
