Lectrotab  |  SKU: LOS-96275

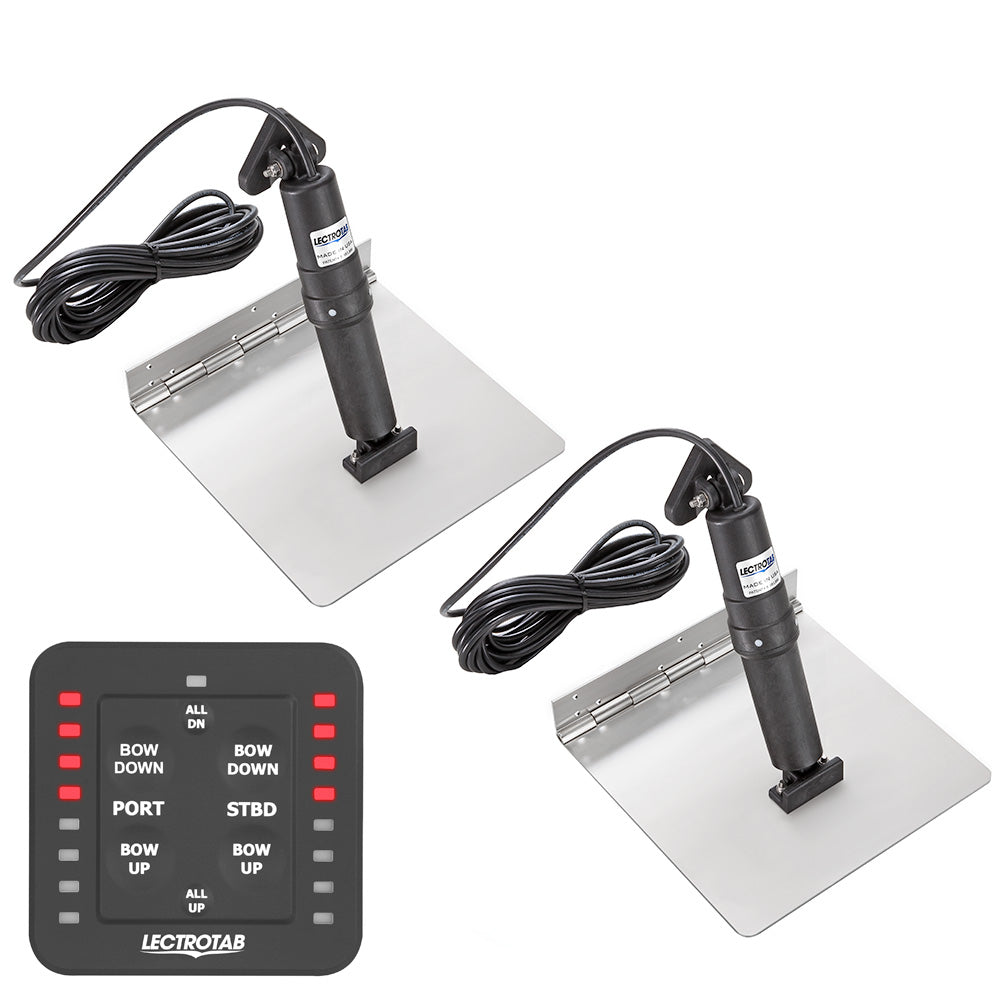

Lectrotab XKA Stainless Steel Trim Tab Kit w/One-Touch Control - 12 x 12

$1,054.00 USD $1,240.00

Product Description

The XKA Stainless Steel Trim Tab Kit with One-Touch Control is engineered for boat enthusiasts seeking superior performance and durability. Designed for vessels between 18' to 32', this 12" x 12" kit ensures precise control and reliable operation on the water.

Unmatched Durability and Reliability

The Lectrotab stainless steel trim tabs are crafted from 12 gauge, 304 stainless steel, providing exceptional strength and longevity. The continuous rolled and pinned hinge design eliminates the need for welding, enhancing the kit's resilience against the harsh marine environment.

Advanced Actuation System

Equipped with a precision-engineered electro-mechanical actuator, this trim tab kit offers quiet, maintenance-free operation. The non-hydraulic design ensures there are no oil leaks, making it a cleaner and safer choice for your boat. The actuator is housed in a non-metallic, permanently sealed casing, preventing corrosion and eliminating the need for internal installation.

One-Touch Control with LED Indicators

Take full command of your trim tabs with the intuitive one-touch leveling LED control. Easily adjust your trim tabs with the rocker's simple operation, allowing for seamless adjustments while on the water.

Key Features

  • Robust Construction: Continuous rolled and pinned hinge provides added strength and eliminates welding
  • Protected Seals: Upper ram seal location is safeguarded against damage from fouling or barnacle growth
  • Pressure Equalization: Internal pressure equalization system for smooth operation
  • Secure Positioning: Internal brake system prevents unwanted tab movement during navigation
  • Quiet and Efficient: Designed for silent operation
  • High Load Capacity: Actuators are fully load tested to deliver up to 1000 lbs of force
  • Corrosion Resistant: Non-metallic external structure resists corrosion and UV degradation

Technical Specifications

Specification Details
Trim Tab Size (L x W) 12" x 12" (30 x 30 cm)
Boat Length Compatibility 18' to 32' (5.5 to 9.5 m)
Material 12 gauge, 304 Stainless Steel
Actuator Type Electro-Mechanical
DC Voltage 12 V
Stroke Length 2.25" (57 mm)
Cable Length 23' (7 m)
Actuator Height 11.875" (302 mm)
Rocker Switch Dimensions (W x H) 3" x 3" (77 x 77 mm)
Rocker Switch Mounting Hole Cutout (H x W) 2.25" x 2.5" (57 to 64 mm)
Rocker Switch Operating Voltage 12 or 24 V
Construction Stainless Steel
Box Dimensions 2"H x 5"W x 6"L
Weight 19.15 lbs

What's Included

  • One (1) One-Touch Control Panel
  • Two (2) Stainless Steel Trim Tabs
  • Two (2) Actuators with 23' (7 m) Cables
  • Instruction Manual

*Sold as a Kit
