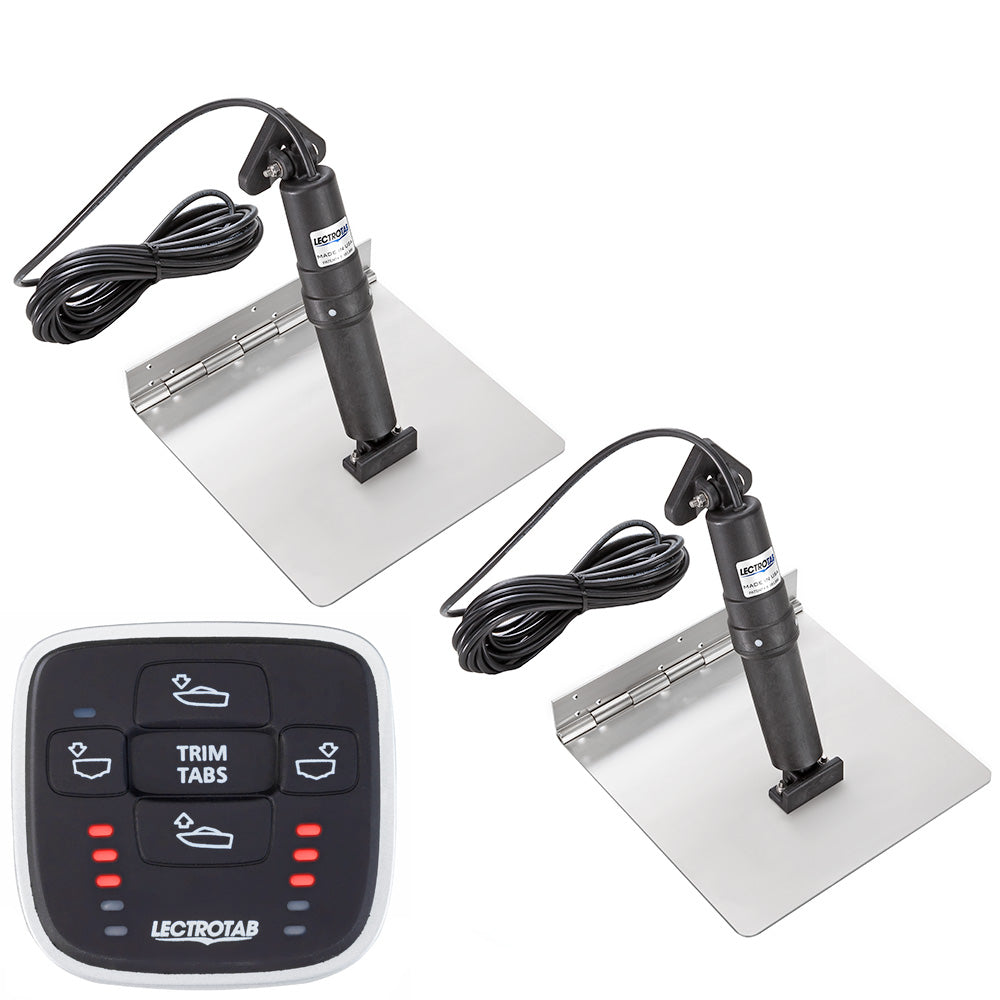

Lectrotab XKA Stainless Steel Trim Tab Kit w/MLC-1 Control - 9 x 9

The XKA Stainless Steel Trim Tab Kit with MLC-1 Control - 9"x9" is designed for boaters who demand superior performance and durability. This high-quality trim tab kit enhances your vessel's handling and stability, ensuring a smooth and efficient ride in all marine conditions.

Unmatched Strength and Reliability

Constructed from 12 gauge, 304 stainless steel, the Lectrotab trim tabs offer exceptional strength and longevity. The continuous rolled and pinned hinge design eliminates the need for welding, providing a robust and reliable connection that withstands the harsh marine environment.

Precision-Engineered Actuators

The kit includes precision-engineered actuators that deliver quiet operation and a maintenance-free, non-hydraulic design. These corrosion-resistant actuators ensure accurate tab positioning and provide maximum lift force, enhancing your boat's performance without the risk of oil leaks associated with hydraulic systems.

Advanced Control with MLC-1

The Lectrotab MLC-1 is a microprocessor-based trim tab controller that allows you to move both tabs simultaneously with the touch of a single button. It features LED tab position indicators that automatically dim in darkness and brighten in sunlight, providing clear visibility under all lighting conditions.

Key Features

• Durable Construction: Continuous rolled and pinned hinges eliminate the need for welding, ensuring added strength.
• Protected Seals: Upper ram seal location is safeguarded against damage from fouled rams or barnacle growth.
• Pressure Equalization: Internal pressure equalization system enhances reliability.
• Secure Operation: Internal brake system prevents unwanted tab movement when underway or backing down.
• Quiet Performance: Actuators operate smoothly and silently.
• High Load Capacity: Actuators are fully load tested to push up to 1000 lbs of force.
• Corrosion-Resistant: Non-metallic external structure resists corrosion and does not deteriorate under sun or water exposure.

Technical Specifications

Specification	Description
Trim Tab Size (L x W)	9" x 9" (23 x 23 cm)
Boat Length Compatibility	14' to 19' (4 to 6 meters)
Material	12 gauge, 304 Stainless Steel
Actuator DC Voltage	12 V
Actuator Stroke Length	2.25" (57 mm)
Actuator Cable Length	23' (7 meters)
Actuator Vertical Height	11.875" (302 mm)
Control Dimensions (W x H)	3.15" x 3.07" (80 x 77 mm)
Control Mounting Hole Cutout	2" (50 mm)
Control Operating Voltage	12 or 24 V

What’s Included

• One (1) Manual Leveling Control
• Two (2) Stainless Steel Trim Tabs
• Two (2) Actuators with 23' (7 m) Cables
• Instruction Manual

*Sold as a Kit

Additional Specifications

• Actuator Type: Electro-Mechanical
• Construction: Stainless Steel
• Box Dimensions: 4"H x 5"W x 6"L
• Weight: 15.5 lbs

Easy Installation and Maintenance-Free Design

The fully self-contained actuator assembly is housed in a non-metallic, permanently sealed casing, ensuring no components need to be installed inside your boat. This design not only simplifies installation but also guarantees a maintenance-free experience, keeping your boat's interior free from potential contaminants.

Reliable Performance Without Hydraulic Systems

Unlike traditional hydraulic trim tabs, the XKA kit eliminates the risk of oil leaks, offering a cleaner and more environmentally friendly solution. The actuator can be mounted using either a standard or low-profile transom mounting bracket, providing flexibility to suit your boat's specific requirements.

Resources

Owner's Manual (PDF)
Brochure (PDF)
