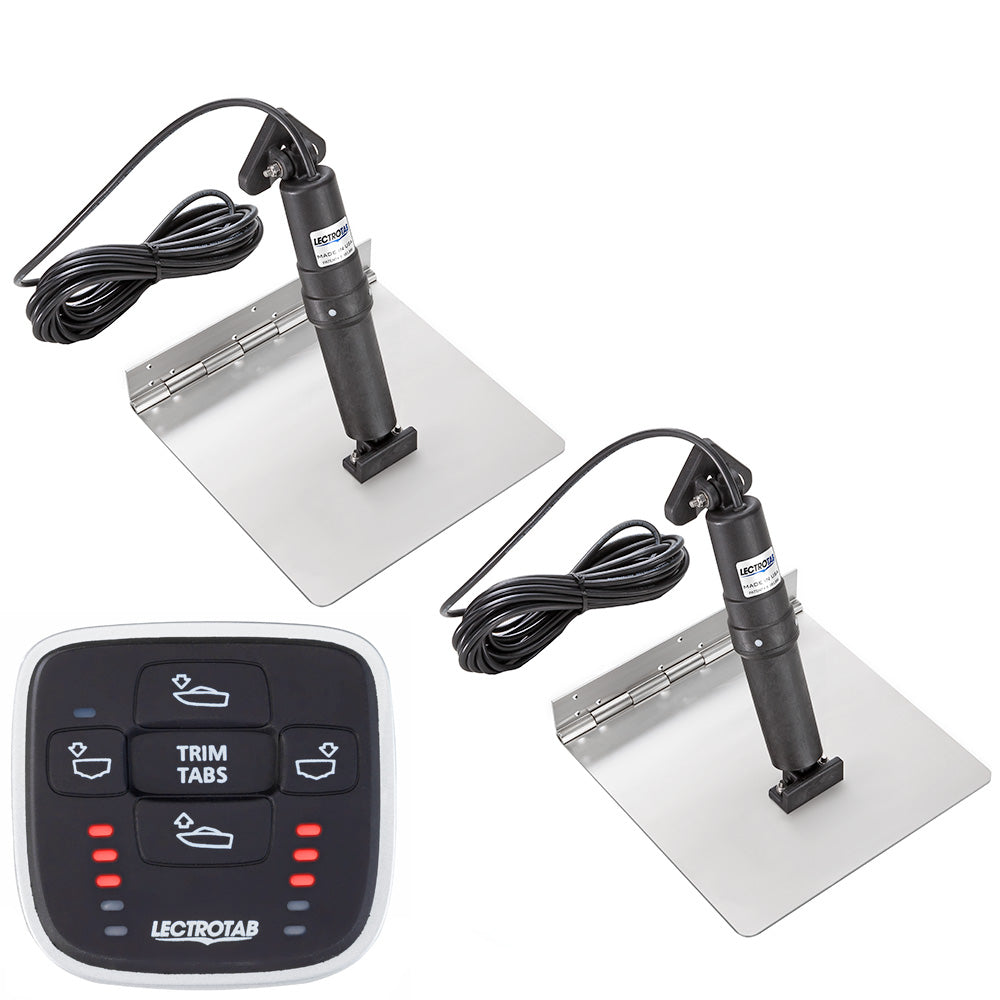

Lectrotab XKA Stainless Steel Trim Tab Kit w/MLC-1 Control - 9 x 24

The XKA Stainless Steel Trim Tab Kit with MLC-1 Control is engineered for boaters who demand exceptional performance and durability. Designed with high-quality stainless steel and advanced actuator technology, this trim tab kit ensures precise control, reliable operation, and effortless installation, enhancing your marine experience.

Product Overview

The XKA Stainless Steel Trim Tab Kit features robust construction with a continuous rolled and pinned hinge, eliminating the need for welding and ensuring unmatched strength. The precision-engineered actuator provides quiet, non-hydraulic, maintenance-free operation. This corrosion-resistant kit guarantees accurate tab positioning, maximum lift force, and a fully self-contained unit for hassle-free installation. Housed in a non-metallic, permanently sealed casing, the actuator assembly avoids any internal boat installation, preventing potential leaks and ensuring long-lasting performance.

Advanced Control with MLC-1

The Lectrotab MLC-1 is a state-of-the-art microprocessor-based trim tab controller that allows simultaneous movement of both tabs with a single button press. It features LED tab position indicators that automatically adjust brightness based on ambient light, enhancing visibility and ease of use in various lighting conditions.

Key Features

• Continuous rolled and pinned hinge for enhanced strength and no welding required
• Protected upper ram seal to prevent damage from fouling or barnacle growth
• Internal pressure equalization system for optimal performance
• Internal brake system to prevent unwanted tab movement while underway or reversing
• Quiet, smooth operation for a more enjoyable boating experience
• Actuators load tested to push up to 1,000 lbs of force
• Non-metallic external structure resists corrosion and withstands sun and water exposure

Technical Specifications

Specification	Details
Trim Tab Size (L x W)	9" x 24" (23 x 61 cm)
Suitable Boat Length	24' to 37' (7 to 11 M)
Trim Tab Material	12 gauge, 304 Stainless Steel
Actuator DC Voltage	12 V
Actuator Stroke Length	2.25" (57 mm)
Actuator Cable Length	23' (7 M)
Actuator Vertical Height	11.875" (302 mm)
Control Dimensions (W x H)	3.15" x 3.07" (80 x 77 mm)
Control Mounting Hole Cutout	2" (50 mm)
Control Operating Voltage	12 or 24 V

What's Included

• One (1) Manual Leveling Control
• Two (2) Stainless Steel Trim Tabs
• Two (2) Actuators with 23' (7 M) Cables
• Instruction Manual

Sold as a Kit

Additional Specifications

• Actuator Type: Electro-Mechanical
• Construction: Stainless Steel
• Box Dimensions: 4"H x 5"W x 6"L
• Weight: 27.5 lbs

Resources

Owner's Manual (PDF)

Brochure (PDF)
