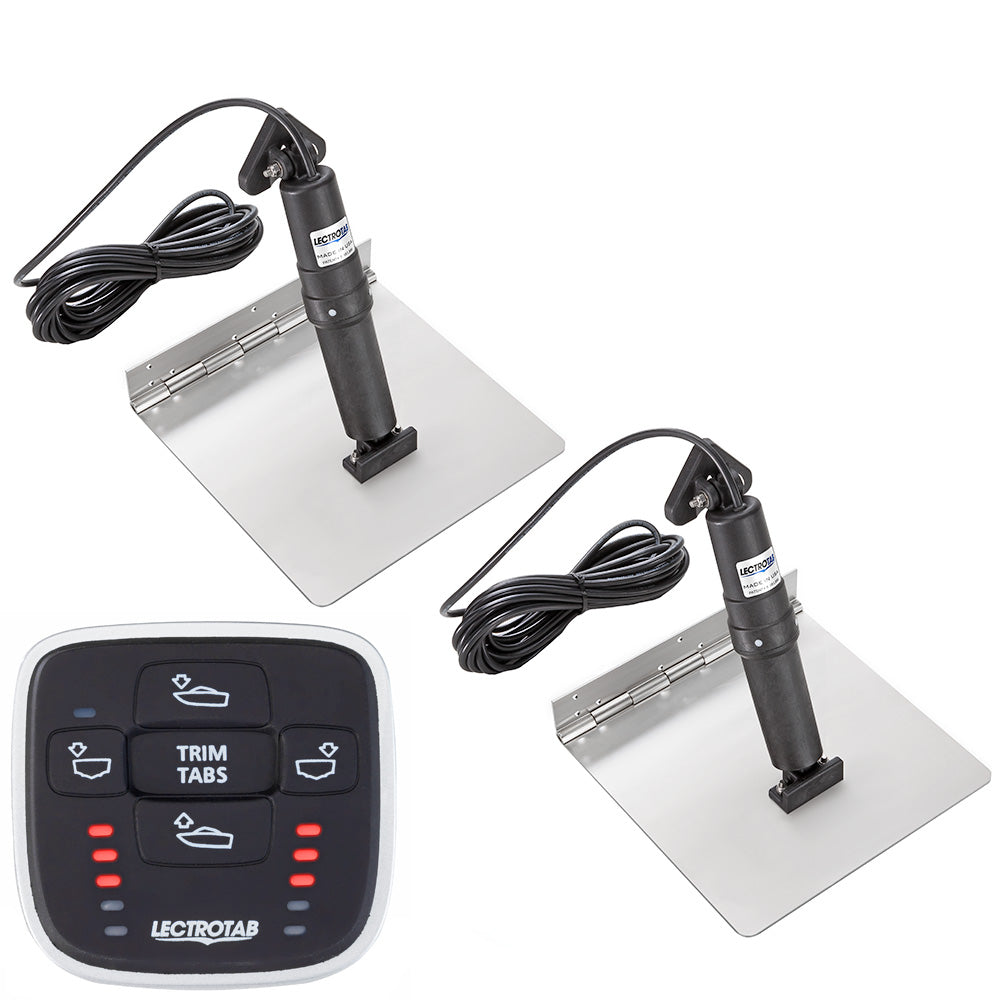

Lectrotab XKA Stainless Steel Trim Tab Kit w/MLC-1 Control - 9 x 12

The XKA Stainless Steel Trim Tab Kit with MLC-1 Control enhances your boat's performance and handling with its robust design and reliable operation. Crafted specifically for marine environments, this trim tab kit ensures your vessel maintains optimal balance and maneuverability in various water conditions.

Product Overview

The Lectrotab stainless steel trim tab system is engineered for unparalleled strength and durability. Each trim tab is constructed with a continuous rolled and pinned hinge, eliminating the need for welding and ensuring a long-lasting, corrosion-resistant solution. The precision-engineered actuator provides smooth, quiet operation without the hassles of hydraulic maintenance, making it an ideal choice for boat owners seeking a low-maintenance upgrade.

Key Features

• Superior Construction: Continuous rolled and pinned hinges offer added strength and eliminate welding, enhancing the trim tab's longevity.
• Durable Seals: Upper ram seal locations are protected from damage caused by fouling or barnacle growth, ensuring consistent performance.
• Pressure Equalization: Internal pressure equalization system maintains the integrity of the trim tabs under various conditions.
• Stability Control: Internal brake system prevents unwanted tab movement during cruising or reversing, enhancing safety and handling.
• Quiet Operation: The actuator operates smoothly and quietly, reducing noise for a more enjoyable boating experience.
• High Load Capacity: Actuators are fully load tested to push up to 1000 lbs of force, ensuring reliable performance.
• Corrosion-Resistant: Non-metallic external structures resist corrosion and withstand exposure to sun and water, extending the trim tab's lifespan.

Advanced Control with MLC-1

The Lectrotab MLC-1 microprocessor-based control allows for seamless operation of both trim tabs simultaneously with the touch of a single button. Equipped with LED position indicators, the control system automatically adjusts brightness based on ambient light conditions, ensuring visibility and ease of use in all environments.

Technical Specifications

Specification	Details
Trim Tab Size (L x W)	9" x 12" (23 x 30 cm)
Boat Length Compatibility	16' to 25' (5 to 7.5 M)
Trim Tab Material	12 gauge, 304 Stainless Steel
Actuator DC Voltage	12 V
Actuator Stroke Length	2.25" (57 mm)
Actuator Cable Length	23' (7 M)
Actuator Vertical Height	11.875" (302 mm)
Control Dimensions (W x H)	3.15" x 3.07" (80 x 77 mm)
Control Mounting Hole Cutout	2" (50 mm)
Control Operating Voltage	12 or 24 V

Packaging Includes

• One (1) Manual Leveling Control
• Two (2) Stainless Steel Trim Tabs
• Two (2) Actuators with 23' (7 M) Cables
• Instruction Manual

*Sold as a Kit

Additional Specifications

• Actuator Type: Electro-Mechanical
• Construction: Stainless Steel
• Box Dimensions: 4"H x 5"W x 6"L
• Weight: 17.3 lbs

Resources

Owner's Manual (PDF)

Brochure (PDF)
