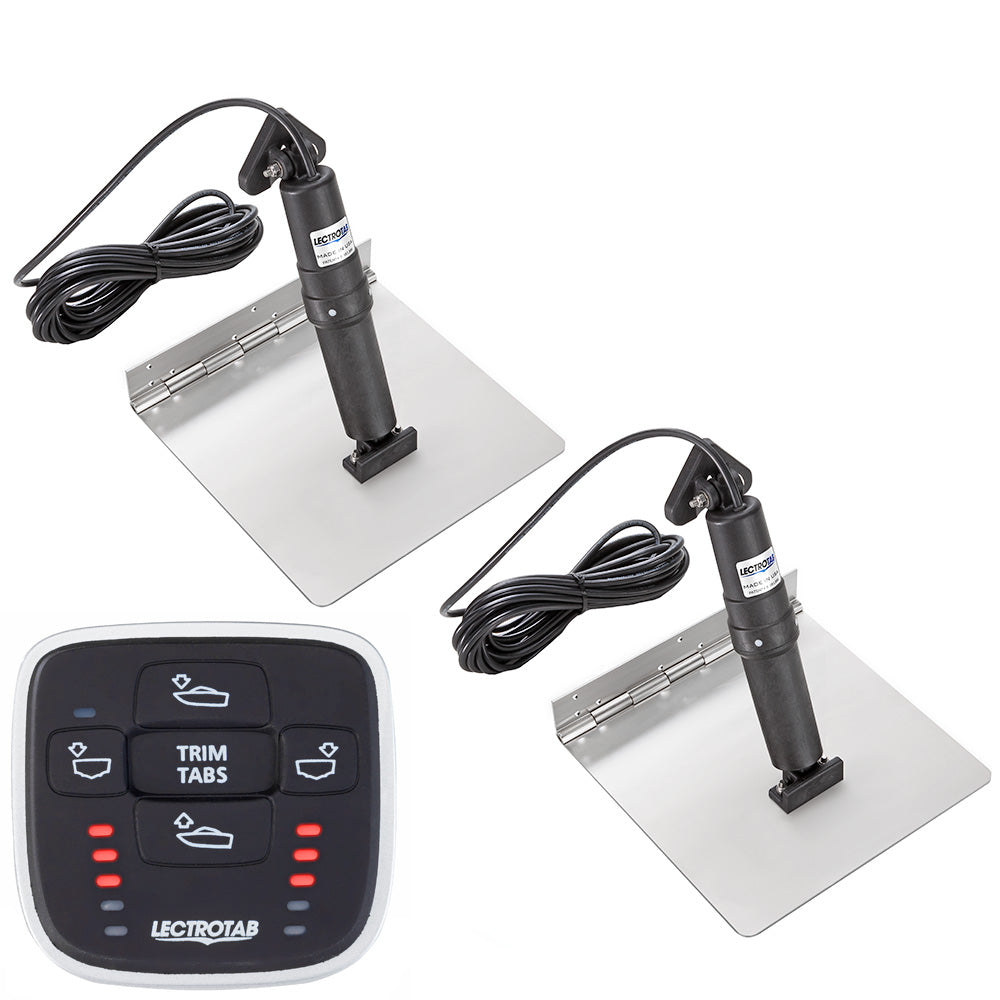

Lectrotab XKA Stainless Steel Trim Tab Kit w/MLC-1 Control - 12 x 24

The XKA Stainless Steel Trim Tab Kit with MLC-1 Control is engineered for boat enthusiasts seeking superior performance and durability. Designed to enhance your vessel's handling and stability, this 12 x 24 trim tab kit offers a corrosion-resistant solution that ensures reliable operation in various marine environments.

Product Overview

The Lectrotab stainless steel trim tab kit features a robust design with continuous rolled and pinned hinges, eliminating the need for welding and providing exceptional strength. Paired with a precision-engineered actuator, this kit delivers quiet, maintenance-free operation without the drawbacks of hydraulic systems. The non-metallic, permanently sealed actuator housing ensures corrosion resistance and easy installation, keeping all components securely outside your boat.

Advanced Control with MLC-1

The Lectrotab MLC-1 microprocessor-based control system allows you to manage both trim tabs simultaneously with a single button press. Equipped with LED indicators for tab positions, the system automatically adjusts brightness based on ambient light, enhancing visibility and ease of use in all conditions.

Key Features

• Stainless Steel Durability: Continuous rolled and pinned hinges provide added strength and eliminate the need for welding.
• Protected Ram Seals: Upper ram seal location is safeguarded against damage from fouled rams or barnacle growth.
• Pressure Equalization: Internal pressure equalization system enhances performance and longevity.
• Brake System: Integrated brake system prevents unwanted tab movement during transit or when reversing.
• Quiet Operation: Designed for minimal noise, ensuring a peaceful boating experience.
• High Load Capacity: Actuators are fully load tested to exert up to 1000 lbs of force.
• Corrosion-Resistant Structure: Non-metallic external components resist corrosion and withstand exposure to sun and water.

Technical Specifications

Specification	Details
Trim Tab Size (L x W)	12" x 24" (30 x 61 cm)
Suitable Boat Length	28' to 48' (8.5 to 14.5 M)
Trim Tab Material	12 gauge, 304 Stainless Steel
Actuator DC Voltage	12 V
Actuator Stroke Length	2.25" (57 mm)
Actuator Cable Length	23' (7 M)
Actuator Vertical Height	11.875" (302 mm)
Control Dimensions (W x H)	3.15" x 3.07" (80 x 77 mm)
Control Mounting Hole Cutout	2" (50 mm)
Control Operating Voltage	12 or 24 V
Actuator Type	Electro-Mechanical
Construction	Stainless Steel
Box Dimensions	4"H x 5"W x 6"L
Weight	31.6 lbs

What's Included

• One (1) Manual Leveling Control
• Two (2) Stainless Steel Trim Tabs
• Two (2) Actuators with 23' (7 M) Cables
• Instruction Manual

*Sold as a Kit

Additional Resources

Owner's Manual (PDF)
Brochure (PDF)
