Lectrotab XKA Stainless Steel Trim Tab Kit w/MLC-1 Control - 12 x 18

The XKA Stainless Steel Trim Tab Kit with MLC-1 Control is engineered to enhance your boating experience by providing superior stability and maneuverability. Crafted from high-quality stainless steel, this trim tab kit ensures long-lasting performance and effortless control, making it an essential upgrade for any marine vessel ranging from 20' to 40' in length.

Unmatched Strength and Durability

Constructed with 12 gauge, 304 stainless steel, the XKA trim tabs offer exceptional strength and resistance to corrosion. The continuous rolled and pinned hinge design eliminates the need for welding, ensuring a robust and reliable connection that withstands the harsh marine environment. Whether you're navigating calm waters or tackling rough seas, these trim tabs maintain their integrity and performance.

Advanced Actuation System

The precision-engineered electro-mechanical actuators provide smooth and quiet operation without the hassle of hydraulic maintenance. Each actuator is fully load tested to deliver up to 1000 lbs of force, ensuring maximum lift and precise tab positioning. The non-metallic, permanently sealed housing protects the actuator assembly from the elements, keeping all components corrosion-free and maintenance-free.

Intelligent MLC-1 Microprocessor Control

The MLC-1 control unit offers seamless integration and effortless operation. With the ability to move both trim tabs simultaneously at the touch of a single button, you can easily adjust your boat’s trim for optimal performance. The LED tab position indicators automatically adjust their brightness based on ambient light, enhancing visibility without drawing unnecessary attention in low-light conditions.

Key Features

• Stainless Steel Construction: 12 gauge, 304 stainless steel ensures durability and corrosion resistance.
• Continuous Rolled and Pinned Hinge: Adds strength and eliminates the need for welding.
• Corrosion-Free Actuator Housing: Non-metallic exterior prevents corrosion and deterioration.
• High-Force Actuators: Each actuator is capable of pushing up to 1000 lbs of force.
• Quiet and Maintenance-Free Operation: Electro-mechanical actuators require no hydraulic maintenance.
• Pressure Equalization System: Enhances reliability by preventing damage from fouled rams or barnacle growth.
• Internal Brake System: Prevents unwanted tab movement during navigation or reverse maneuvers.
• Flexible Mounting Options: Includes standard and low-profile transom mounting brackets to fit various boat configurations.

Technical Specifications

Specification	Details
Trim Tab Size (L x W)	12" x 18" (30 x 46 cm)
Suitable Boat Length	20' to 40' (6 to 12 M)
Trim Tab Material	12 gauge, 304 Stainless Steel
Actuator Type	Electro-Mechanical
Actuator DC Voltage	12 V
Actuator Stroke Length	2.25" (57 mm)
Actuator Cable Length	23' (7 M)
Actuator Vertical Height	11.875" (302 mm)
Control Dimensions (W x H)	3.15" x 3.07" (80 x 77 mm)
Control Mounting Hole Cutout	2" (50 mm)
Control Operating Voltage	12 or 24 V
Box Dimensions	4"H x 5"W x 6"L
Weight	27.1 lbs

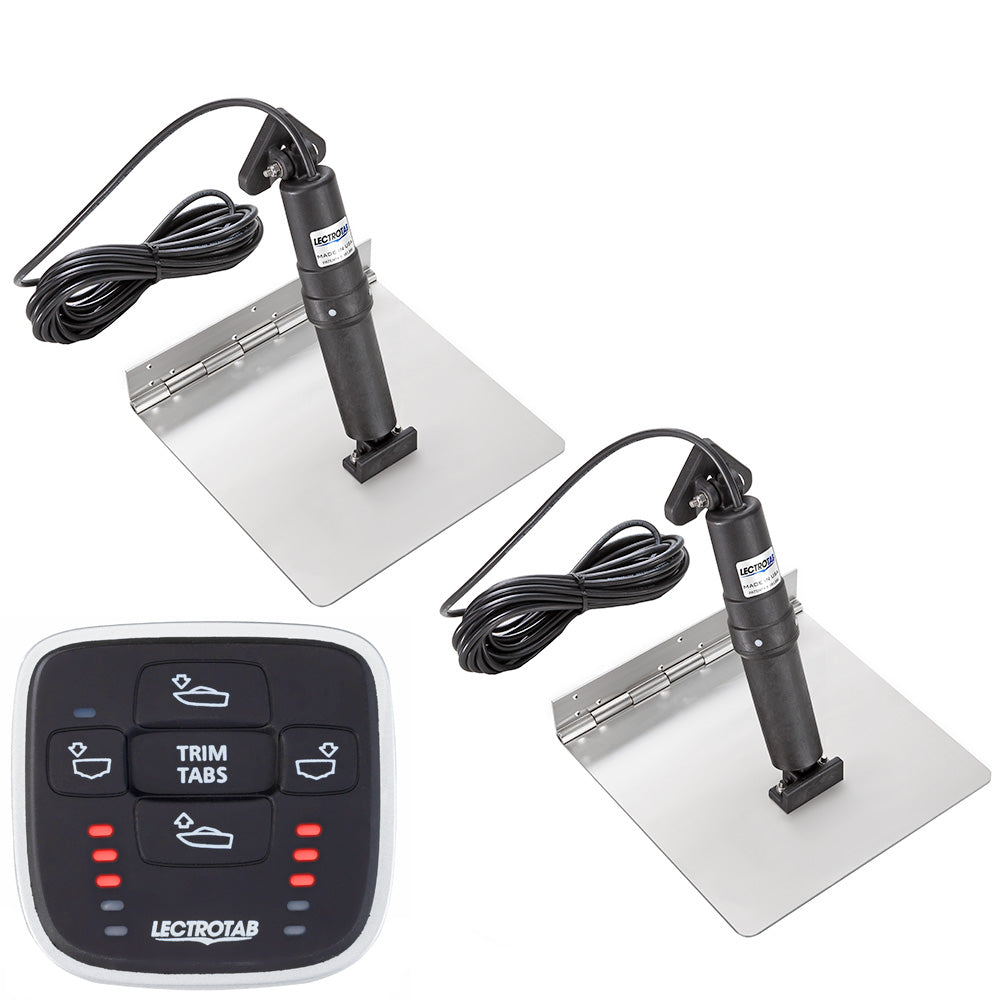

What's Included

• One (1) Manual Leveling Control
• Two (2) Stainless Steel Trim Tabs
• Two (2) Actuators with 23' (7 M) Cables
• Comprehensive Instruction Manual

*Sold as a Kit

Additional Specifications

• Actuator Type: Electro-Mechanical
• Construction: Stainless Steel
• Box Dimensions: 4"H x 5"W x 6"L
• Weight: 27.1 lbs

Resources

For more detailed information, please refer to the following documents:

• Owner's Manual (PDF)
• Brochure (PDF)
