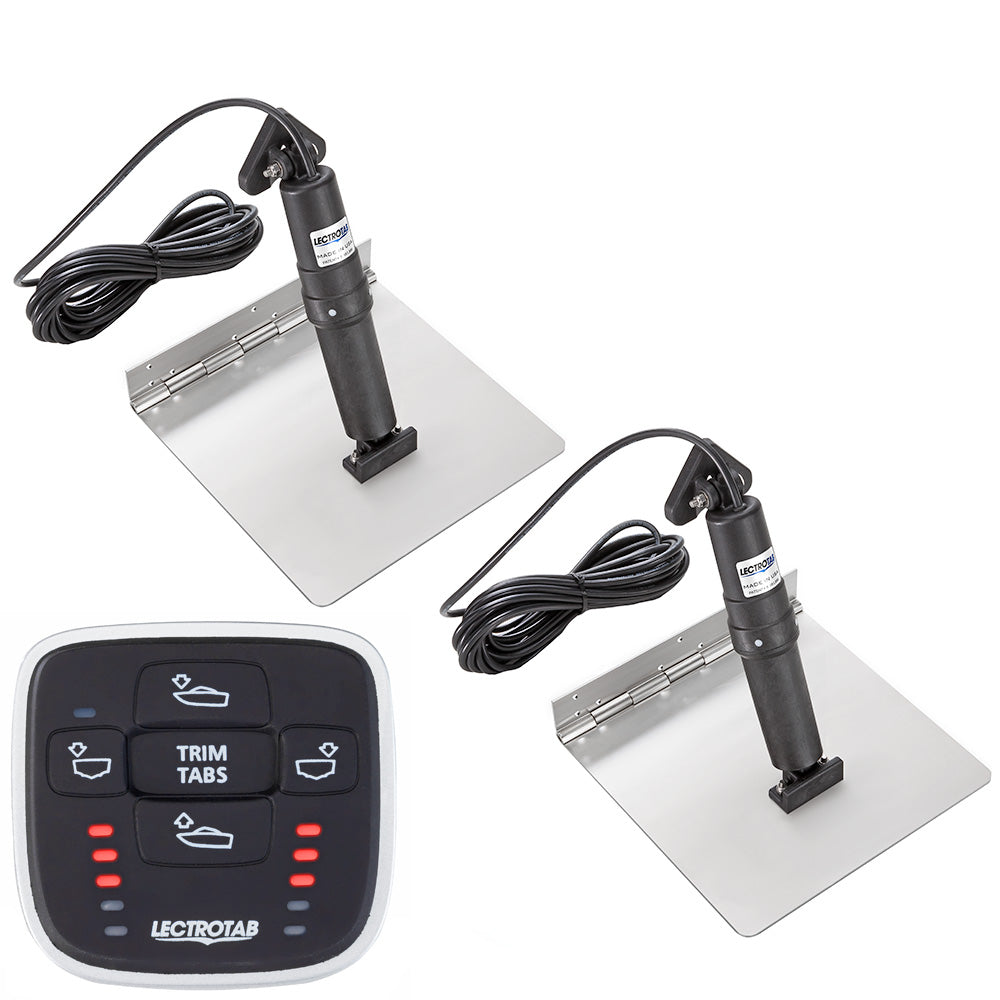

Lectrotab XKA Stainless Steel Trim Tab Kit w/MLC-1 Control - 12 x 12

The XKA Stainless Steel Trim Tab Kit with MLC-1 Control is engineered for marine enthusiasts seeking superior performance and durability. Designed specifically for boats ranging from 18' to 32', this 12" x 12" trim tab kit enhances your vessel's handling, lift, and overall maneuverability, ensuring a smooth and reliable boating experience.

Unmatched Durability and Design

Constructed from high-grade 304 stainless steel, the Lectrotab trim tabs offer exceptional strength and resistance to corrosion. The continuous rolled and pinned hinge design eliminates the need for welding, providing a robust and reliable solution that withstands the harsh marine environment. The non-metallic external structure ensures longevity without deterioration from sun exposure or underwater conditions.

Advanced Actuation System

The precision-engineered actuator guarantees quiet operation and a maintenance-free design. Capable of delivering up to 1000 lbs of force, the fully load-tested actuators ensure maximum lift and accurate tab positioning. The actuator assembly is housed in a non-metallic, permanently sealed casing, simplifying installation by keeping all components out of the boat.

• No hydraulic systems mean no risk of oil leaks, enhancing safety and cleanliness.
• Standard or low profile transom mounting brackets provide versatile installation options.

Smart Control with MLC-1

The Lectrotab MLC-1 microprocessor-based trim tab control allows simultaneous movement of both tabs with a single button press. Equipped with LED position indicators, the control unit automatically adjusts brightness based on ambient light conditions, ensuring visibility and ease of use day or night.

Key Features

• Continuous Rolled and Pinned Hinge: Enhances strength and eliminates welding requirements.
• Protected Ram Seal: Immune to damage from fouled rams or barnacle growth.
• Internal Pressure Equalization: Maintains optimal performance under varying conditions.
• Internal Brake System: Prevents unwanted tab movement during navigation or reverse maneuvers.
• Quiet Operation: Minimizes noise for a more enjoyable boating experience.
• High-Force Actuators: Each actuator is capable of pushing 1000 lbs of force.
• Corrosion-Resistant Construction: Non-metallic external structure withstands sun and water exposure.

Technical Specifications

Specification	Details
Trim Tab Size (L x W)	12" x 12" (30 x 30 cm)
Suitable Boat Length	18' to 32' (5.5 to 9.5 M)
Trim Tab Material	12 gauge, 304 Stainless Steel
Actuator DC Voltage	12 V
Actuator Stroke Length	2.25" (57 mm)
Actuator Cable Length	23' (7 M)
Actuator Vertical Height	11.875" (302 mm)
Control Dimensions (W x H)	3.15" x 3.07" (80 x 77 mm)
Control Mounting Hole Cutout	2" (50 mm)
Control Operating Voltage	12 or 24 V

Package Includes

• One (1) Manual Leveling Control
• Two (2) Stainless Steel Trim Tabs
• Two (2) Actuators with 23' (7 M) Cables
• Comprehensive Instruction Manual

Sold as a Kit

Additional Specifications

• Actuator Type: Electro-Mechanical
• Construction Material: Stainless Steel
• Box Dimensions: 4" H x 5" W x 6" L
• Weight: 19.3 lbs

Learn More

For detailed information, refer to the following documents:

• Owner's Manual (PDF)
• Brochure (PDF)
