Lectrotab XKA Stainless Steel Trim Tab Kit w/ALC-1 Control - 9 x 9

The XKA Stainless Steel Trim Tab Kit with ALC-1 Control is engineered for marine enthusiasts seeking superior performance and durability. Designed to enhance your boat's handling and efficiency, this 9" x 9" trim tab kit offers robust construction and advanced control features, ensuring a smooth and stable boating experience.

Unmatched Strength and Reliability

The Lectrotab stainless steel trim tab features a continuous rolled and pinned hinge, eliminating the need for welding and providing exceptional strength. Crafted from 12 gauge, 304 stainless steel, these trim tabs are built to withstand harsh marine environments without corroding or deteriorating.

Advanced Actuator Design

Paired with a precision-engineered actuator, the XKA Trim Tab Kit ensures quiet operation and a maintenance-free design. The non-hydraulic actuator is corrosion-resistant and provides accurate tab positioning with maximum lift force. Packaged in a non-metallic, permanently sealed housing, the actuator assembly is easy to install without requiring any components to be placed inside the boat.

Automatic Leveling Control (ALC)

The included ALC-1 Control automatically adjusts your trim tabs to maintain a level boat, enhancing comfort and enjoyment during your ride. It actively corrects roll from side to side and pitch from fore to aft, improving fuel economy and overall boating performance.

Key Features

• Continuous rolled and pinned hinge for increased strength and no welding required
• Upper ram seal protected from damage due to fouled ram or barnacle growth
• Internal pressure equalization system for optimal performance
• Internal brake system prevents unwanted tab movement while underway or reversing
• Quiet, smooth operation
• Actuators fully load tested to apply up to 1000 lbs of force
• Non-metallic external structure resists corrosion and UV degradation

Technical Specifications

Specification	Details
Trim Tab Size (L x W)	9" x 9" (23 x 23 cm)
Suitable Boat Length	14' to 19' (4 to 6 m)
Trim Tab Material	12 gauge, 304 Stainless Steel
Actuator DC Voltage	12 V
Actuator Stroke Length	2.25" (57 mm)
Actuator Cable Length	23' (7 m)
Actuator Vertical Height	11.875" (302 mm)
Control Dimensions (W x H)	3.15" x 3.07" (80 x 77 mm)
Control Mounting Hole Cutout	2" (50 mm)
Control Operating Voltage	12 or 24 V

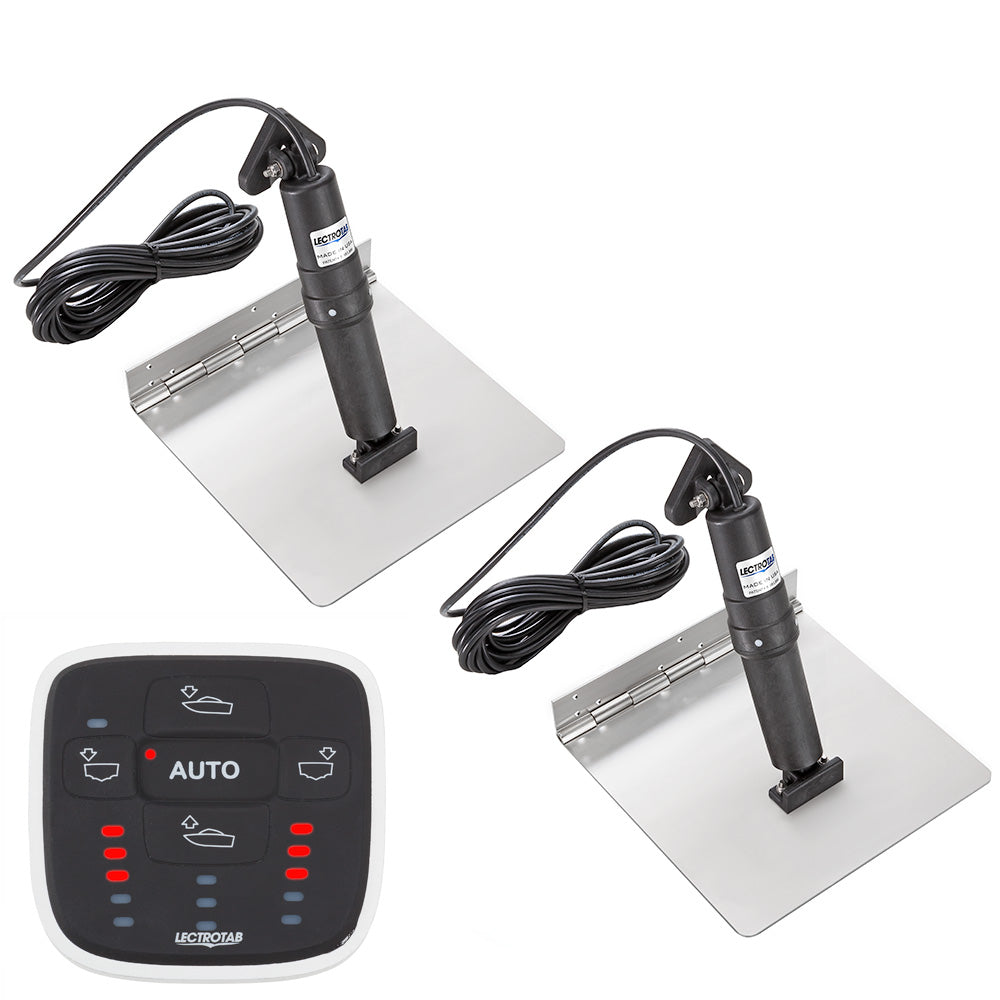

What’s Included

• One (1) Automatic Leveling Control (ALC-1)
• Two (2) Stainless Steel Trim Tabs
• Two (2) Actuators with 23' (7 m) Cables
• Instruction Manual

Note: Sold as a kit.

Additional Specifications

• Actuator Type: Electro-Mechanical
• Construction: Stainless Steel
• Box Dimensions: 2" H x 4" W x 6" L
• Weight: 15.45 lbs

Downloads

• Owner's Manual (PDF)
• Brochure (PDF)
