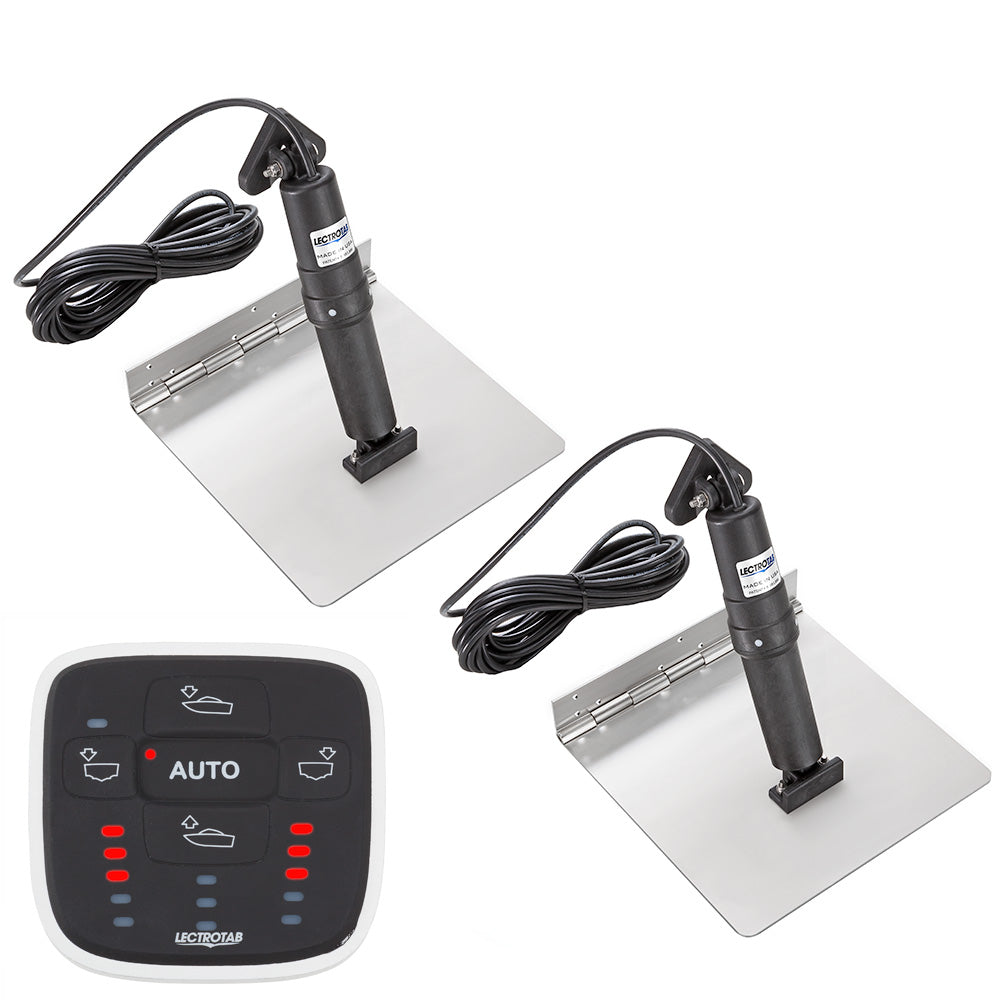

Lectrotab XKA Stainless Steel Trim Tab Kit w/ALC-1 Control - 9 x 24

The XKA Stainless Steel Trim Tab Kit with ALC-1 Control is engineered to enhance your boating experience with superior strength, reliability, and advanced automatic leveling capabilities. Designed for boats ranging from 24' to 37', this trim tab kit ensures optimal performance and fuel efficiency, all while maintaining a sleek, corrosion-resistant profile.

Exceptional Design and Durability

Crafted from high-grade 304 stainless steel, the Lectrotab trim tabs feature a continuous rolled and pinned hinge, eliminating the need for welding and ensuring unparalleled strength. This robust construction is complemented by an internal pressure equalization system, making the tabs resistant to damage from fouled rams or barnacle growth.

Advanced Actuation and Control

The precision-engineered actuator in this kit delivers quiet, maintenance-free operation without the drawbacks of hydraulic systems. Each actuator is fully load tested to provide up to 1000 lbs of force, ensuring maximum lift and accurate tab positioning. Encased in a non-metallic, permanently sealed housing, the actuators are protected from corrosion and environmental damage, with no components requiring installation inside your boat.

Automatic Leveling Control (ALC)

The ALC-1 Control automatically adjusts your trim tabs to maintain a level boat, enhancing comfort and stability on the water. It effectively corrects roll from side to side and pitch from fore to aft, improving your boating experience and fuel economy. The control unit is available with either a standard or low profile transom mounting bracket to suit your installation needs.

Key Features

• Continuous Rolled and Pinned Hinge: Provides added strength and eliminates the need for welding.
• Durable Ram Seals: Upper ram seals are protected from damage caused by fouled rams or barnacle growth.
• Internal Pressure Equalization: Enhances the longevity and reliability of the trim tabs.
• Internal Brake System: Prevents unwanted tab movement while underway or reversing.
• Quiet Operation: Operates smoothly and silently for a more enjoyable ride.
• High-Force Actuators: Capable of pushing up to 1000 lbs of force.
• Corrosion-Resistant Structure: Non-metallic external components resist corrosion and deterioration from sun and water exposure.

Technical Specifications

Specification	Details
Trim Tab Size (L x W)	9" x 24" (23 x 61 cm)
Suitable Boat Length	24' to 37' (7 to 11 m)
Trim Tab Material	12 gauge, 304 Stainless Steel
Actuator DC Voltage	12 V
Actuator Stroke Length	2.25" (57 mm)
Actuator Cable Length	23' (7 m)
Actuator Vertical Height	11.875" (302 mm)
Control Dimensions (W x H)	3.15" x 3.07" (80 x 77 mm)
Control Mounting Hole Cutout	2" (50 mm)
Control Operating Voltage	12 or 24 V
Actuator Type	Electro-Mechanical
Construction	Stainless Steel
Box Dimensions	2"H x 4"W x 6"L
Weight	27.45 lbs

What’s Included

• One (1) Automatic Leveling Control
• Two (2) Stainless Steel Trim Tabs
• Two (2) Actuators with 23' (7 m) Cables
• Instruction Manual

*Sold as a Kit

Additional Resources

Owner's Manual (PDF)

Brochure (PDF)
