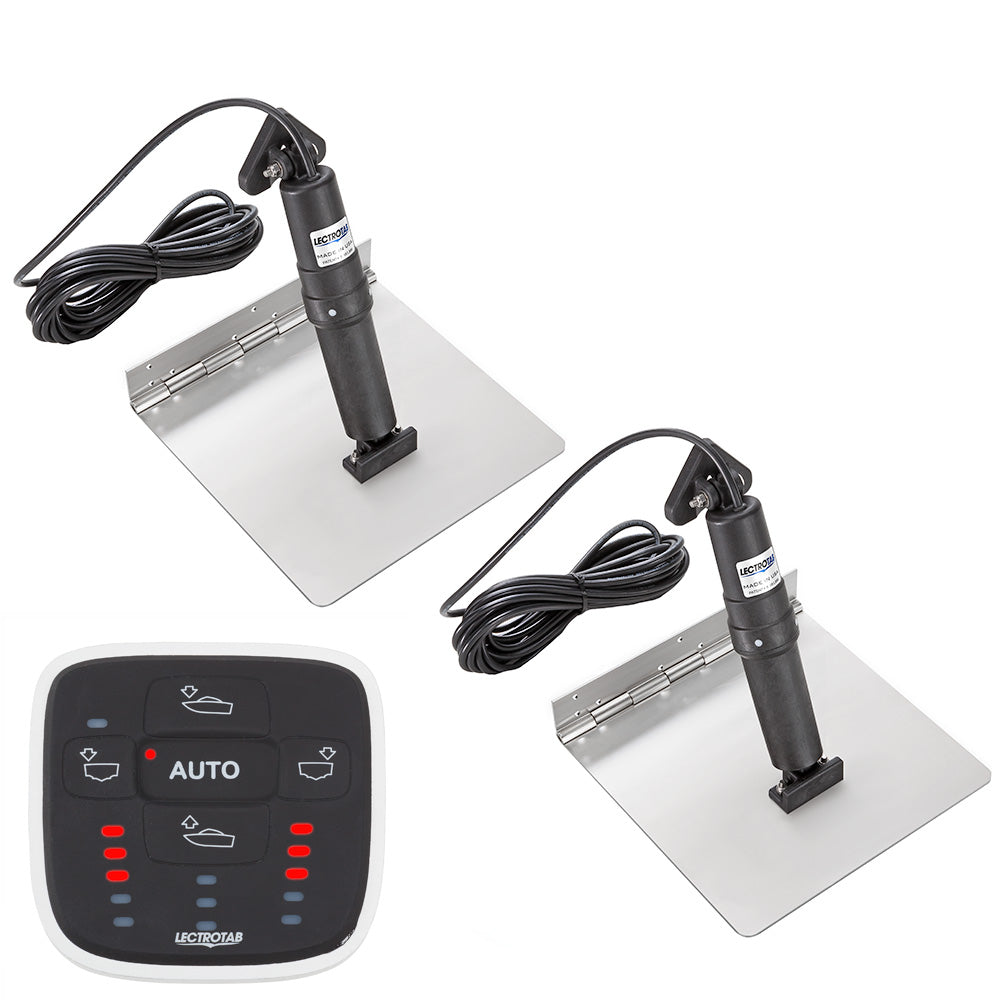

Lectrotab XKA Stainless Steel Trim Tab Kit w/ALC-1 Control - 9 x 18

The XKA Stainless Steel Trim Tab Kit with ALC-1 Control is engineered for boating enthusiasts seeking unparalleled strength, reliability, and performance. Designed specifically for boats ranging from 21' to 30', this trim tab kit ensures a smoother, more efficient ride by maintaining optimal trim and stability in various water conditions.

Unmatched Durability and Precision

Crafted from 12 gauge, 304 stainless steel, the Lectrotab trim tabs feature a continuous rolled and pinned hinge that eliminates the need for welding, providing enhanced strength and longevity. The corrosion-resistant materials ensure that the trim tabs withstand harsh marine environments without deteriorating, whether submerged or exposed to sunlight.

Advanced Actuation System

The precision-engineered actuator operates quietly and efficiently, delivering a non-hydraulic, maintenance-free performance. With a fully load-tested capacity of 1000 lbs of force, the actuator guarantees maximum lift and accurate tab positioning. Encased in a non-metallic, permanently sealed housing, the actuator assembly remains protected from the elements, requiring no additional installation within the boat.

Automatic Leveling Control (ALC)

The integrated ALC automatically adjusts the trim tabs to maintain a level boat, enhancing comfort and stability during your journey. It continuously corrects roll from side to side and pitch from fore to aft, not only improving your boating experience but also optimizing fuel economy by reducing drag.

Key Features

• Continuous Rolled and Pinned Hinge: Provides added strength and eliminates the need for welding.
• Protected Upper Ram Seal: Prevents damage from fouled ram or barnacle growth.
• Internal Pressure Equalization: Enhances system reliability.
• Internal Brake System: Prevents unwanted tab movement when underway or reversing.
• Quiet Operation: Ensures a peaceful boating experience.
• High-Force Actuators: Capable of pushing up to 1000 lbs of force.
• Non-Metallic External Structure: Resistant to corrosion and UV degradation.

Technical Specifications

Feature	Specification
Trim Tab Size (L x W)	9" x 18" (23 x 46 cm)
Boat Length Compatibility	21' to 30' (6.5 to 9 M)
Trim Tab Material	12 gauge, 304 Stainless Steel
Actuator Type	Electro-Mechanical
Actuator DC Voltage	12 V
Actuator Stroke Length	2.25" (57 mm)
Actuator Cable Length	23' (7 M)
Actuator Vertical Height	11.875" (302 mm)
Control Dimensions (W x H)	3.15" x 3.07" (80 x 77 mm)
Control Mounting Hole Cutout	2" (50 mm)
Control Operating Voltage	12 or 24 V
Construction	Stainless Steel
Box Dimensions	2"H x 4"W x 6"L
Weight	22.15 lbs

What’s Included

• One (1) Automatic Leveling Control
• Two (2) Stainless Steel Trim Tabs
• Two (2) Actuators with 23' (7 M) Cables
• Instruction Manual

Note: Sold as a Kit.

Additional Specifications

• Actuator Type: Electro-Mechanical
• Construction: Stainless Steel
• Box Dimensions: 2"H x 4"W x 6"L
• Weight: 22.15 lbs

Resources

• Owner's Manual (PDF)
• Brochure (PDF)
