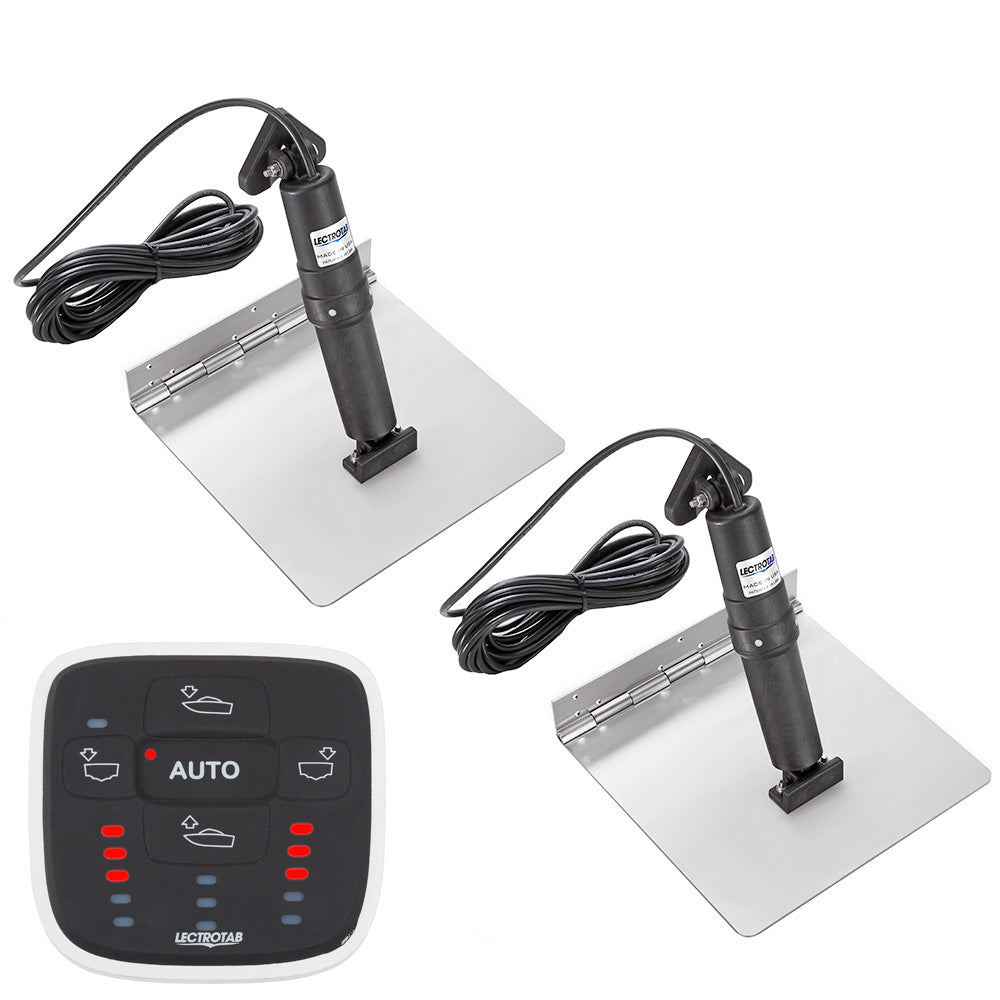

Lectrotab XKA Stainless Steel Trim Tab Kit w/ALC-1 Control - 9 x 12

The XKA Stainless Steel Trim Tab Kit with ALC-1 Control is designed to enhance your boat’s performance and stability. Crafted with high-quality stainless steel and equipped with advanced automatic leveling technology, this trim tab kit ensures a smooth and efficient boating experience.

Superior Construction and Durability

The Lectrotab stainless steel trim tab features a robust design that guarantees exceptional strength and reliability. Each trim tab is fabricated using a continuous rolled and pinned hinge, eliminating the need for welding and enhancing overall durability. The non-metallic external structure resists corrosion and withstands harsh marine environments, ensuring long-lasting performance both above and below the waterline.

Advanced Actuation System

Equipped with a precision-engineered actuator, the XKA Trim Tab Kit offers quiet operation and a maintenance-free experience. The non-hydraulic system provides accurate tab positioning and maximum lift force, all within a self-contained unit that's easy to install. The actuator assembly is housed in a permanently sealed, non-metallic casing, preventing leaks and eliminating the risk of oil contamination commonly associated with hydraulic systems.

Automatic Leveling Control (ALC)

The included ALC-1 Control automatically adjusts your trim tabs to maintain a level boat, enhancing comfort and ride quality. This intelligent system compensates for roll from side to side and pitch from fore to aft, resulting in a more stable and fuel-efficient boating experience. Whether you're cruising or maneuvering, the ALC ensures your boat remains balanced and responsive.

Key Features

• Continuous Rolled and Pinned Hinge: Provides added strength and eliminates the need for welding.
• Protected Ram Seals: Upper ram seal location is safeguarded against damage from fouled ram or barnacle growth.
• Internal Pressure Equalization: Maintains system integrity under varying pressure conditions.
• Internal Brake System: Prevents unwanted tab movement when underway or reversing.
• Quiet Operation: Ensures minimal noise during use for a more enjoyable boating experience.
• High Load Capacity: Actuators are fully load tested to push up to 1000 lbs of force.
• Corrosion-Resistant Construction: Non-metallic external structure resists corrosion and UV deterioration.

Technical Specifications

Specification	Details
Trim Tab Size (L x W)	9" x 12" (23 x 30 cm)
Suitable Boat Length	16' to 25' (5 to 7.5 M)
Trim Tab Material	12 gauge, 304 Stainless Steel
Actuator DC Voltage	12 V
Actuator Stroke Length	2.25" (57 mm)
Actuator Cable Length	23' (7 M)
Actuator Vertical Height	11.875" (302 mm)
Control Dimensions (W x H)	3.15" x 3.07" (80 x 77 mm)
Control Mounting Hole Cutout	2" (50 mm)
Control Operating Voltage	12 or 24 V

What's Included

• One (1) Automatic Leveling Control
• Two (2) Stainless Steel Trim Tabs
• Two (2) Actuators with 23' (7 M) Cables
• Instruction Manual

*Sold as a Kit

Additional Specifications

• Actuator Type: Electro-Mechanical
• Construction: Stainless Steel
• Box Dimensions: 2"H x 4"W x 6"L
• Weight: 17.25 lbs

Additional Resources

Owner's Manual (PDF)
Brochure (PDF)
