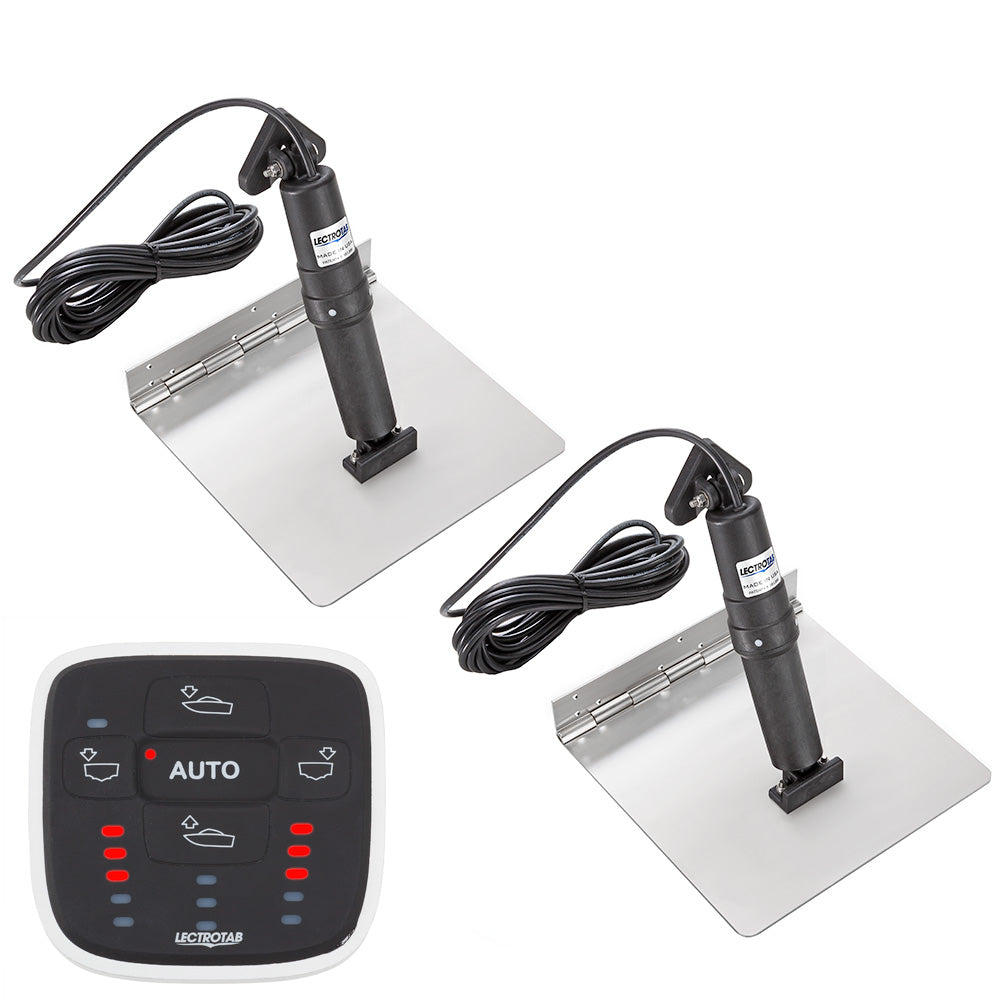

Lectrotab XKA Stainless Steel Trim Tab Kit w/ALC-1 Control - 12 x 9

Enhance your boating performance with the XKA Stainless Steel Trim Tab Kit featuring the advanced ALC-1 Control. Designed for durability and precision, this 12" x 9" trim tab kit ensures your vessel maintains optimal balance and efficiency, providing a smoother and more enjoyable ride on the water.

Unmatched Durability and Reliability

The XKA trim tabs are crafted from high-quality 12 gauge, 304 stainless steel, ensuring exceptional strength and longevity. The continuous rolled and pinned hinge design eliminates the need for welding, reducing potential weak points and enhancing overall reliability. Resistant to corrosion, these trim tabs are built to withstand harsh marine environments without deteriorating under sun exposure or underwater conditions.

Precision-Engineered Actuators

Equipped with precision-engineered electro-mechanical actuators, this kit offers quiet and smooth operation. The non-hydraulic, maintenance-free design ensures consistent performance without the hassle of dealing with hydraulic fluids. Each actuator is fully load tested to deliver up to 1000 lbs of force, providing maximum lift and precise tab positioning for optimal boat handling.

Automatic Leveling Control (ALC-1)

The integrated ALC-1 system automatically adjusts your trim tabs to maintain a level boat, enhancing comfort and stability. It intelligently corrects roll from side to side and pitch from fore to aft, contributing to a more balanced ride and improved fuel economy. Experience effortless control and superior boating dynamics with the ALC-1 technology.

Easy Installation

This self-contained trim tab kit simplifies installation with no need for internal boat components. The actuator assembly is housed in a non-metallic, permanently sealed casing, preventing corrosion and ensuring longevity. Choose between a standard or low-profile transom mounting bracket to suit your boat's configuration seamlessly.

Key Features

• Robust Construction: 12 gauge, 304 stainless steel for superior strength and corrosion resistance.
• Welding-Free Design: Continuous rolled and pinned hinges enhance reliability.
• Precision Actuators: Quiet, electro-mechanical actuators with 1000 lbs push force.
• Automatic Leveling: ALC-1 system maintains boat balance and improves fuel efficiency.
• Corrosion-Free: Non-metallic external structures resist corrosion and UV damage.
• Maintenance-Free: No hydraulic fluids or internal boat installation required.
• Secure Tab Positioning: Internal brake system prevents unwanted movement.

Technical Specifications

Specification	Details
Trim Tab Size (L x W)	12" x 9" (30 x 23 cm)
Suitable Boat Length	18' to 29' (5.5 to 8.5 M)
Trim Tab Material	12 gauge, 304 Stainless Steel
Actuator Type	Electro-Mechanical
Actuator DC Voltage	12 V
Actuator Stroke Length	2.25" (57 mm)
Actuator Cable Length	23' (7 M)
Actuator Vertical Height	11.875" (302 mm)
Control Dimensions (W x H)	3.15" x 3.07" (80 x 77 mm)
Control Mounting Hole Cutout	2" (50 mm)
Control Operating Voltage	12 or 24 V
Box Dimensions	2"H x 4"W x 6"L
Weight	17.05 lbs

What's Included

• One (1) Automatic Leveling Control (ALC-1)
• Two (2) Stainless Steel Trim Tabs
• Two (2) Actuators with 23' (7 M) Cables
• Instruction Manual

Note: Sold as a Kit.

Additional Specifications

• Actuator Type: Electro-Mechanical
• Construction: Stainless Steel
• Box Dimensions: 2"H x 4"W x 6"L
• Weight: 17.05 lbs

Resources

Owner's Manual (PDF)

Brochure (PDF)
