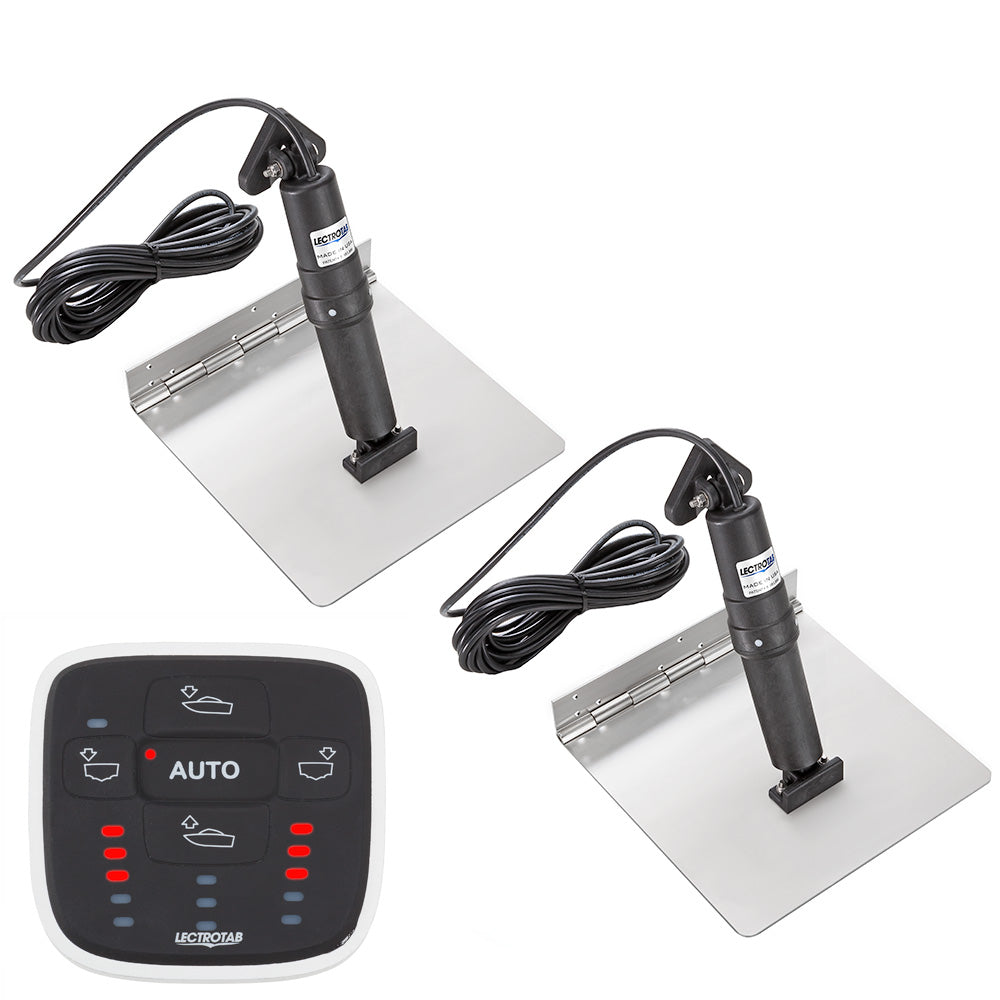

Lectrotab XKA Stainless Steel Trim Tab Kit w/ALC-1 Control - 12 x 18

The XKA Stainless Steel Trim Tab Kit with ALC-1 Control is engineered for marine enthusiasts seeking unparalleled strength, reliability, and effortless boat leveling. Crafted from high-grade stainless steel and featuring advanced electro-mechanical actuators, this 12 x 18 trim tab kit enhances your boating experience with precision and durability.

Unmatched Durability and Design

The Lectrotab stainless steel trim tabs are built to last, featuring a continuous rolled and pinned hinge that eliminates the need for welding. This robust construction ensures maximum strength and longevity, making it the ideal choice for boats ranging from 20 to 40 feet.

Advanced Actuation System

Equipped with a precision-engineered electro-mechanical actuator, the kit combines quiet operation with a maintenance-free, non-hydraulic design. The actuator assembly is housed in a non-metallic, permanently sealed casing, ensuring corrosion resistance and preventing deterioration from sun or water exposure.

Automatic Leveling Control (ALC)

The included ALC-1 Control automatically adjusts your trim tabs to maintain a level boat, enhancing comfort and stability. It intelligently corrects roll from side to side and pitch from fore to aft, improving fuel efficiency and providing a smoother ride.

Key Features

• Continuous Rolled and Pinned Hinge: Provides added strength and eliminates the need for welding.
• Protected Ram Seal: The upper ram seal location is safeguarded against damage from fouled rams or barnacle growth.
• Internal Pressure Equalization: Utilizes an internal system to maintain optimal performance.
• Brake System: Prevents unwanted tab movement when underway or reversing.
• Quiet Operation: Ensures a peaceful boating experience.
• High-Force Actuators: Each actuator is fully load-tested to push up to 1000 lbs of force.
• Corrosion-Free Structure: Non-metallic external components resist corrosion and degradation.

Technical Specifications

Specification	Details
Trim Tab Size (L x W)	12" x 18" (30 x 46 cm)
Suitable Boat Length	20' to 40' (6 to 12 M)
Trim Tab Material	12 gauge, 304 Stainless Steel
Actuator DC Voltage	12 V
Actuator Stroke Length	2.25" (57 mm)
Actuator Cable Length	23' (7 M)
Actuator Vertical Height	11.875" (302 mm)
Control Dimensions (W x H)	3.15" x 3.07" (80 x 77 mm)
Control Mounting Hole Cutout	2" (50 mm)
Control Operating Voltage	12 or 24 V
Actuator Type	Electro-Mechanical
Construction	Stainless Steel
Box Dimensions	2"H x 4"W x 6"L
Weight	27.05 lbs

What's Included

• One (1) Automatic Leveling Control
• Two (2) Stainless Steel Trim Tabs
• Two (2) Actuators with 23' (7 M) Cables
• Instruction Manual

*Sold as a Kit

Additional Resources

Owner's Manual (PDF)

Brochure (PDF)
