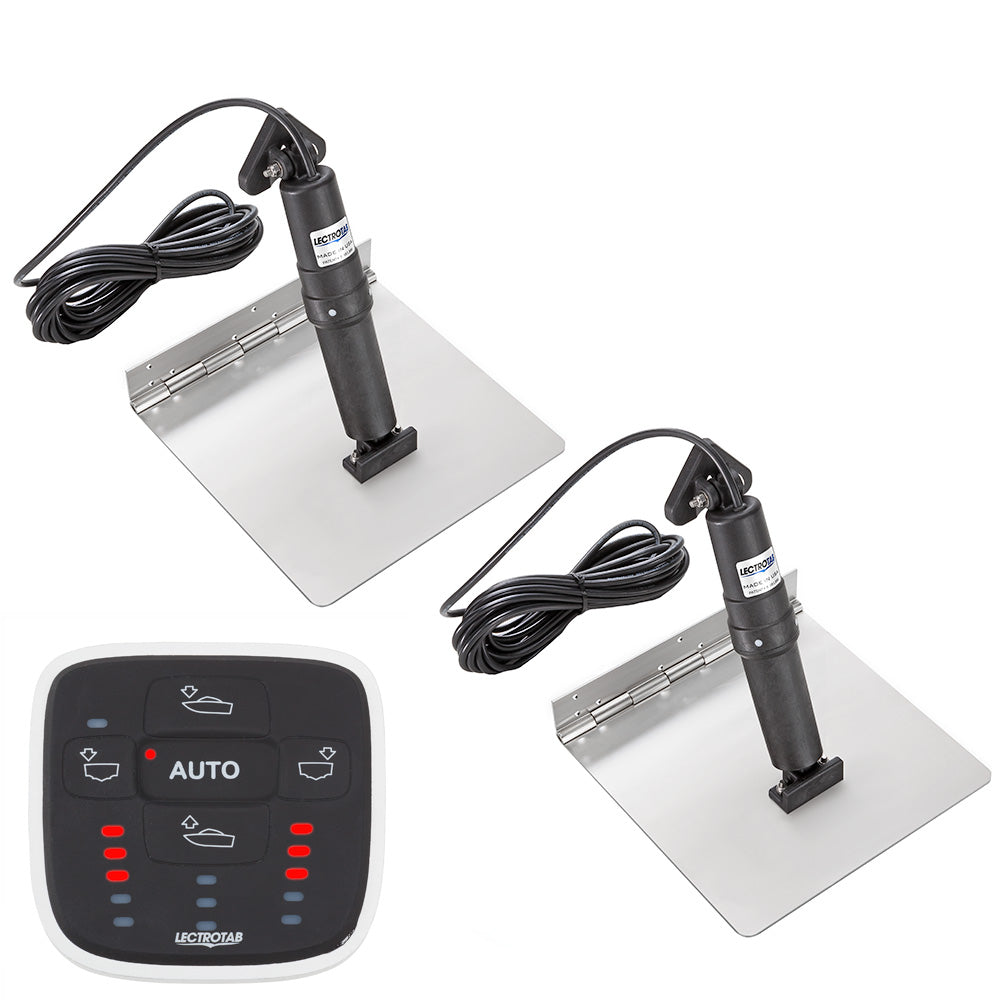

Lectrotab XKA Stainless Steel Trim Tab Kit w/ALC-1 Control - 12 x 12

Upgrade your boating experience with the XKA Premium Stainless Steel Trim Tab Kit featuring the ALC-1 Automatic Leveling Control. Designed for durability and superior performance, this 12 x 12” trim tab kit ensures your vessel maintains optimal balance and stability on the water.

Exceptional Build Quality

The XKA Trim Tab Kit is constructed from high-grade 304 stainless steel, offering unmatched strength and longevity. The continuous rolled and pinned hinge design eliminates the need for welding, providing a robust and reliable solution that withstands the harsh marine environment. This innovative construction not only enhances durability but also simplifies the installation process, making it the perfect choice for boat owners who prioritize both quality and ease of use.

Advanced Actuation System

Equipped with a precision-engineered electro-mechanical actuator, the XKA Trim Tab Kit delivers smooth and quiet operation without the drawbacks of traditional hydraulic systems. Our maintenance-free system ensures long-term reliability, while the corrosion-resistant design maintains accurate tab positioning and maximizes lift force. The actuator assembly is housed in a durable, non-metallic sealed enclosure, protecting it from the elements and eliminating the need for any internal boat modifications.

Seamless Installation and Compatibility

Designed for versatility, the actuator is compatible with both standard and low-profile transom mounting brackets. This flexibility allows for easy installation on a wide range of boat configurations, ensuring a perfect fit for vessels between 18’ to 32’ in length. The non-metallic external structure resists corrosion and withstands exposure to sun and water, ensuring the system remains in top condition season after season.

Automatic Leveling Control (ALC-1)

The included ALC-1 Automatic Leveling Control enhances your boating experience by automatically adjusting the trim tabs to keep your vessel level. This intelligent system minimizes roll from side to side and pitch from front to back, providing a more stable and comfortable ride. Additionally, maintaining an optimal trim position improves fuel efficiency, allowing you to enjoy longer outings on the water.

Key Features

• Continuous rolled and pinned hinge for superior strength without welding
• Protected upper ram seal to prevent damage from fouling or barnacle growth
• Advanced internal pressure equalization system for optimal performance
• Integrated brake system to prevent unintended tab movement during navigation or reversing
• Whisper-quiet operation for a peaceful boating environment
• Actuators tested to handle up to 1000 lbs of force, ensuring reliable performance
• Non-metallic external structure resists corrosion and withstands sun and water exposure

Technical Specifications

Specification	Details
Trim Tab Dimensions (L x W)	12” x 12” (30 cm x 30 cm)
Suitable Boat Length	18’ to 32’ (5.5 m to 9.5 m)
Material	12-gauge, 304 Stainless Steel
Actuator Voltage	12 V DC
Actuator Stroke Length	2.25” (57 mm)
Actuator Cable Length	23’ (7 m)
Actuator Vertical Height	11.875” (302 mm)
Control Unit Dimensions (W x H)	3.15” x 3.07” (80 mm x 77 mm)
Control Mounting Hole Cutout	2” (50 mm)
Control Operating Voltage	12 V or 24 V

Package Includes

• One (1) Automatic Leveling Control (ALC-1)
• Two (2) Stainless Steel Trim Tabs
• Two (2) Actuators with 23’ (7 m) Cables
• Comprehensive Instruction Manual

*Kit includes all components required for installation

Additional Specifications

• Actuator Type: Electro-Mechanical
• Construction: High-Quality Stainless Steel
• Package Dimensions: 2” H x 4” W x 6” L | Weight: 19.25 lbs

Learn More

For more detailed information, please refer to the following resources:

• Owner's Manual (PDF)
• Product Brochure (PDF)
