Lectrotab XKA Stainless Steel Trim Tab - 9 x 9

The XKA Stainless Steel Trim Tab - 9 x 9 is engineered to deliver unparalleled strength and reliability for your marine vessel. Crafted from high-quality 304 stainless steel, this trim tab ensures corrosion resistance and long-lasting performance in various marine environments. Its innovative design integrates a continuous rolled and pinned hinge, eliminating the need for welding and simplifying installation.

Superior Design and Performance

The Lectrotab stainless steel trim tab features a precision-engineered actuator that guarantees quiet operation and a maintenance-free experience. Unlike hydraulic systems, this non-hydraulic trim tab system is completely self-contained, preventing oil leaks and reducing the risk of component failure. The corrosion-resistant, non-metallic actuator housing ensures durability, while the accurate tab positioning provides maximum lift force for optimal boat performance.

Key Features

• Continuous rolled and pinned hinge for enhanced strength without the need for welding
• Precision-engineered actuator ensures quiet and reliable operation
• Maintenance-free, non-hydraulic design eliminates oil leaks
• Corrosion-resistant non-metallic external structure
• Accurate tab positioning for optimal boat performance
• Maximum lift force with fully load-tested actuators capable of pushing 1000 lbs of force
• Internal brake system prevents unwanted tab movement during operation
• Actuator incorporates either a standard or low profile transom mounting bracket
• No components need to be installed inside the boat
• Upper ram seal protected from damage due to fouled ram or barnacle growth
• Internal pressure equalization system enhances durability

Technical Specifications

Parameter	Specification
Trim Tab Size	9" x 9" (23 x 23 cm)
Suitable Boat Length	14' to 19' (4 to 6 M)
Trim Tab Material	12 gauge, 304 Stainless Steel
Actuator Type	Electro-Mechanical
Actuator DC Voltage	12 V
Actuator Stroke Length	2.25" (57 mm)
Actuator Cable Length	23' (7 M)
Actuator Vertical Height	11.875" (302 mm)
Construction	Stainless Steel
Box Dimensions	6"H x 15"W x 15"L
Weight	15.2 lbs

What's Included

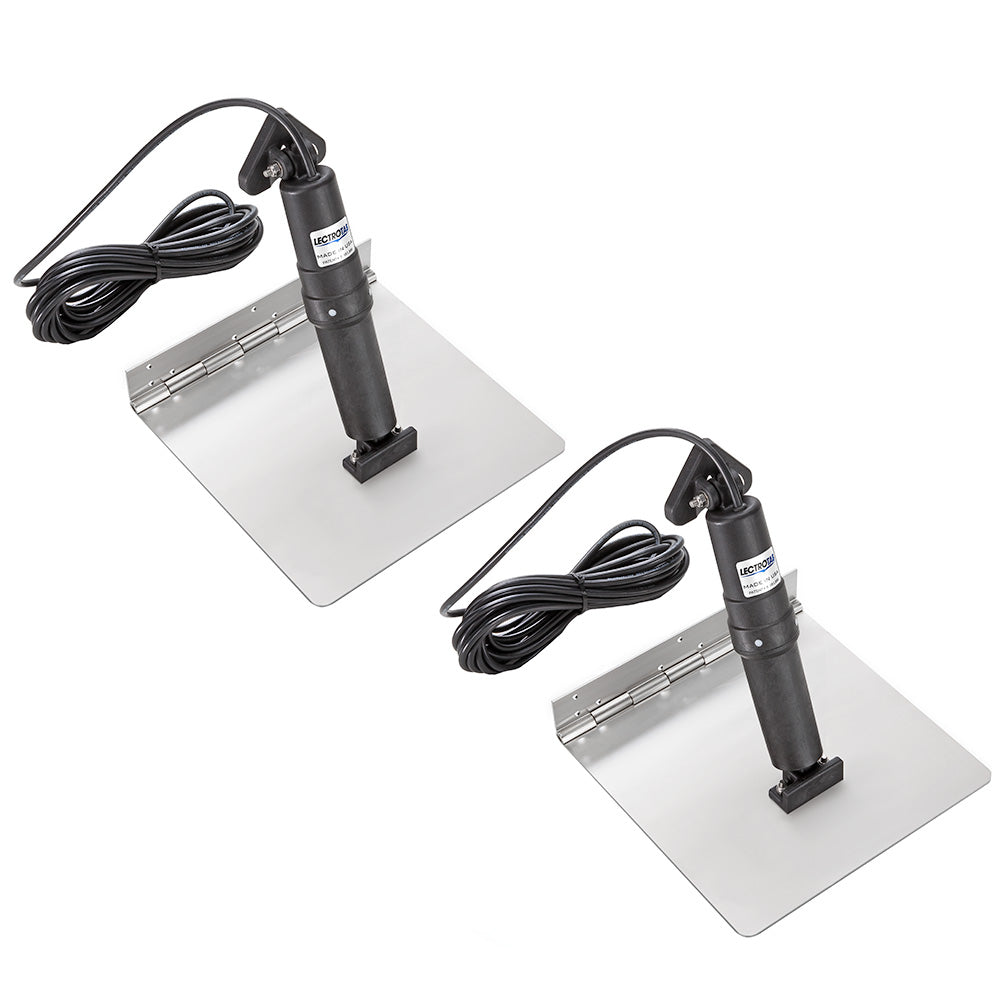

• Two (2) Stainless Steel Trim Tabs
• Two (2) Actuators with 23' (7 M) Cables
• Instruction Manual

*Control switch not included

*Sold as an Individual

Additional Information

• Non-metallic external structure prevents corrosion and withstands exposure to sun and water
• Easy installation with no need to install components inside the boat

Resources

Quick Guide (PDF)
Owner's Manual (PDF)
Brochure (PDF)
