Lectrotab  |  SKU: LOS-96032

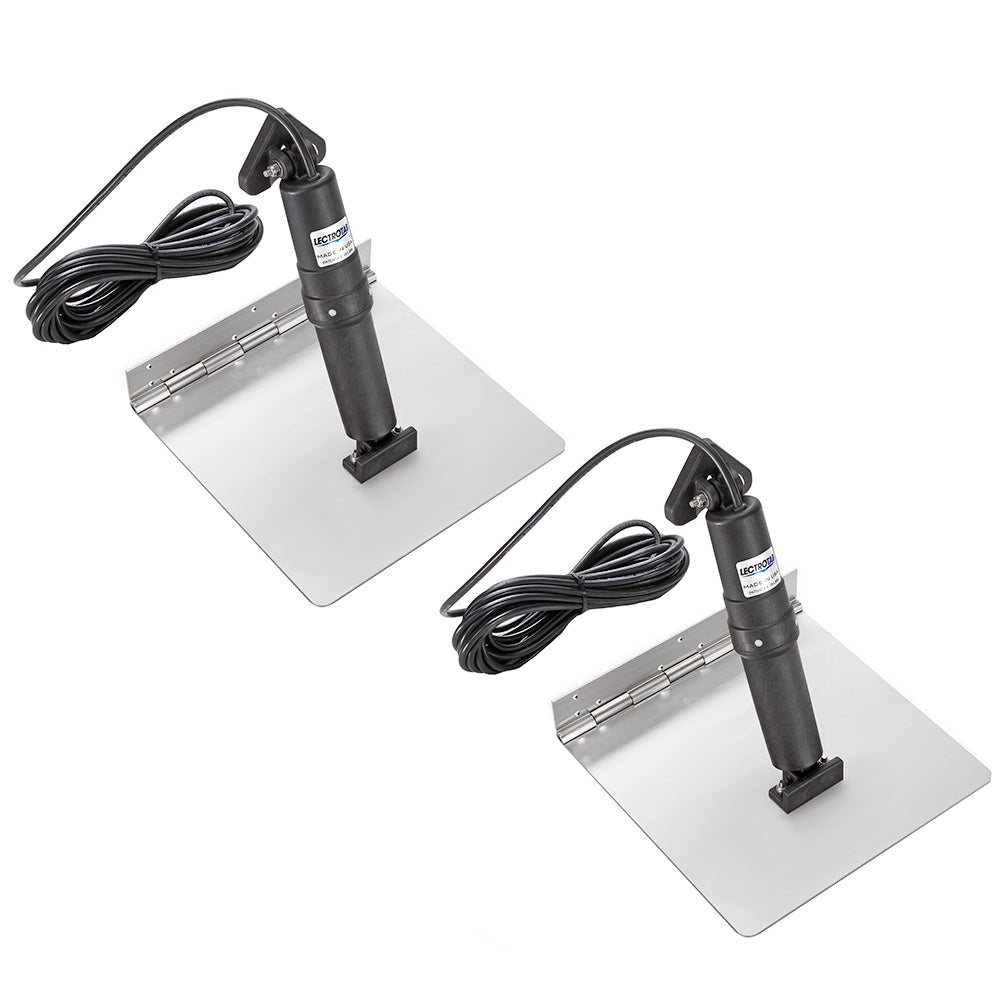

Lectrotab XKA Stainless Steel Trim Tab - 9 x 24

$1,047.20 USD $1,232.00

Product Description

Enhance your vessel's performance and reliability with the XKA Stainless Steel Trim Tab - 9 x 24. Engineered for durability and precision, this trim tab system ensures smooth and efficient boat handling, making it an essential upgrade for marine enthusiasts seeking top-notch quality and performance.

Unmatched Durability and Reliability

The Lectrotab stainless steel trim tab is crafted from high-grade 304 stainless steel, providing exceptional strength and longevity. Featuring a continuous rolled and pinned hinge, our design eliminates the need for welding, ensuring a robust and maintenance-free solution for your boat.

Precision Engineered Actuator

Paired with a state-of-the-art actuator, the XKA Trim Tab kit delivers quiet operation and precise tab positioning without the complexities of hydraulic systems. The non-hydraulic, maintenance-free design ensures maximum lift force and corrosion resistance, making it ideal for both freshwater and saltwater environments.

Easy Installation and Maintenance-Free Operation

The self-contained actuator assembly is housed in a non-metallic, permanently sealed casing, allowing for straightforward installation without the need for additional components inside the boat. Unlike hydraulic systems, our trim tabs are free from oil leaks, offering a cleaner and more reliable solution for your marine vessel.

Key Features

  • Continuous rolled and pinned hinge for added strength and no welding required
  • Protected upper ram seal resistant to damage from fouled rams or barnacle growth
  • Internal pressure equalization system for optimal performance
  • Integrated brake system to prevent unwanted tab movement during operation
  • Quiet and smooth operation for a more enjoyable boating experience
  • Actuators fully load tested to deliver up to 1000 lbs of force
  • Non-metallic external structure ensuring corrosion resistance and durability

Technical Specifications

Specification Details
Trim Tab Size (L x W) 9" x 24" (23 x 61 cm)
Suitable Boat Length 24' to 37' (7 to 11 m)
Trim Tab Material 12 gauge, 304 Stainless Steel
Actuator DC Voltage 12 V
Actuator Stroke Length 2.25" (57 mm)
Actuator Cable Length 23' (7 m)
Actuator Vertical Height 11.875" (302 mm)

What's Included

  • Two (2) Stainless Steel Trim Tabs
  • Two (2) Actuators with 23' (7 m) Cables
  • Comprehensive Instruction Manual

*Control switch not included

*Sold as an Individual

Additional Specifications

  • Actuator Type: Electro-Mechanical
  • Construction: Stainless Steel
  • Box Dimensions: 5" H x 16" W x 25" L
  • Weight: 27.2 lbs

Helpful Resources

Quick Guide (PDF)

Owner's Manual (PDF)

Brochure (PDF)
