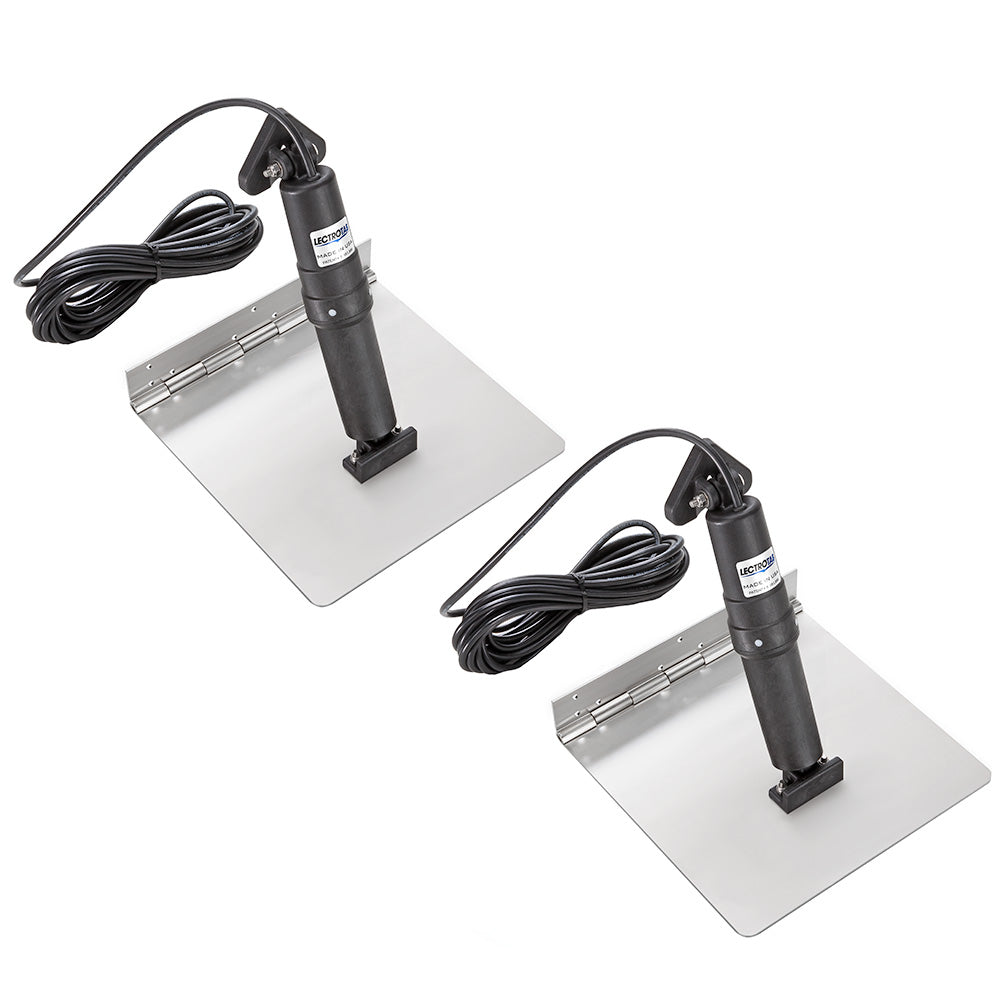

Lectrotab XKA Stainless Steel Trim Tab - 9 x 18

The XKA Stainless Steel Trim Tab - 9 x 18 is expertly designed to enhance your boat's performance with unparalleled strength and reliability. Crafted from high-quality stainless steel, this trim tab ensures smooth and precise maneuvering, making it an essential upgrade for marine enthusiasts seeking durability and efficiency.

Unmatched Durability and Design

The Lectrotab stainless steel trim tab features a continuous rolled and pinned hinge, eliminating the need for welding and providing superior strength. This robust construction ensures long-lasting performance, even in the harshest marine environments.

Advanced Actuator System

Equipped with a precision-engineered actuator, the XKA trim tab offers quiet operation and a maintenance-free design. The actuator assembly is housed in a non-metallic, permanently sealed casing, protecting it from corrosion and ensuring reliable functionality without the risk of oil leaks.

Key Features

• Continuous Rolled and Pinned Hinge: Adds strength and eliminates welding requirements.
• Protected Ram Seal: Prevents damage from fouled ram or barnacle growth.
• Internal Pressure Equalization: Enhances performance and reliability.
• Brake System: Stops unwanted tab movement while underway or reversing.
• Quiet Operation: Ensures a peaceful boating experience.
• High-Force Actuators: Capable of pushing up to 1000 lbs of force.
• Corrosion-Resistant Structure: Non-metallic external components resist corrosion and withstand sun and water exposure.

Technical Specifications

Specification	Details
Trim Tab Size	9" x 18" (23 x 46 cm)
Suitable Boat Length	21' to 30' (6.5 to 9 M)
Trim Tab Material	12 gauge, 304 Stainless Steel
Actuator DC Voltage	12 V
Actuator Stroke Length	2.25" (57 mm)
Actuator Cable Length	23' (7 M)
Actuator Vertical Height	11.875" (302 mm)

What's Included

• Two (2) Stainless Steel Trim Tabs
• Two (2) Actuators with 23' (7 M) Cables
• Instruction Manual

Note: Control switch not included. Sold as an individual unit.

Additional Specifications

• Actuator Type: Electro-Mechanical
• Construction: Stainless Steel
• Box Dimensions: 5"H x 16"W x 25"L
• Weight: 21.9 lbs

Helpful Resources

• Quick Guide (PDF)
• Owner's Manual (PDF)
• Brochure (PDF)
