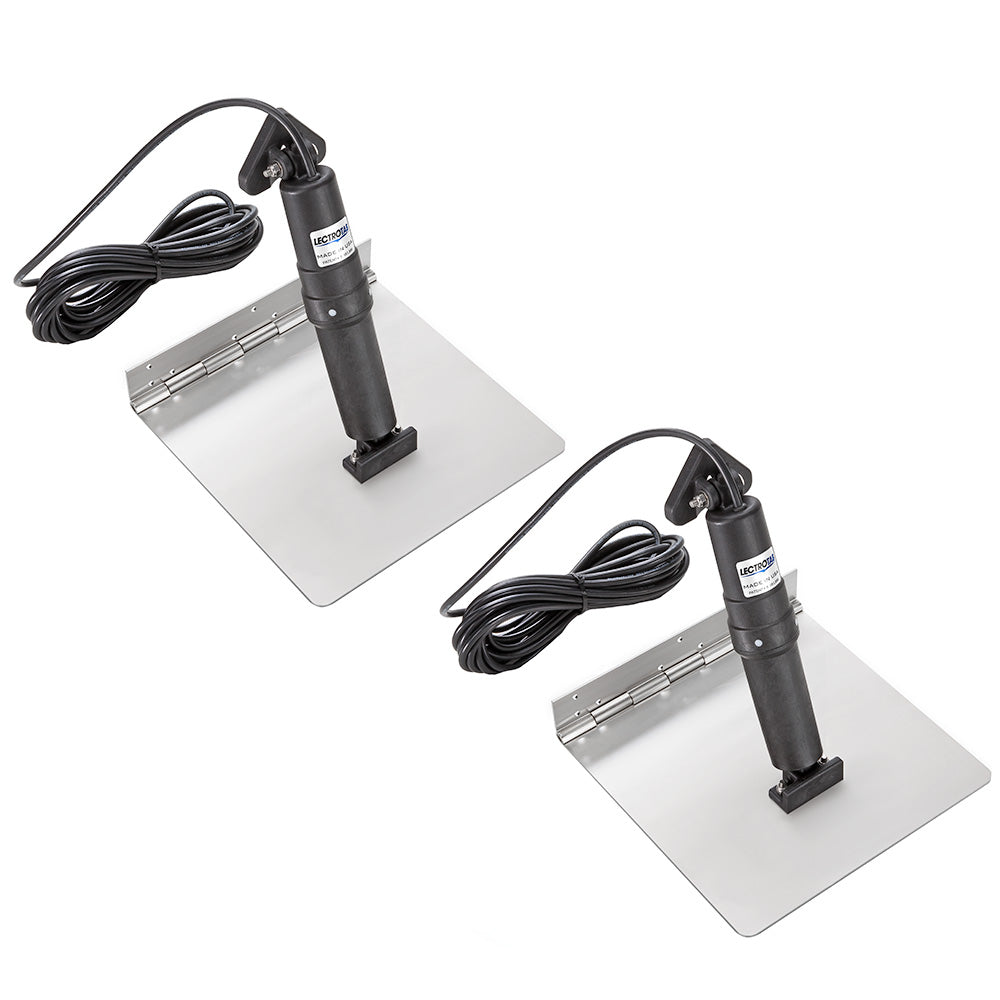

Lectrotab XKA Stainless Steel Trim Tab - 9 x 12

The XKA Stainless Steel Trim Tab - 9 x 12 is engineered for boat enthusiasts seeking unparalleled strength and reliability. Crafted from premium 304 stainless steel, this trim tab ensures exceptional performance and longevity, making it an essential upgrade for vessels ranging from 16' to 25'. Whether you're navigating calm waters or tackling challenging conditions, the XKA Trim Tab delivers precise control and maximum lift force without the hassle of hydraulic systems.

Exceptional Design and Construction

The Lectrotab stainless steel trim tab features a continuous rolled and pinned hinge, eliminating the need for welding and enhancing structural integrity. This robust design guarantees durability and withstands the harsh marine environment, ensuring your trim tabs remain corrosion-free and maintenance minimal.

Advanced Actuation System

Paired with a precision-engineered actuator, the XKA Trim Tab operates quietly and efficiently. The non-hydraulic, maintenance-free design offers several key advantages:

• Corrosion-resistant, non-metallic external structure
• Accurate tab positioning with a fully load-tested actuator capable of pushing 1000 lbs of force
• Self-contained unit for straightforward installation without internal boat components
• Integrated internal brake system to prevent unwanted movement during operation
• Standard or low profile transom mounting bracket options

Key Features

• Continuous Rolled and Pinned Hinge: Provides added strength and eliminates welding requirements
• Protected Ram Seal: Upper ram seal location is safeguarded against damage from fouled rams or barnacle growth
• Internal Pressure Equalization: Enhances operational reliability
• Quiet Operation: Ensures a peaceful boating experience
• Corrosion-Resistant Construction: Non-metallic external components withstand sun and water exposure

Technical Specifications

Specification	Details
Trim Tab Size (L x W)	9" x 12" (23 x 30 cm)
Suitable Boat Length	16' to 25' (5 to 7.5 m)
Material	12 gauge, 304 Stainless Steel
Actuator DC Voltage	12 V
Actuator Stroke Length	2.25" (57 mm)
Actuator Cable Length	23' (7 m)
Actuator Vertical Height	11.875" (302 mm)

What's Included

• Two (2) Stainless Steel Trim Tabs
• Two (2) Actuators with 23' (7 m) Cables
• Instruction Manual

*Control switch not included

Additional Specifications

• Actuator Type: Electro-Mechanical
• Construction: Stainless Steel
• Box Dimensions: 6"H x 15"W x 15"L
• Weight: 17 lbs
• UPC: 850046155338

Resources

• Quick Guide (PDF)
• Owner's Manual (PDF)
• Brochure (PDF)

Why Choose XKA Stainless Steel Trim Tabs?

Upgrade your boating experience with XKA's reliable and high-performance trim tabs. Designed for ease of installation and built to last, these trim tabs provide smooth and precise control, enhancing your vessel's handling and efficiency. Say goodbye to hydraulic leaks and maintenance headaches—choose XKA for a superior boating performance.
