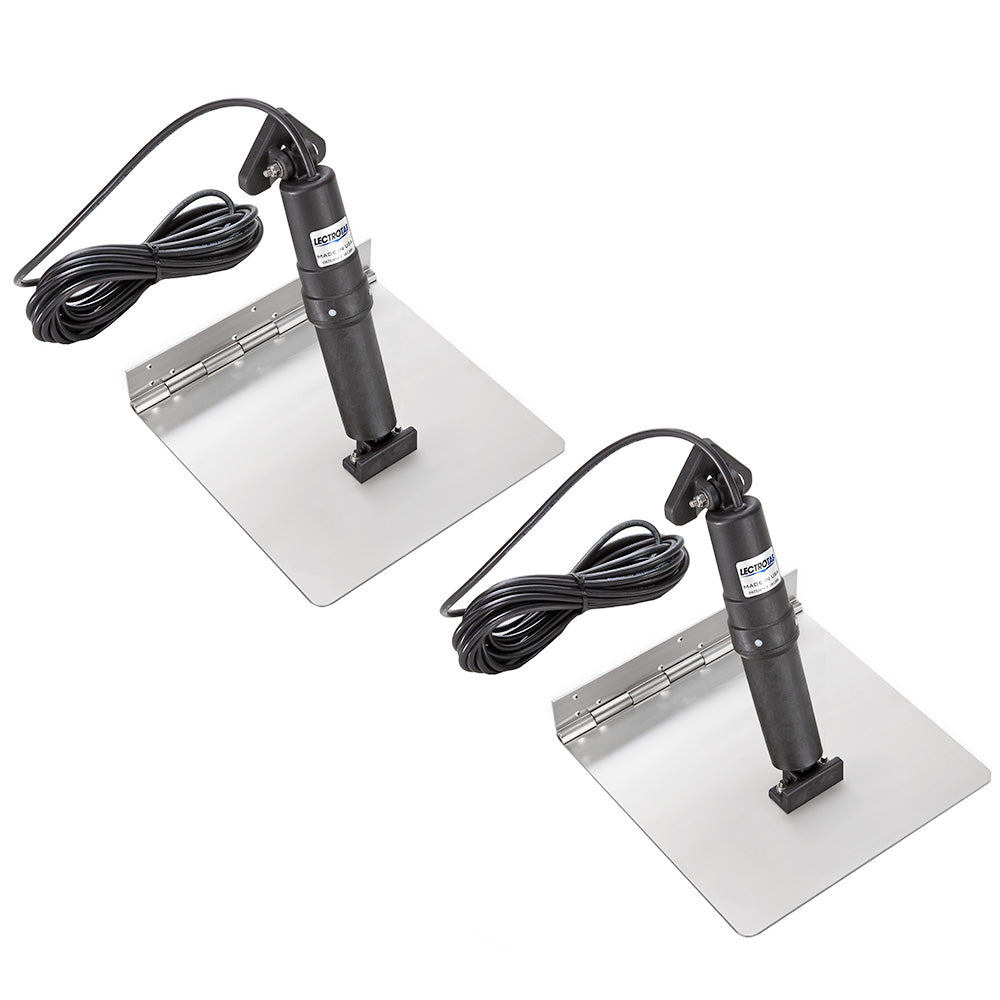

Lectrotab XKA Stainless Steel Trim Tab - 12 x 9

The XKA Stainless Steel Trim Tab offers unparalleled strength and reliability for your marine vessel. Crafted from high-quality 304 stainless steel, this trim tab ensures optimal performance and longevity, making it an essential upgrade for boats ranging from 18' to 29'. Engineered for quiet operation and ease of installation, the XKA Trim Tab is the perfect choice for boating enthusiasts seeking maintenance-free, corrosion-resistant solutions.

Outstanding Design and Durability

The Lectrotab stainless steel trim tab features a continuous rolled and pinned hinge, eliminating the need for welding and significantly enhancing the tab's strength. This robust construction ensures that your trim tabs can withstand the harsh marine environment without compromising performance.

Precision-Engineered Actuator

Each kit includes a precision-engineered actuator that combines quiet operation with a non-hydraulic, maintenance-free design. The actuator assembly is housed in a non-metallic, permanently sealed casing, preventing corrosion and ensuring that no components are installed inside the boat. This design also eliminates the risk of oil leaks associated with hydraulic trim tabs.

Key Features

• Continuous rolled and pinned hinge for added strength and no welding required
• Upper ram seal protected from damage due to fouled ram or barnacle growth
• Internal pressure equalization system for optimal performance
• Internal brake system prevents unwanted tab movement when underway or reversing
• Quiet and smooth operation
• Actuators are fully load tested to deliver up to 1000 lbs of force
• Non-metallic external structure resists corrosion and UV deterioration

Technical Specifications

Specification	Details
Trim Tab Size (L x W)	12" x 9" (30 x 23 cm)
Suitable Boat Length	18' to 29' (5.5 to 8.5 M)
Trim Tab Material	12 gauge, 304 Stainless Steel
Actuator DC Voltage	12 V
Actuator Stroke Length	2.25" (57 mm)
Actuator Cable Length	23' (7 M)
Actuator Vertical Height	11.875" (302 mm)

What's Included

• Two (2) Stainless Steel Trim Tabs
• Two (2) Actuators with 23' (7 M) Cables
• Instruction Manual

*Control switch not included

*Sold as an individual unit

Additional Specifications

Specification	Details
Actuator Type	Electro-Mechanical
Construction	Stainless Steel
Box Dimensions	6"H x 15"W x 15"L
Weight	16.8 lbs
UPC	850046155406

Helpful Resources

• Quick Guide (PDF)
• Owner's Manual (PDF)
• Brochure (PDF)
