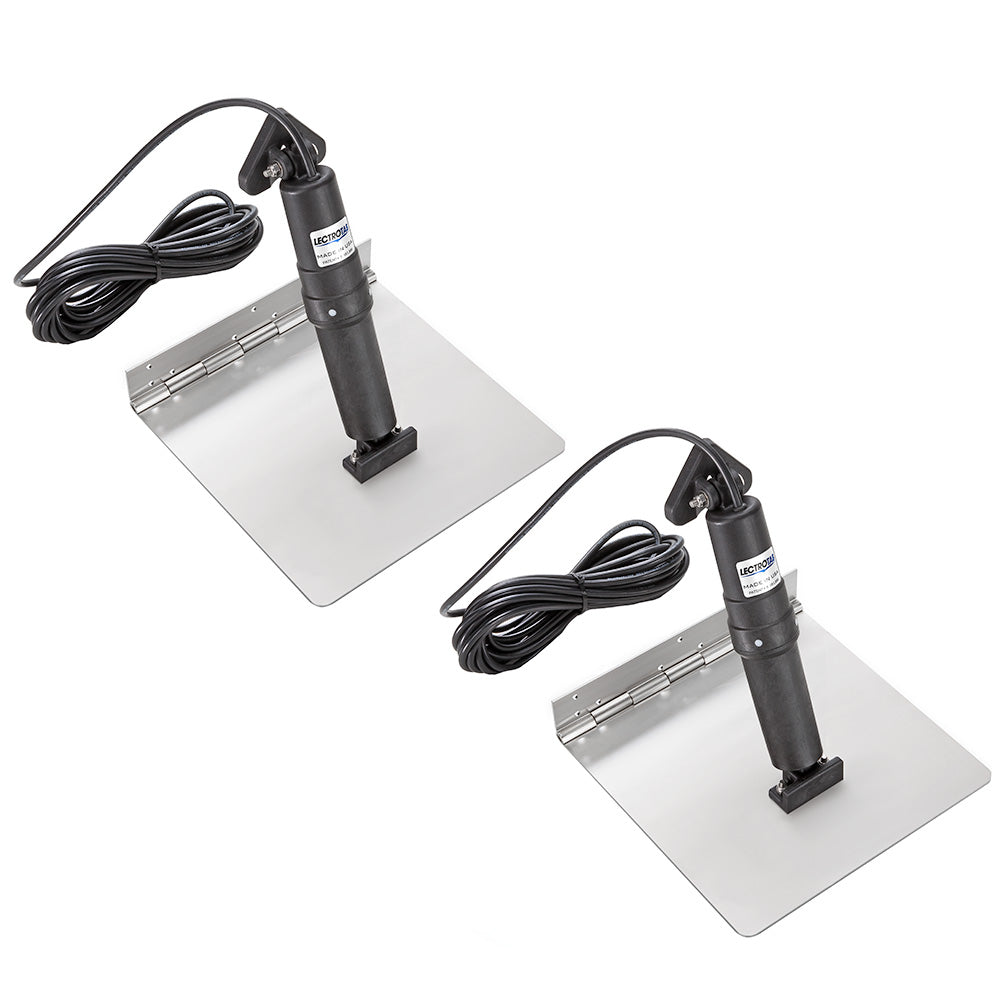

Lectrotab XKA Stainless Steel Trim Tab - 12 x 24

The XKA Stainless Steel Trim Tab - 12 x 24 is engineered for marine enthusiasts seeking unparalleled strength and dependability. Crafted from high-grade stainless steel, this trim tab ensures optimal performance and longevity for your vessel, providing precise control and effortless installation without the complexities of hydraulic systems.

Exceptional Design and Durability

The Lectrotab stainless steel trim tab features a continuous rolled and pinned hinge, eliminating the need for welding and ensuring superior strength. This robust construction guarantees durability even in the harshest marine environments.

Advanced Actuation System

Equipped with a precision-engineered actuator, the XKA Trim Tab offers quiet operation and a maintenance-free experience. The non-hydraulic design ensures no oil leaks, providing a cleaner and safer solution for your boat. The actuator assembly is housed in a non-metallic, permanently sealed unit, keeping all components outside the boat for easy installation and peace of mind.

Key Features

• Continuous Rolled and Pinned Hinge: Adds strength and eliminates welding needs.
• Protected Upper Ram Seal: Resistant to damage from fouled rams or barnacle growth.
• Internal Pressure Equalization: Ensures smooth and reliable operation.
• Integrated Brake System: Prevents unwanted tab movement during navigation.
• Quiet Operation: Minimizes noise for a more enjoyable boating experience.
• High-Force Actuators: Capable of pushing up to 1000 lbs of force.
• Corrosion-Resistant Structure: Non-metallic exterior resists corrosion and UV damage.

Technical Specifications

Specification	Details
Trim Tab Size (L x W)	12" x 24" (30 x 61 cm)
Suitable Boat Length	28' to 48' (8.5 to 14.5 m)
Trim Tab Material	12 gauge, 304 Stainless Steel
Actuator DC Voltage	12 V
Actuator Stroke Length	2.25" (57 mm)
Actuator Cable Length	23' (7 m)
Actuator Vertical Height	11.875" (302 mm)

Package Contents

• Two (2) Stainless Steel Trim Tabs
• Two (2) Actuators with 23' (7 m) Cables
• Instruction Manual

Note: Control switch is not included.

Additional Specifications

• Actuator Type: Electro-Mechanical
• Construction: Stainless Steel
• Box Dimensions: 5" H x 16" W x 21" L
• Weight: 31.3 lbs

Resources

• Quick Guide (PDF)
• Owner's Manual (PDF)
• Brochure (PDF)
