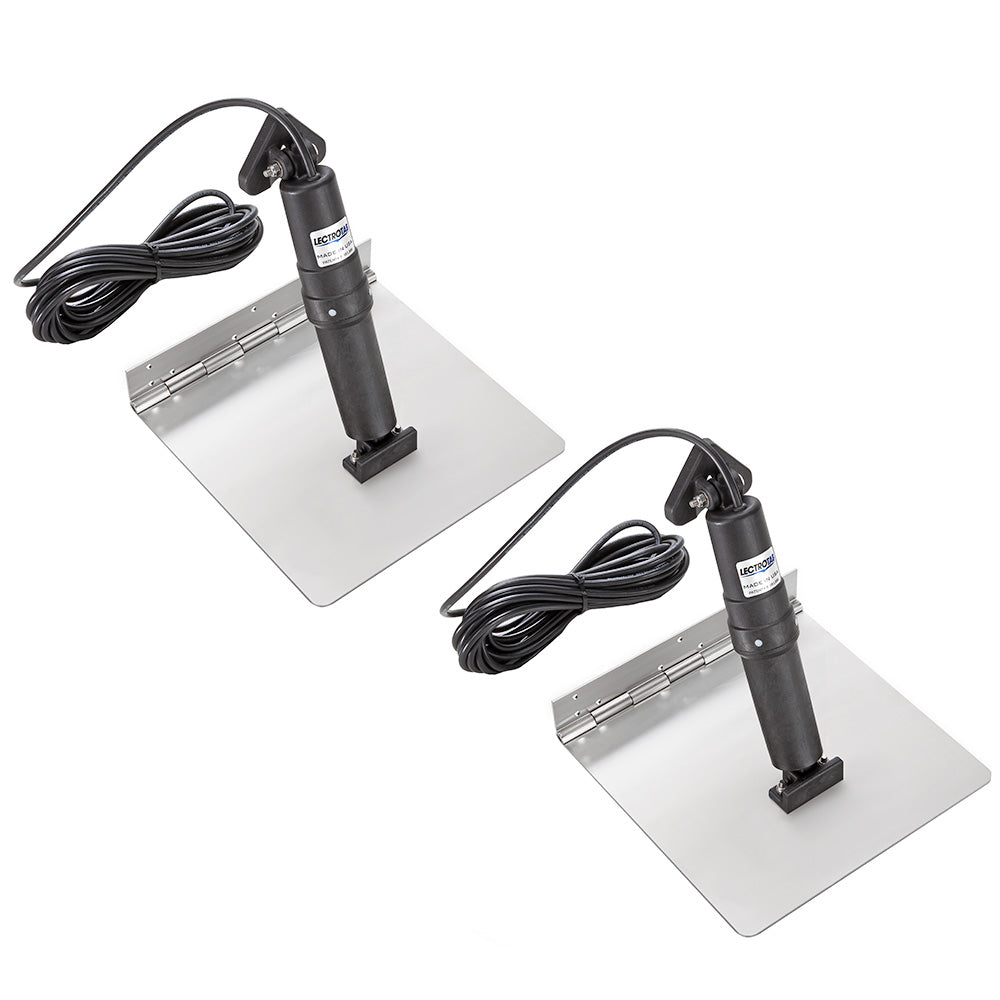

Lectrotab XKA Stainless Steel Trim Tab - 12 x 12

The XKA Stainless Steel Trim Tab - 12 x 12 is engineered for boat owners seeking unparalleled strength and reliability. Crafted from high-grade stainless steel, these trim tabs ensure optimal performance and longevity, making them the ideal choice for enhancing your marine vessel's maneuverability and stability.

Product Features:

• Durable continuous rolled and pinned hinge design eliminates the need for welding, providing enhanced strength.
• Precision-engineered actuator ensures quiet operation and maximum lift force without hydraulic maintenance.
• Corrosion-resistant non-metallic external structure withstands harsh marine environments, preventing deterioration from sun and water exposure.
• Internal pressure equalization system maintains actuator integrity against fouling from barnacles or ram damage.
• Integrated brake system securely holds tab position during navigation and reversing.
• Actuators are load tested to deliver up to 1000 lbs of force for reliable performance.
• Self-contained actuator assembly housed in a non-metallic, permanently sealed unit for easy installation without internal boat components.
• No risk of oil leaks compared to traditional hydraulic trim tabs.
• Flexible mounting options with standard or low profile transom mounting brackets included.

Technical Specifications:

Parameter	Details
Trim Tab Size (L x W)	12" x 12" (30 x 30 cm)
Suitable Boat Length	18' to 32' (5.5 to 9.5 m)
Trim Tab Material	12 gauge, 304 Stainless Steel
Actuator Type	Electro-Mechanical
Actuator DC Voltage	12 V
Actuator Stroke Length	2.25" (57 mm)
Actuator Cable Length	23' (7 m)
Actuator Vertical Height	11.875" (302 mm)
Construction	Stainless Steel
Box Dimensions	6"H x 15"W x 15"L
Weight	19 lbs
UPC	850046155390

What's Included:

• Two (2) Stainless Steel Trim Tabs
• Two (2) Actuators with 23' (7 m) Cables
• Instruction Manual

*Control switch not included

*Sold as an individual unit

Additional Specifications:

• Internal brake system for secure tab positioning
• Non-metallic external housing prevents corrosion and ensures longevity

Resources:

• Quick Guide (PDF)
• Owner's Manual (PDF)
• Brochure (PDF)
