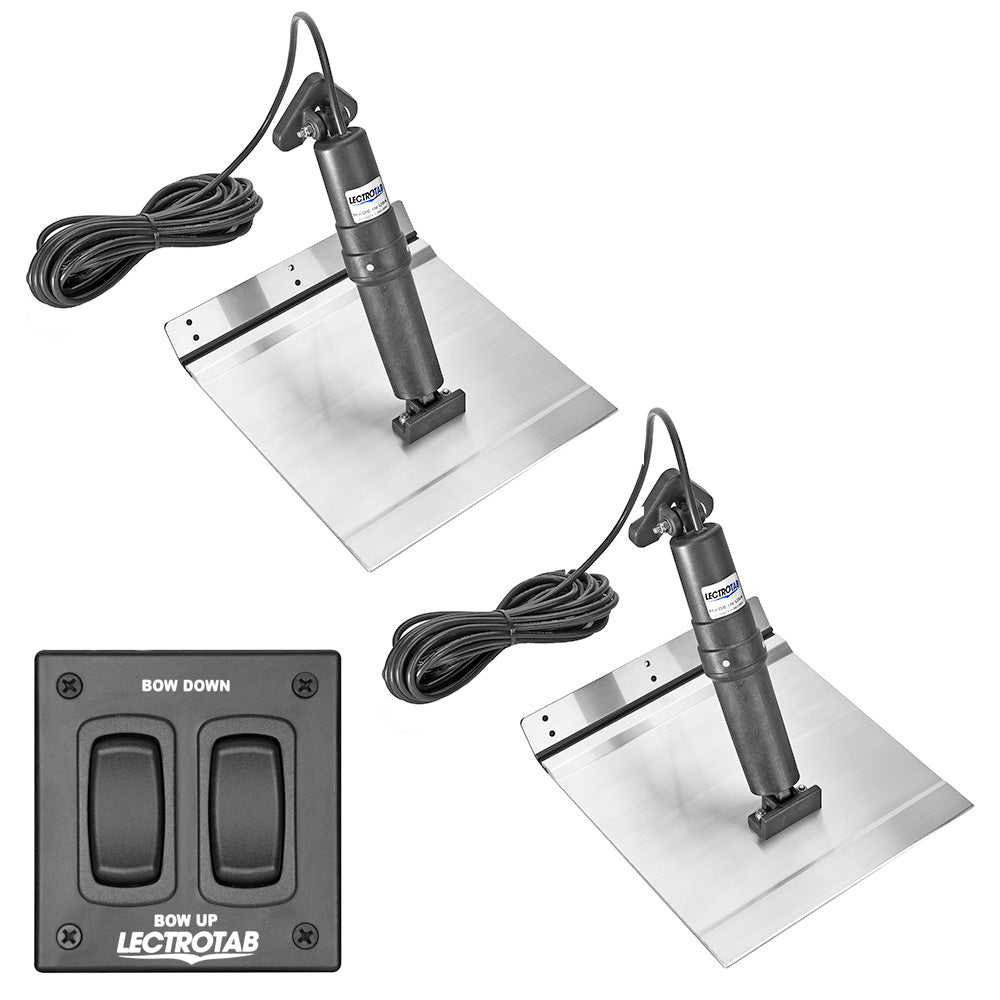

Lectrotab XKA Aluminum Alloy Trim Tab Kit w/Rocker Switch - 9 x 9

The XKA Aluminum Alloy Trim Tab Kit with Rocker Switch - 9 x 9 is the ultimate upgrade for your aluminum-hulled boat, offering enhanced performance and unmatched durability. Designed for marine enthusiasts, this trim tab kit ensures smooth operation and longevity without the complications of traditional hydraulic systems.

Robust Construction for Marine Environments

Crafted from premium marine-grade 6005-T5 aluminum alloy, the XKA trim tabs deliver strength equivalent to 10 gauge stainless steel. Each tab is meticulously sealed with a corrosion-resistant epoxy coating, providing superior protection against the harsh marine environment. The innovative "no-break" polypropylene hinge has been rigorously tested for over 300,000 cycles to a 90° bend, ensuring reliable performance and longevity.

Precision-Engineered Actuation System

The electro-mechanical actuators included in this kit are designed for quiet and efficient operation. Unlike hydraulic systems, these actuators are maintenance-free and eliminate the risk of oil leaks. Encased in a non-metallic, permanently sealed housing, they resist corrosion and ensure precise tab positioning. With a maximum lift force of 1000 lbs, the actuators provide robust performance while maintaining a compact profile suitable for any transom setup.

Advanced Rocker Switch Technology

The integrated flat rocker switch features enhanced sealing to prevent water ingress and a recessed design to minimize the risk of accidental breakage. It includes an "instant stop" circuit that prevents actuator over-run, offering precise control and ensuring the trim tabs stop exactly where you want them.

Key Features

• Corrosion-resistant epoxy coating on all tabs
• Strength equivalent to 10 gauge stainless steel
• "No Break" polypropylene hinge tested for over 300,000 cycles
• Protected upper ram seal against fouling and barnacle growth
• Internal pressure equalization system
• Internal brake system to prevent unwanted tab movement
• Quiet and reliable operation
• Actuators fully load tested to push 1000 lbs of force
• Non-metallic external structure resistant to corrosion and UV damage

Technical Specifications

Specification	Details
Trim Tab Size (L x W)	9" x 9" (23 x 23 cm)
Compatible Boat Length	14' to 19' (4 to 6 M)
Trim Tab Material	Marine grade 6005-T5 Aluminum Alloy
Actuator DC Voltage	12 V
Actuator Stroke Length	2.25" (57 mm)
Actuator Cable Length	23' (7 M)
Actuator Vertical Height	11.875" (302 mm)
Rocker Switch Dimensions (W x H)	3.125" x 3.25" (79.4 x 82.5 mm)
Rocker Switch Mounting Hole Cutout (H x W)	2.25" x 2" (57.5 x 50 mm)
Rocker Switch Operating Voltage	12 or 24 V
Actuator Type	Electro-Mechanical
Construction	Aluminum Alloy
Box Dimensions	4"H x 5"W x 6"L
Weight	13.05 lbs

What's Included

• One (1) Flat Rocker Switch
• Two (2) Aluminum Alloy Trim Tabs
• Two (2) Actuators with 23' (7 M) cables
• Instruction Manual

Sold as a Kit

Additional Resources

Owner's Manual (PDF)
Brochure (PDF)
