Lectrotab XKA Aluminum Alloy Trim Tab Kit w/Rocker Switch - 9 x 24

The XKA Aluminum Alloy Trim Tab Kit with Rocker Switch is expertly crafted for aluminum-hulled boats, delivering exceptional performance and durability. Designed for quiet operation and a maintenance-free experience, this kit ensures precise tab positioning and maximum lift force without the complexities of hydraulic systems.

Features

• All trim tabs are sealed with a corrosion-resistant epoxy coating, ensuring longevity in harsh marine environments.
• Constructed with aluminum alloy, offering equivalent strength to 10 gauge stainless steel.
• Equipped with a “No Break” polypropylene hinge, tested over 300,000 cycles to a 90° bend without failure.
• Upper ram seal location is protected from damage due to fouled ram or barnacle growth.
• Integrated internal pressure equalization system for optimal performance.
• Built-in internal brake system prevents unwanted tab movement when underway or reversing.
• Quiet and smooth operation enhances the boating experience.
• Actuators are fully load tested to push up to 1000 lbs of force, ensuring reliable performance.
• Non-metallic external structure resists corrosion and won’t deteriorate under sunlight or underwater conditions.
• Includes a precision-engineered actuator for accurate and reliable tab movement.
• Comes with a flat rocker switch featuring improved sealing to prevent water entry and a recessed design to prevent breakage.
• Provides an "instant stop" circuit when switches are released, preventing actuator over-run.

Technical Specifications

Specification	Details
Trim Tab Size (L x W)	9" x 24" (23 x 61 cm)
Recommended Boat Length	24' to 37' (7 to 11 M)
Trim Tab Material	Marine grade 6005-T5 Aluminum Alloy
Actuator DC Voltage	12 V
Actuator Stroke Length	2.25" (57 mm)
Actuator Cable Length	23' (7 M)
Actuator Vertical Height	11.875" (302 mm)
Rocker Switch Dimensions (W x H)	3.125" x 3.25" (79.4 x 82.5 mm)
Rocker Switch Mounting Hole Cutout (H x W)	2.25" x 2" (57.5 x 50 mm)
Rocker Switch Operating Voltage	12 or 24 V

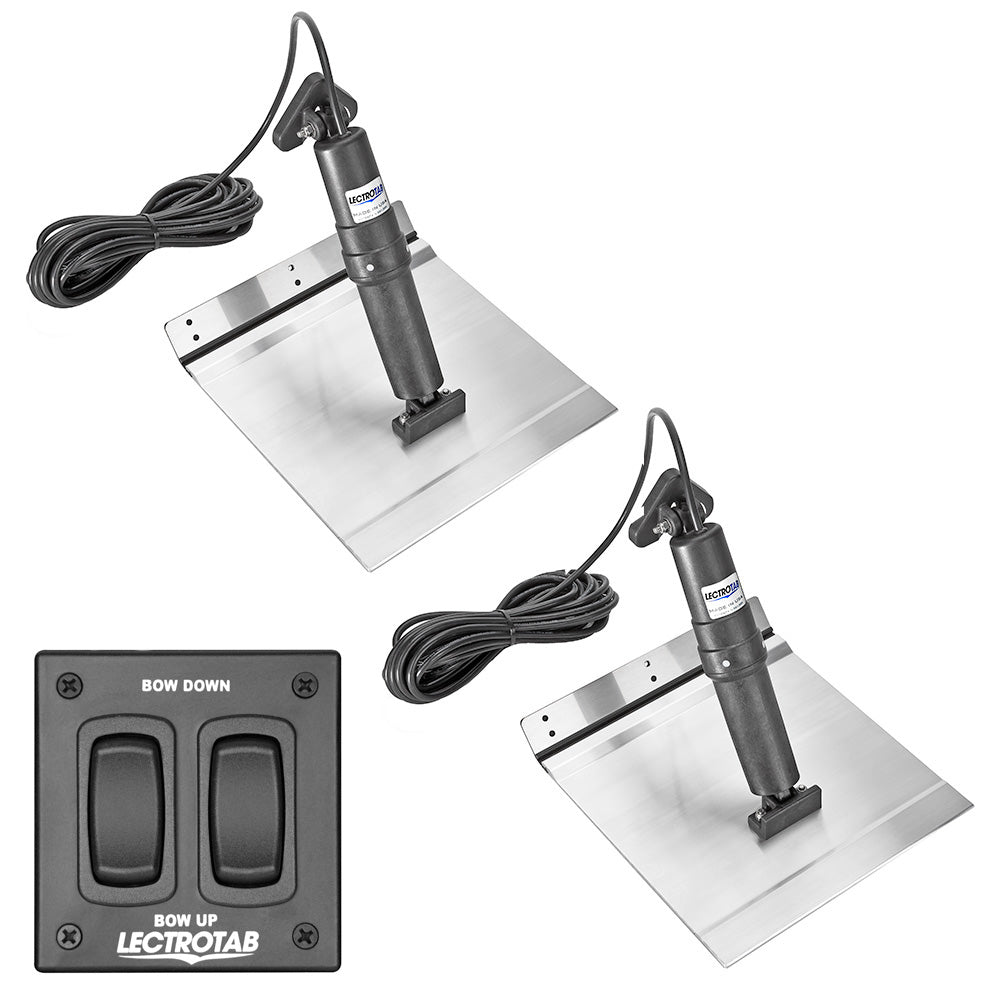

What's in the Box

• One (1) Flat Rocker Switch
• Two (2) Aluminum Alloy Trim Tabs
• Two (2) Actuators with 23' (7 M) Cables
• Instruction Manual

Note: Sold as a Kit

Additional Specifications

• Actuator Type: Electro-Mechanical
• Construction: Aluminum Alloy
• Box Dimensions: 4" H x 5" W x 6" L
• Weight: 20.85 lbs
