Lectrotab XKA Aluminum Alloy Trim Tab Kit w/Rocker Switch - 9 x 12

Enhance your aluminum-hulled boat's performance and durability with the XKA Aluminum Alloy Trim Tab Kit with Rocker Switch. Designed for boats ranging from 16' to 25', this kit offers a robust, maintenance-free solution that ensures precise tab positioning and maximum lift force without the hassle of hydraulic systems.

Superior Build Quality

The Lectrotab Aluminum Alloy trim tabs are meticulously crafted to withstand the harsh marine environment. Constructed from marine-grade 6005-T5 aluminum alloy, these tabs provide the equivalent strength of 10-gauge stainless steel while maintaining a lightweight profile. The "no-break" polypropylene hinge has been rigorously tested over 300,000 cycles, ensuring long-lasting durability and reliable performance.

Advanced Actuator System

Equipped with a precision-engineered electro-mechanical actuator, this trim tab kit guarantees quiet operation and accurate control. The actuator assembly is housed in a non-metallic, permanently sealed casing, preventing corrosion and eliminating the need for internal installation within the boat. Key advantages include:

• Corrosion-free construction
• Maximum lift force with up to 1000 lbs push capacity
• Maintenance-free, non-hydraulic design
• Instant stop feature to prevent actuator over-run

Durable and Corrosion Resistant

All trim tabs are sealed with a corrosion-resistant epoxy coating, ensuring longevity even in the most demanding conditions. The non-metallic external structure resists deterioration from sun exposure and underwater environments, while the upper ram seal is protected from damage caused by fouling or barnacle growth.

User-Friendly Rocker Switch

The new flat rocker switch offers enhanced sealing to prevent water ingress and a recessed design to minimize breakage. Designed for ease of use, the switch provides reliable control over the trim tabs with options for standard or low-profile transom mounting brackets.

Technical Specifications

Specification	Details
Trim Tab Size (L x W)	9" x 12" (23 x 30 cm)
Suitable Boat Length	16' to 25' (5 to 7.5 m)
Material	Marine grade 6005-T5 Aluminum Alloy
Actuator Type	Electro-Mechanical
DC Voltage	12 V
Actuator Stroke Length	2.25" (57 mm)
Actuator Cable Length	23' (7 m)
Actuator Vertical Height	11.875" (302 mm)
Rocker Switch Dimensions (W x H)	3.125" x 3.25" (79.4 x 82.5 mm)
Rocker Switch Mounting Hole Cutout (H x W)	2.25" x 2" (57.5 x 50 mm)
Rocker Switch Operating Voltage	12 or 24 V
Box Dimensions	4"H x 5"W x 6"L
Weight	14.15 lbs

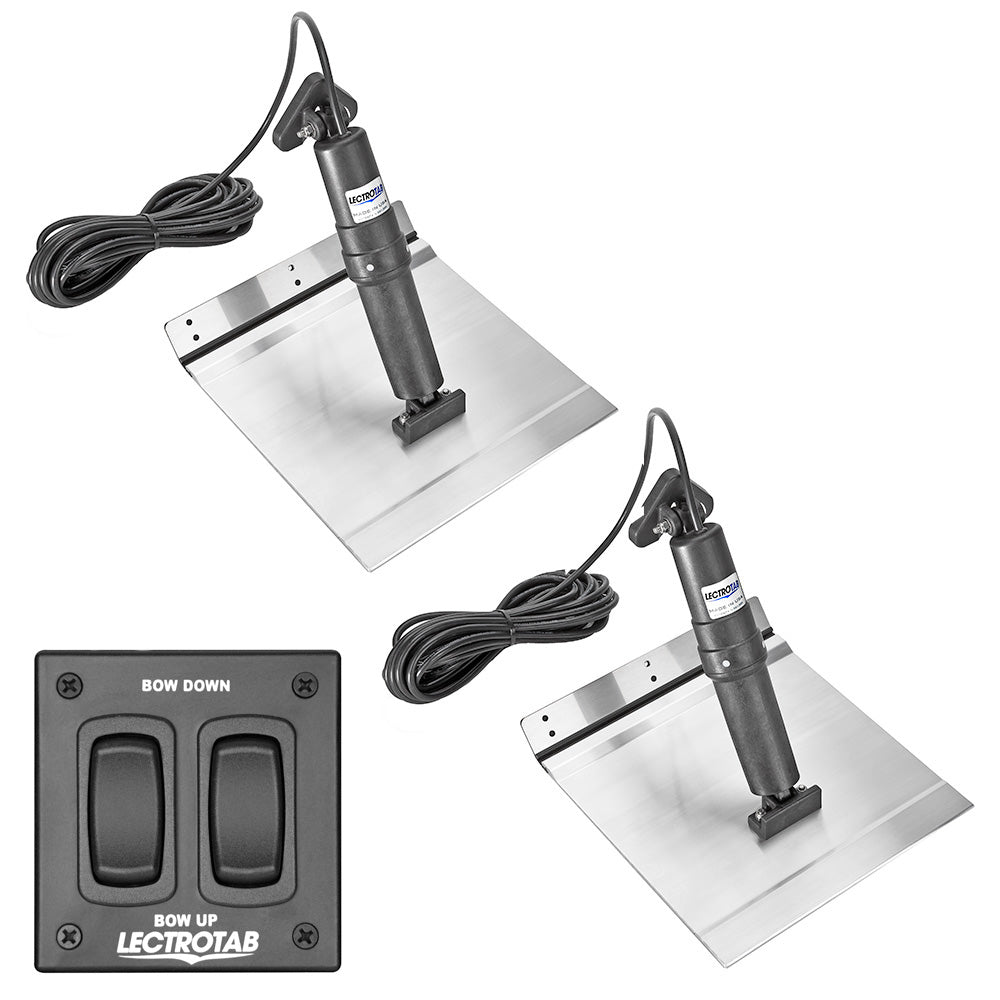

Comprehensive Kit Contents

• One (1) Flat Rocker Switch
• Two (2) Aluminum Alloy Trim Tabs
• Two (2) Actuators with 23' (7 m) Cables
• Instruction Manual

*Sold as a Kit

Additional Features

• Internal pressure equalization system for optimal performance
• Integrated brake system to prevent unwanted tab movement during navigation
• Non-metallic external structure ensures resistance to corrosion and UV damage

Resources

For more detailed information, please refer to the following documents:

• Owner's Manual (PDF)
• Brochure (PDF)
