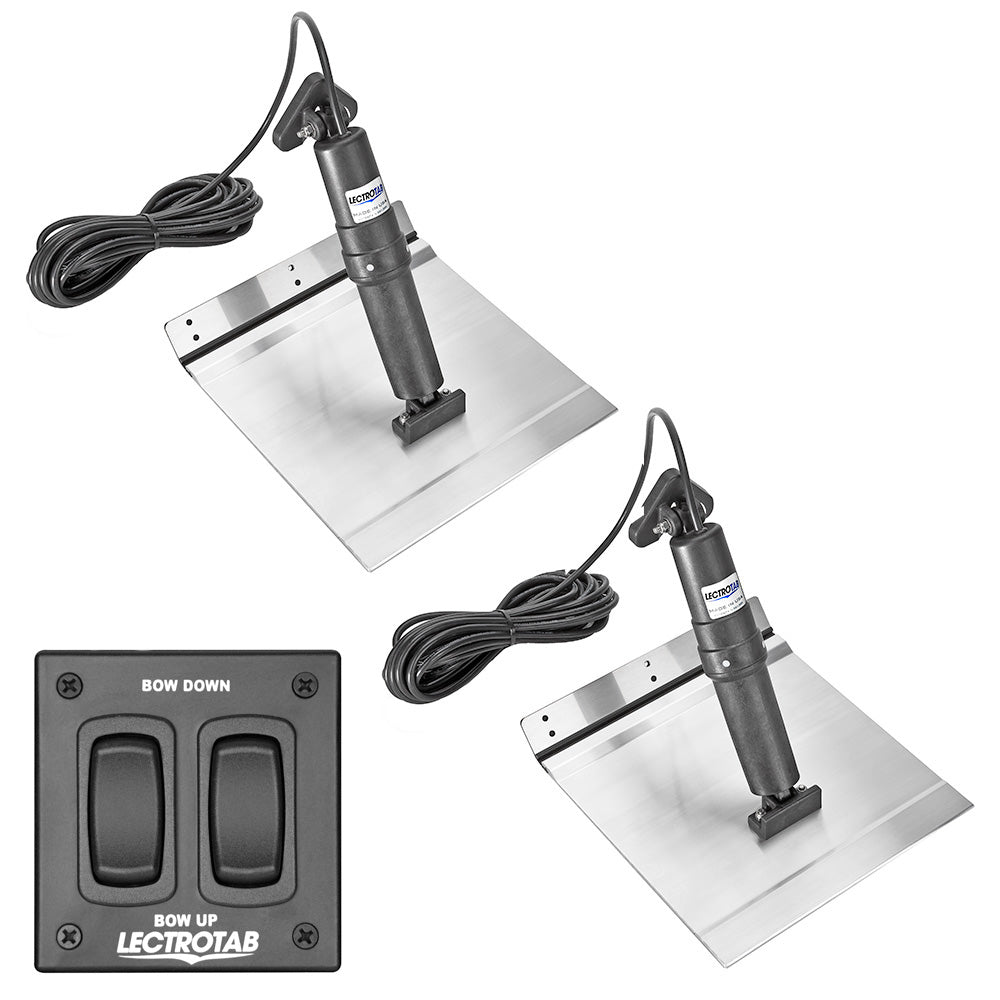

Lectrotab XKA Aluminum Alloy Trim Tab Kit w/Rocker Switch - 12 x 24

Enhance your aluminum-hulled boat's performance and reliability with the XKA Aluminum Alloy Trim Tab Kit with Rocker Switch. Designed for durability and ease of use, this trim tab kit provides precise control and maximum lift force without the maintenance hassles of hydraulic systems.

Product Overview

The XKA Aluminum Alloy Trim Tab Kit is specifically engineered for aluminum-hulled boats, offering an economical and robust solution for optimizing your vessel's handling and stability. Crafted from marine-grade 6005-T5 aluminum alloy, these trim tabs are built to withstand harsh marine environments while ensuring long-lasting performance.

Key Features

• Corrosion-Resistant Coating: All trim tabs are sealed with a durable epoxy coating to prevent corrosion, ensuring longevity and maintaining aesthetic appeal.
• Exceptional Strength: Equivalent to 10 gauge stainless steel, providing reliable support and performance.
• Durable Hinges: "No Break" polypropylene hinges have been tested over 300,000 cycles to a 90° bend without failure.
• Protected Ram Seals: Upper ram seal locations are safeguarded against damage from fouled rams or barnacle growth.
• Pressure Equalization: Utilizes an internal pressure equalization system for smooth operation.
• Internal Brake System: Prevents unwanted tab movement when underway or reversing, enhancing safety and control.
• Quiet Operation: Precision-engineered actuators ensure silent and efficient movement.
• High Load Capacity: Actuators are fully load tested to push up to 1000 lbs of force.
• Non-Metallic Structure: External components are non-metallic to prevent corrosion and deterioration from sun exposure or underwater conditions.

Innovative Rocker Switch

Featuring Lectrotab's newly designed flat rocker switch, this kit offers improved sealing to prevent water ingress and a recessed rocker to avoid breakage. The switch also includes an "instant stop" circuit, ensuring the actuator halts promptly when the switch is released, preventing actuator over-run and enhancing overall safety.

Technical Specifications

Specification	Details
Trim Tab Size (L x W)	12" x 24" (30 x 61 cm)
Boat Length Compatibility	28' to 48' (8.5 to 14.5 m)
Material	Marine grade 6005-T5 Aluminum Alloy
Actuator DC Voltage	12 V
Actuator Stroke Length	2.25" (57 mm)
Actuator Cable Length	23' (7 m)
Actuator Vertical Height	11.875" (302 mm)
Rocker Switch Dimensions (W x H)	3.125" x 3.25" (79.4 x 82.5 mm)
Rocker Switch Mounting Hole Cutout (H x W)	2.25" x 2" (57.5 x 50 mm)
Rocker Switch Operating Voltage	12 or 24 V

Package Contents

• One (1) Flat Rocker Switch
• Two (2) Aluminum Alloy Trim Tabs
• Two (2) Actuators with 23' (7 m) Cables
• Instruction Manual

Sold as a Kit

Additional Specifications

• Actuator Type: Electro-Mechanical
• Construction: Aluminum Alloy
• Box Dimensions: 4"H x 5"W x 6"L
• Weight: 23.95 lbs

Resources

Owner's Manual (PDF)

Brochure (PDF)
