Lectrotab XKA Aluminum Alloy Trim Tab Kit w/One-Touch Control - 9 x 9

The XKA Aluminum Alloy Trim Tab Kit with One-Touch Control is engineered for aluminum-hulled boats, providing an economical and reliable solution to enhance your vessel's performance. Crafted with durable materials and advanced design, this trim tab kit ensures smooth, maintenance-free operation while delivering precise control and maximum lift force.

Product Overview

The Lectrotab Aluminum Alloy Trim Tab Kit is specifically designed to cater to the unique requirements of aluminum-hulled boats. Utilizing a robust "no-break" polypropylene hinge and a corrosion-resistant epoxy coating, these trim tabs offer unparalleled strength and longevity. The precision-engineered actuator ensures quiet operation and accurate tab positioning without the need for hydraulic systems, making installation straightforward and hassle-free.

Key Features

• All trim tabs are sealed with a corrosion-resistant epoxy coating, ensuring durability in marine environments.
• Equivalent strength to 10 gauge stainless steel, providing robust performance.
• "No Break" polypropylene hinge tested over 300,000 cycles to a 90° bend without failure.
• Upper ram seal location is protected against damage from fouled ram or barnacle growth.
• Internal pressure equalization system enhances reliability and performance.
• Internal brake system prevents unwanted tab movement during navigation or reversing.
• Quiet, smooth operation for an enhanced boating experience.
• Actuators are fully load tested to deliver up to 1000 lbs of force.
• Non-metallic external structure resists corrosion and resists deterioration from sun and water exposure.

Technical Specifications

Specification	Details
Trim Tab Size (L x W)	9" x 9" (23 x 23 cm)
Suitable Boat Length	14' to 19' (4 to 6 meters)
Trim Tab Material	Marine grade 6005-T5 Aluminum Alloy
Actuator DC Voltage	12 V
Actuator Stroke Length	2.25" (57 mm)
Actuator Cable Length	23' (7 meters)
Actuator Vertical Height	11.875" (302 mm)
Rocker Switch Dimensions (W x H)	3" x 3" (77 x 77 mm)
Rocker Switch Mounting Hole Cutout (H x W)	2.25" x 2.5" (57 x 64 mm)
Rocker Switch Operating Voltage	12 or 24 V

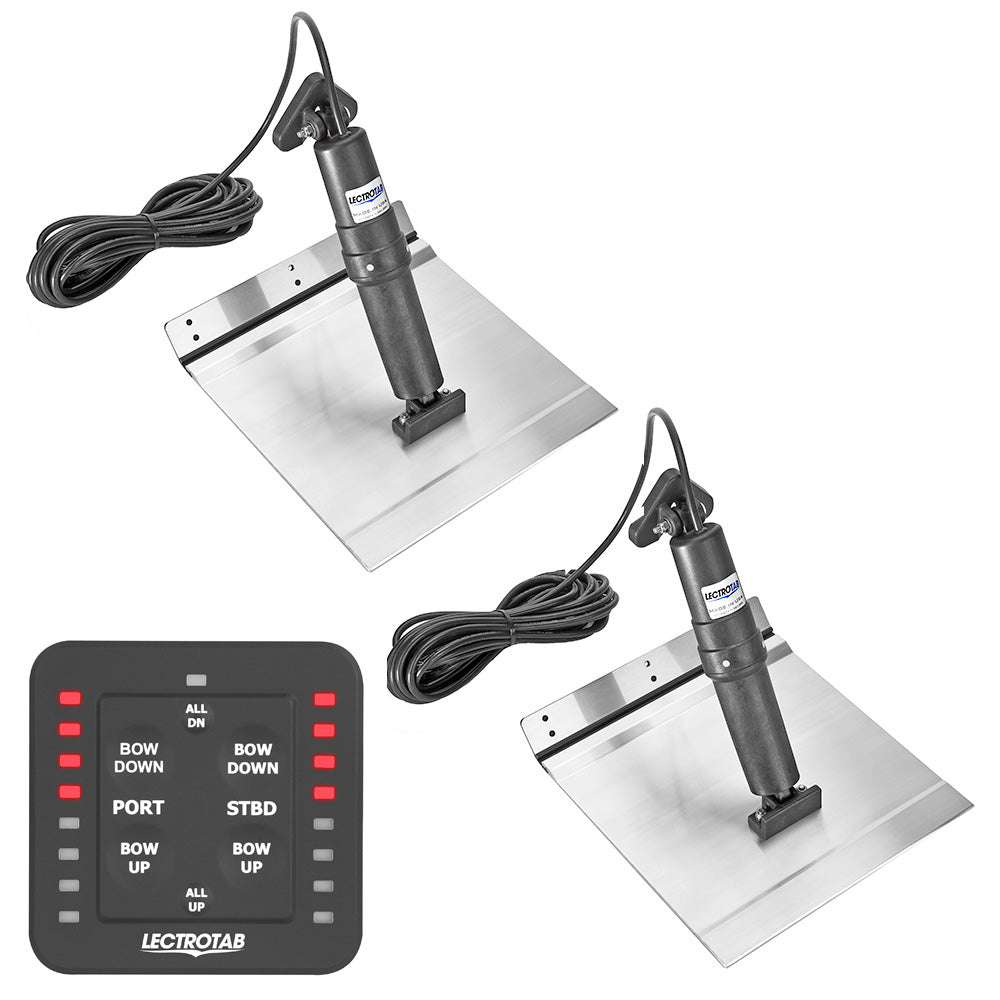

What's in the Box

• One (1) One-Touch Control unit
• Two (2) Aluminum Alloy trim tabs
• Two (2) Actuators with 23' (7 meters) cables
• Comprehensive Instruction Manual

*Sold as a Kit

Additional Specifications

• Actuator Type: Electro-Mechanical
• Construction Material: Aluminum Alloy
• Box Dimensions: 2"H x 5"W x 6"L
• Weight: 12.95 lbs

Resources

• Owner's Manual (PDF)
• Brochure (PDF)
