Lectrotab XKA Aluminum Alloy Trim Tab Kit w/One-Touch Control - 9 x 24

The XKA Aluminum Alloy Trim Tab Kit with One-Touch Control is designed specifically for aluminum-hulled boats, offering an economical and durable solution to enhance your boating experience. Crafted with high-quality materials and innovative engineering, this kit ensures reliable performance and easy installation, making it a perfect addition to boats ranging from 24 to 37 feet.

Key Features

• All trim tabs are sealed with a corrosion-resistant epoxy coating, ensuring longevity and durability in marine environments.
• Constructed with marine-grade 6005-T5 aluminum alloy, offering strength equivalent to 10 gauge stainless steel.
• Enhanced "no-break" polypropylene hinge tested for over 300,000 cycles to a 90° bend without failure.
• Upper ram seal is protected against damage from fouled rams or barnacle growth.
• Integrated pressure equalization system for optimal performance.
• Internal brake system prevents unwanted tab movement while underway or reversing.
• Quiet, non-hydraulic operation ensures a maintenance-free experience.
• Actuators are fully load tested to deliver up to 1000 lbs of force.
• Non-metallic external structure resists corrosion and withstands exposure to sun and water.

One-Touch Control System

Experience effortless control with Lectrotab's One-Touch leveling LED control system. This user-friendly interface allows you to adjust your trim tabs with the simple press of a button, providing precise tab positioning and maximum lift force without the hassle of hydraulic systems.

Technical Specifications

Feature	Specification
Trim Tab Size (L x W)	9" x 24" (23 x 61 cm)
Suitable Boat Length	24' to 37' (7 to 11 m)
Trim Tab Material	Marine grade 6005-T5 Aluminum Alloy
Actuator Type	Electro-Mechanical
DC Voltage	12 V
Actuator Stroke Length	2.25" (57 mm)
Actuator Cable Length	23' (7 m)
Actuator Vertical Height	11.875" (302 mm)
Rocker Switch Dimensions (W x H)	3" x 3" (77 x 77 mm)
Rocker Switch Mounting Hole Cutout (H x W)	2.25" x 2.5" (57 x 64 mm)
Rocker Switch Operating Voltage	12 or 24 V
Construction	Aluminum Alloy
Box Dimensions	2"H x 5"W x 6"L
Weight	20.75 lbs

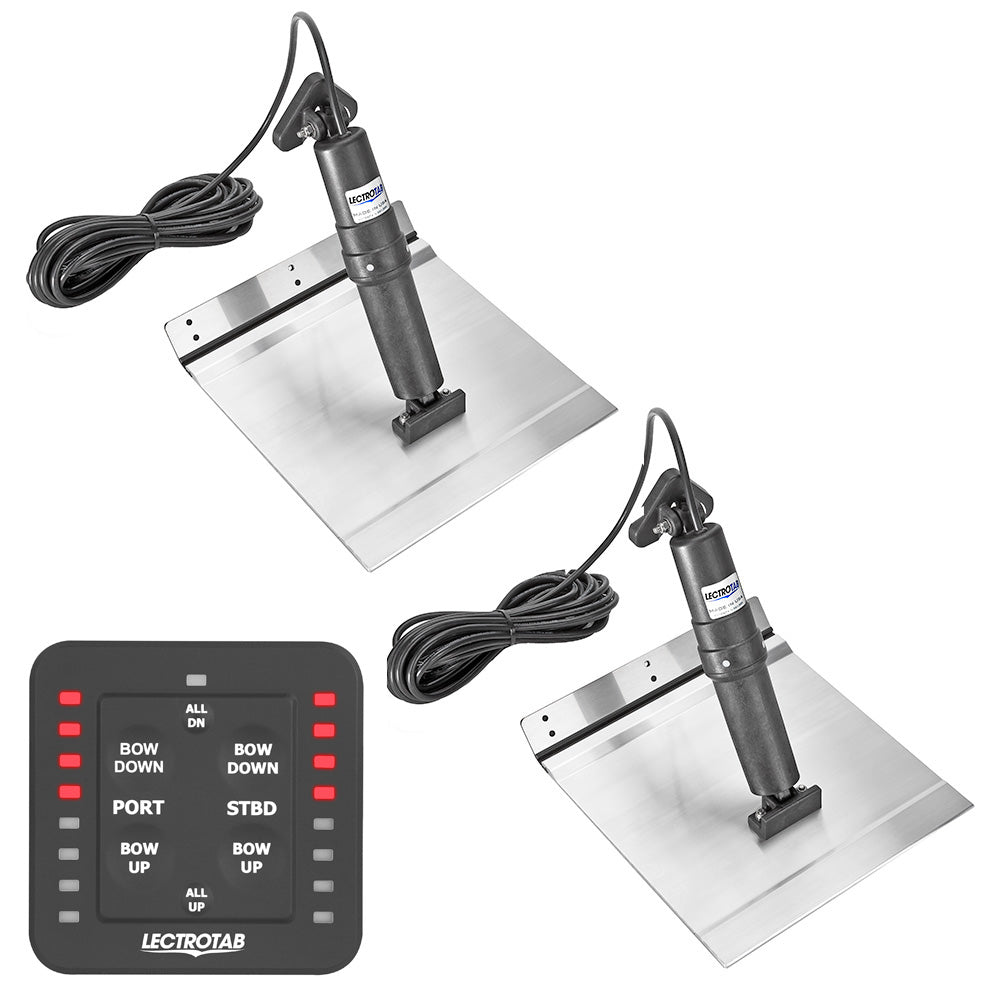

What’s Included

• One (1) One-Touch Control Unit
• Two (2) Aluminum Alloy Trim Tabs
• Two (2) Actuators with 23' (7 m) Cables
• Comprehensive Instruction Manual

Note: Sold as a Kit

Additional Specifications

• Actuator Type: Electro-Mechanical
• Construction: Aluminum Alloy
• Box Dimensions: 2"H x 5"W x 6"L
• Weight: 20.75 lbs

Resources

• Owner's Manual (PDF)
• Brochure (PDF)
