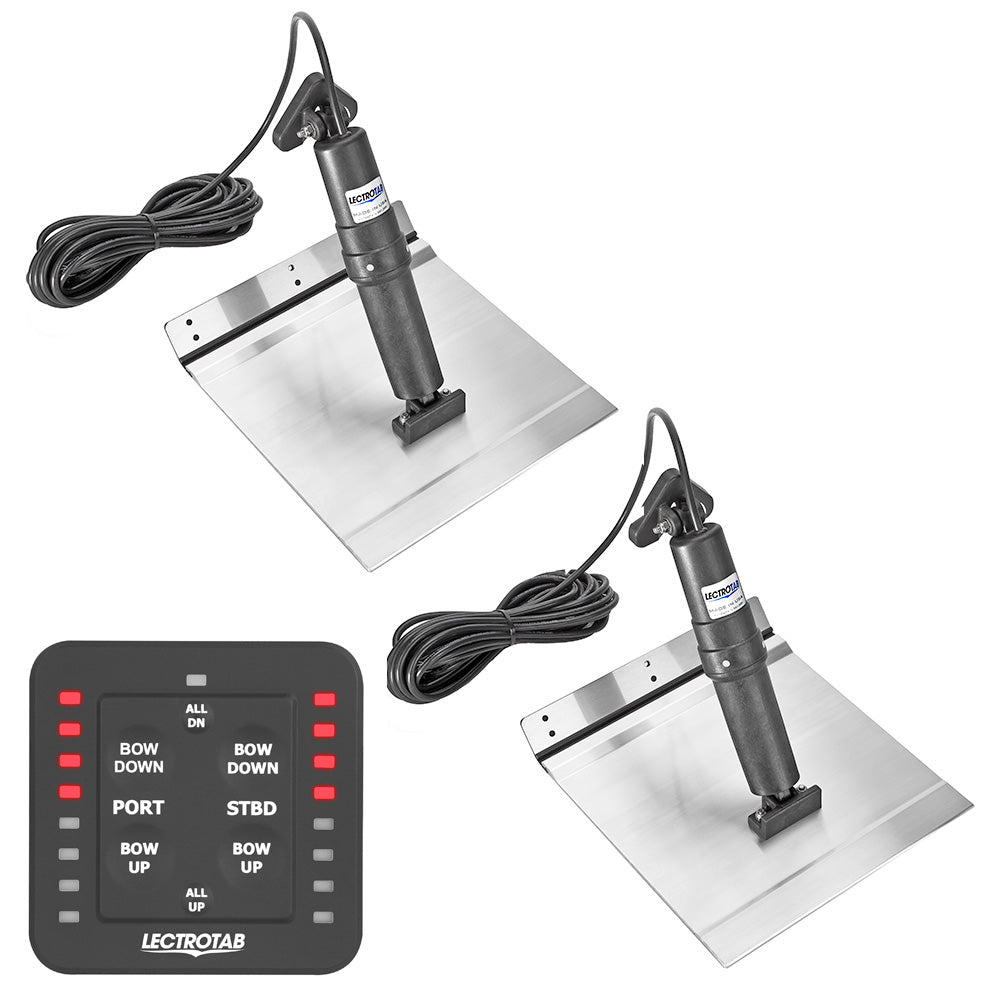

Lectrotab XKA Aluminum Alloy Trim Tab Kit w/One-Touch Control - 9 x 18

The XKA Aluminum Alloy Trim Tab Kit with One-Touch Control is engineered for superior performance on aluminum-hulled boats. This kit offers a robust, maintenance-free solution for enhancing your vessel's handling and stability, ensuring a smooth and efficient boating experience.

Product Overview

The Lectrotab Aluminum Alloy trim tabs are specifically designed to accommodate aluminum hulls, providing an economical and durable option for a wide range of boats. Crafted with a "no-break" polypropylene hinge, these trim tabs offer exceptional strength and longevity. The corrosion-resistant epoxy coating ensures that the tabs withstand harsh marine environments, maintaining their performance and appearance over time.

Featuring a precision-engineered actuator, the kit delivers quiet operation without the need for hydraulic systems, eliminating the risk of oil leaks. The fully self-contained actuator unit is housed in a non-metallic, permanently sealed casing, simplifying installation by keeping all components outside the boat. With accurate tab positioning and maximum lift force, the XKA Trim Tab Kit ensures reliable performance in various boating conditions.

Lectrotab's innovative one-touch leveling LED control provides effortless management of your trim tabs, giving you complete control at your fingertips.

Features

• Corrosion-resistant epoxy coating seals all tabs
• Equivalent strength to 10-gauge stainless steel
• "No Break" polypropylene hinge tested for over 300,000 cycles to a 90° bend without failure
• Upper ram seal design prevents damage from fouled rams or barnacle growth
• Internal pressure equalization system enhances durability
• Integrated brake system prevents unwanted tab movement during navigation or reverse maneuvers
• Quiet and smooth operation
• Actuators are fully load tested to provide up to 1000 lbs of force
• Non-metallic external structure resists corrosion and UV degradation

Technical Specifications

Specification	Details
Trim Tab Size (L x W)	9" x 18" (23 x 46 cm)
Suitable Boat Length	21' to 30' (6.5 to 9 m)
Material	Marine grade 6005-T5 Aluminum Alloy
Actuator DC Voltage	12 V
Actuator Stroke Length	2.25" (57 mm)
Actuator Cable Length	23' (7 m)
Actuator Vertical Height	11.875" (302 mm)
Rocker Switch Dimensions (W x H)	3" x 3" (77 x 77 mm)
Rocker Switch Mounting Hole Cutout (H x W)	2.25" x 2.5" (57 x 64 mm)
Rocker Switch Operating Voltage	12 or 24 V

What's Included

• One (1) One-Touch Control
• Two (2) Aluminum Alloy Trim Tabs
• Two (2) Actuators with 23' (7 m) Cables
• Instruction Manual

*Sold as a Kit

Additional Specifications

• Actuator Type: Electro-Mechanical
• Construction: Aluminum Alloy
• Box Dimensions: 2" H x 5" W x 6" L
• Weight: 17.75 lbs

Resources

• Owner's Manual (PDF)
• Brochure (PDF)
