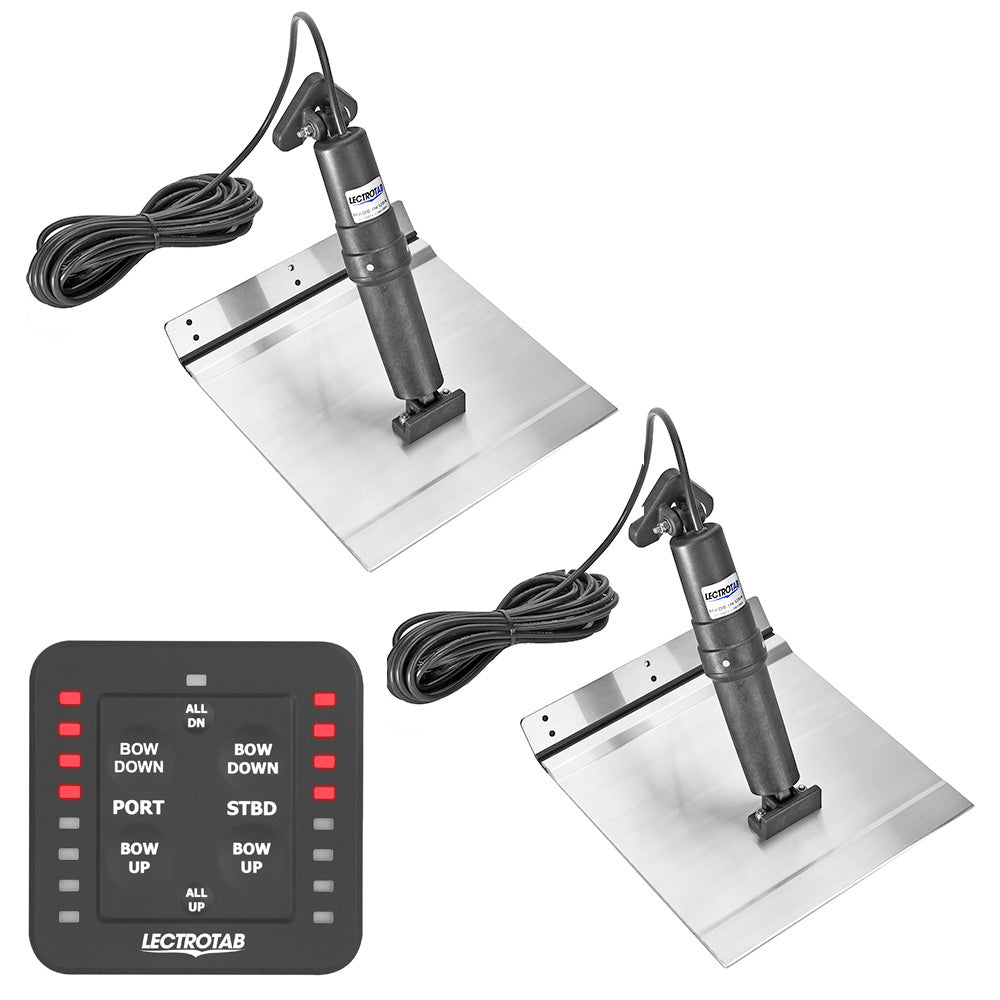

Lectrotab XKA Aluminum Alloy Trim Tab Kit w/One-Touch Control - 9 x 12

Upgrade your aluminum-hulled boat with the XKA Aluminum Alloy Trim Tab Kit featuring One-Touch Control. Engineered for durability and precise performance, this trim tab kit enhances your vessel's stability and handling, making it an essential addition for any boating enthusiast.

Unmatched Durability and Corrosion Resistance

The XKA Trim Tabs are constructed from marine-grade 6005-T5 Aluminum Alloy, offering strength equivalent to 10 gauge stainless steel without the added weight. Each tab is sealed with a corrosion-resistant epoxy coating, ensuring longevity and reliable performance in harsh marine environments.

Reliable and Low-Maintenance Operation

Featuring an advanced "no-break" polypropylene hinge, our trim tabs have been rigorously tested for over 300,000 cycles to a 90° bend without failure. The precision-engineered electro-mechanical actuators provide a quiet, maintenance-free operation, eliminating the common issues associated with hydraulic systems, such as oil leaks.

Precision Control and Easy Installation

The internal pressure equalization system and built-in brake ensure precise tab positioning and maximum lift force. With actuators fully load tested to push 1000 lbs of force, adjusting your trim tabs is seamless. The non-metallic, permanently sealed actuator housing simplifies installation, requiring no components to be mounted inside the boat.

One-Touch LED Control

Take full control of your trim tabs with Lectrotab's intuitive one-touch leveling LED control. Effortlessly adjust your trim settings to suit varying water conditions, enhancing your boating experience with minimal effort.

Key Features

• Marine-grade 6005-T5 Aluminum Alloy construction
• Corrosion-resistant epoxy-coated tabs
• Equivalent strength to 10 gauge stainless steel
• "No Break" polypropylene hinge tested for over 300,000 cycles
• Internal pressure equalization system for stability
• Built-in brake system to prevent unwanted movement
• Quiet, maintenance-free electro-mechanical actuators
• Actuators load tested to push 1000 lbs of force
• Non-metallic, corrosion-proof external structure

Technical Specifications

Trim Tab Size (L x W)	9" x 12" (23 x 30 cm)
Suitable Boat Length	16' to 25' (5 to 7.5 meters)
Material	Marine-grade 6005-T5 Aluminum Alloy
Actuator DC Voltage	12 V
Actuator Stroke Length	2.25" (57 mm)
Actuator Cable Length	23' (7 m)
Actuator Vertical Height	11.875" (302 mm)
Rocker Switch Dimensions (W x H)	3" x 3" (77 x 77 mm)
Rocker Switch Mounting Hole Cutout (H x W)	2.25" x 2.5" (57 to 64 mm)
Rocker Switch Operating Voltage	12 or 24 V

What's Included

• One (1) One-Touch Control unit
• Two (2) Aluminum Alloy trim tabs
• Two (2) actuators with 23' (7 m) cables
• Comprehensive instruction manual

*Sold as a Kit

Additional Specifications

• Actuator Type: Electro-Mechanical
• Construction: Aluminum Alloy
• Package Dimensions: 2"H x 5"W x 6"L
• Weight: 14.05 lbs

Owner's Manual (PDF)

Brochure (PDF)
