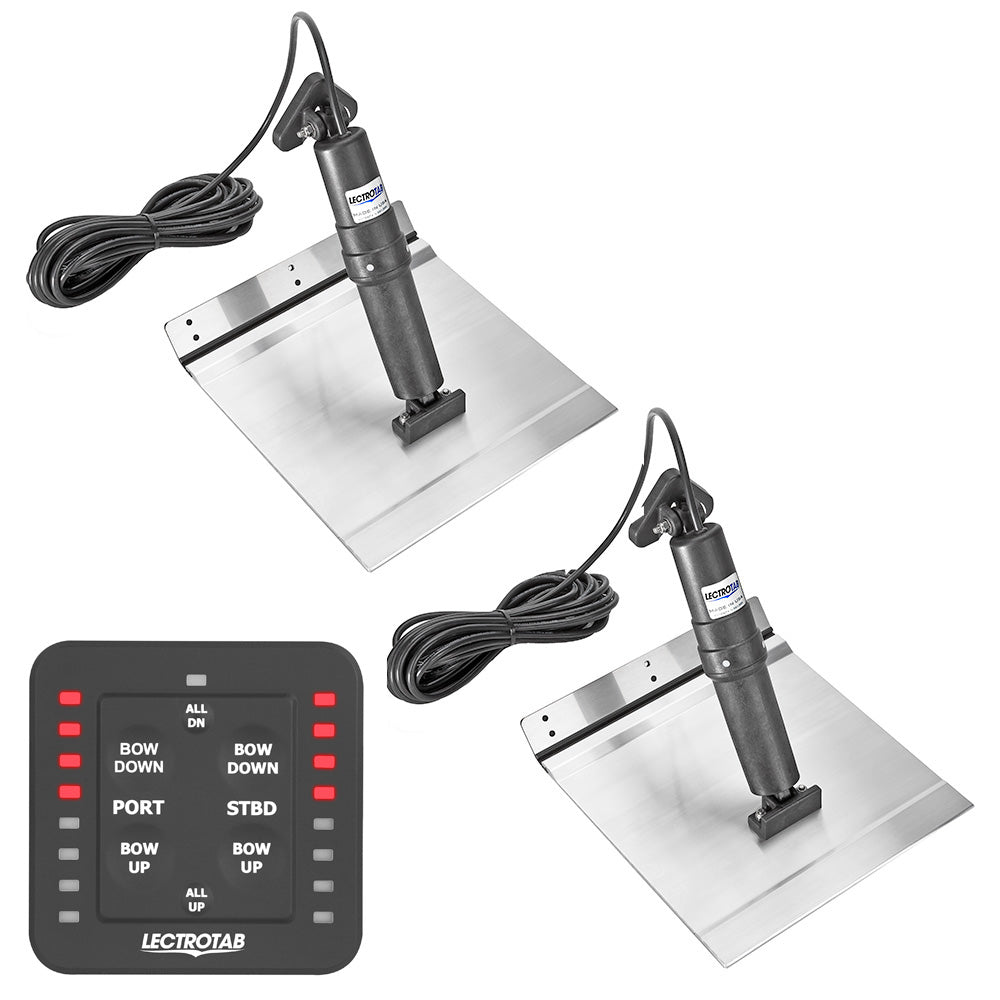

Lectrotab XKA Aluminum Alloy Trim Tab Kit w/One-Touch Control - 12 x 9

The XKA Aluminum Alloy Trim Tab Kit with One-Touch Control is the perfect upgrade for aluminum-hulled boats, offering superior performance and durability. Engineered for effortless leveling and precise maneuvering, this kit ensures your boat maintains optimal trim in various conditions without the hassle of hydraulic systems.

Why Choose the XKA Aluminum Alloy Trim Tab Kit?

Designed specifically for aluminum boats, the XKA Trim Tab Kit combines robust construction with advanced technology. The high-strength aluminum alloy trim tabs feature a "no-break" polypropylene hinge that withstands over 300,000 cycles. Sealed with a corrosion-resistant epoxy coating, these trim tabs are built to endure harsh marine environments.

Advanced One-Touch Control System

Experience seamless control with the Lectrotab One-Touch LED control system. This precision-engineered actuator offers quiet, maintenance-free operation, ensuring accurate tab positioning and maximum lift force. The non-metallic housing protects the actuator assembly from corrosion, making installation straightforward without the need for internal boat modifications.

Key Features

• Durable Construction: Marine-grade 6005-T5 aluminum alloy ensures long-lasting performance.
• Corrosion Resistant: All tabs are sealed with a corrosion-resistant epoxy coating.
• High Strength: Equivalent to 10 gauge stainless steel for reliable support.
• Reliable Hinges: "No Break" polypropylene hinges tested for over 300,000 cycles.
• Protective Sealing: Upper ram seals are immune to damage from fouled rams or barnacle growth.
• Pressure Equalization: Internal system ensures balanced operation.
• Safety Brake: Internal brake system prevents unintended tab movement during operation.
• Quiet Operation: Minimizes noise for a more enjoyable boating experience.
• Powerful Actuators: Each actuator is load-tested to push 1000 lbs of force.
• Non-Metallic Structure: Resists corrosion and withstands sun and water exposure.

Technical Specifications

Specification	Details
Trim Tab Size (L x W)	12" x 9" (30 x 23 cm)
Boat Length Compatibility	18' to 29' (5.5 to 8.5 m)
Material	Marine grade 6005-T5 Aluminum Alloy
Actuator DC Voltage	12 V
Actuator Stroke Length	2.25" (57 mm)
Actuator Cable Length	23' (7 m)
Actuator Vertical Height	11.875" (302 mm)
Rocker Switch Dimensions (W x H)	3" x 3" (77 x 77 mm)
Rocker Switch Mounting Hole Cutout (H x W)	2.25" x 2.5" (57 to 64 mm)
Rocker Switch Operating Voltage	12 or 24 V

What’s Included

• One (1) One-Touch Control Unit
• Two (2) Aluminum Alloy Trim Tabs
• Two (2) Actuators with 23' (7 m) Cables
• Comprehensive Instruction Manual

*Sold as a Kit

Additional Specifications

• Actuator Type: Electro-Mechanical
• Construction: Aluminum Alloy
• Box Dimensions: 2"H x 5"W x 6"L
• Weight: 14.25 lbs

Resources

For more detailed information, download the following documents:

• Owner's Manual (PDF)
• Brochure (PDF)
